Frame Plugs with Countersunk Screw Fischer DuoXpand 10x230 T, 50 pcs.

Frame Plugs with Countersunk Screw Fischer DuoXpand 10x230 T, 50 pcs. — image 3

Frame Plugs with Countersunk Screw Fischer DuoXpand 10x230 T, 50 pcs. — image 4

Price: 178.80 €

Products ID:	185055
Manufactured by:	Fischer
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	4048962440232

Delivery options to:

Latvia

Office pickup

Free

Estimated: 29.09.–09.10.

Parcel-machine delivery

Free

Estimated: 01.10.–13.10.

Courier delivery

4.90 €

Estimated: 01.10.–13.10.

Frame Plugs with Countersunk Screw Fischer DuoXpand 10x230 T, 50 pcs.

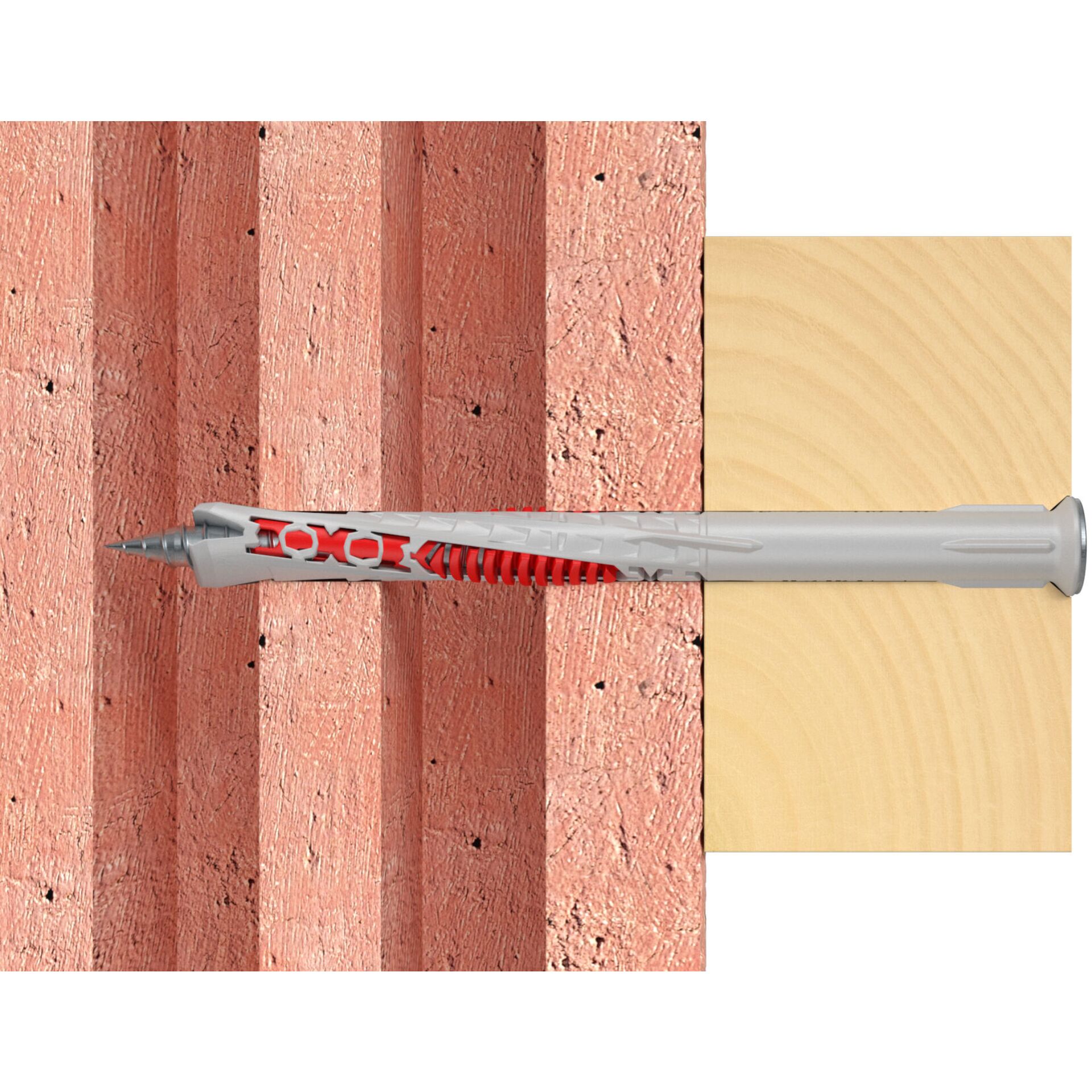

The Fischer DuoXpand 10x230 T is a versatile long shank plug featuring a preassembled countersunk safety screw. Its special lamella geometry expands gently in building materials, preventing fractures in porous substrates and enabling secure anchoring close to edges.

Key Features

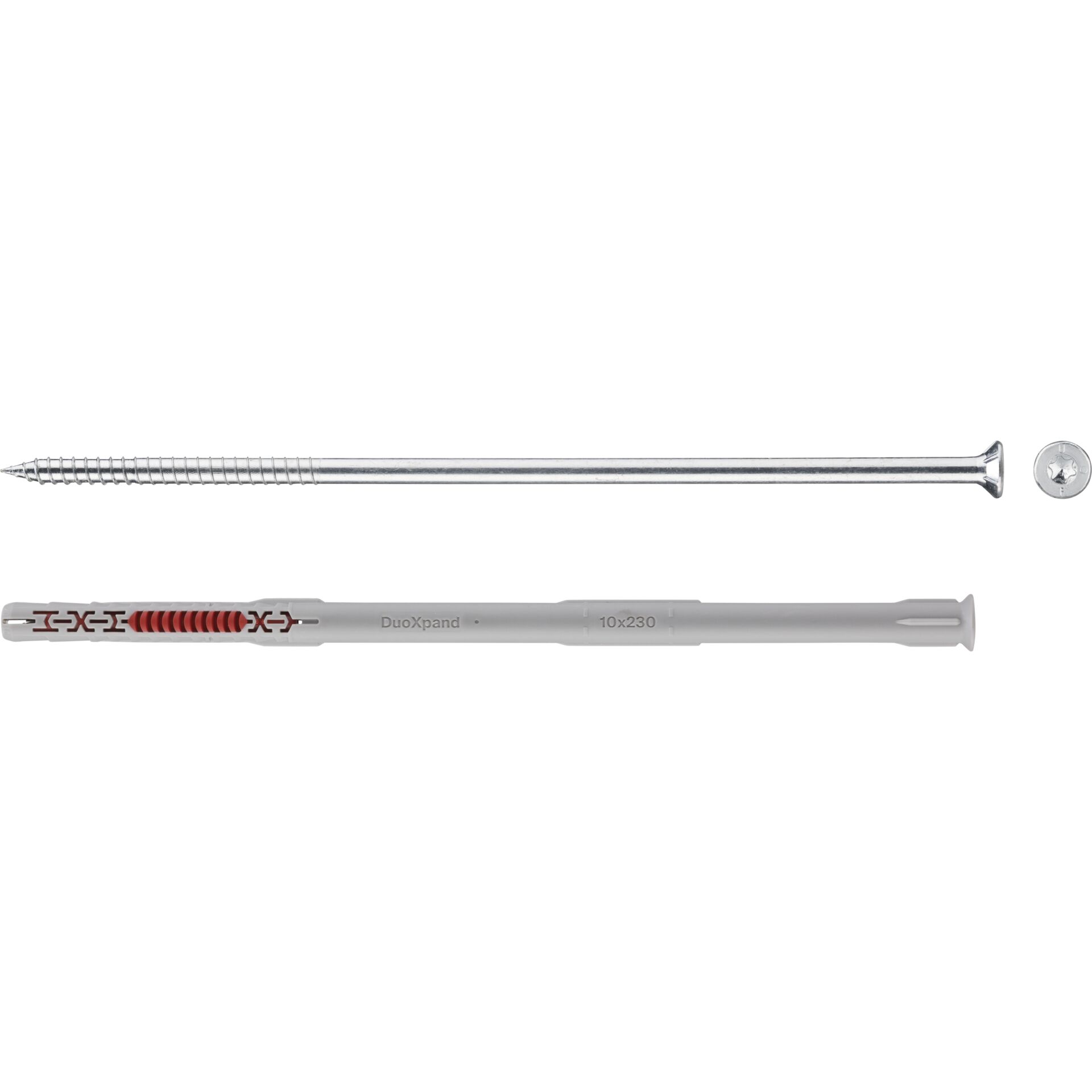

Supplied with a preassembled safety screw featuring a TX40 drive

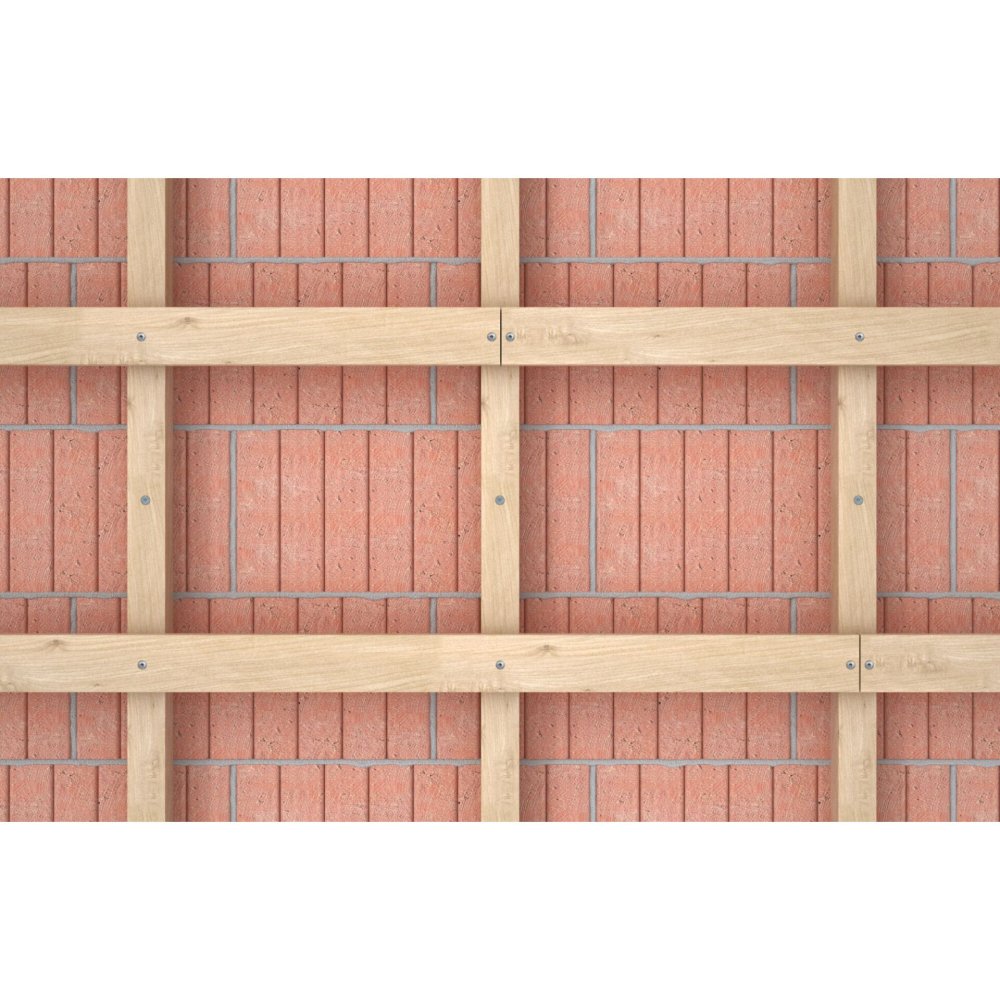

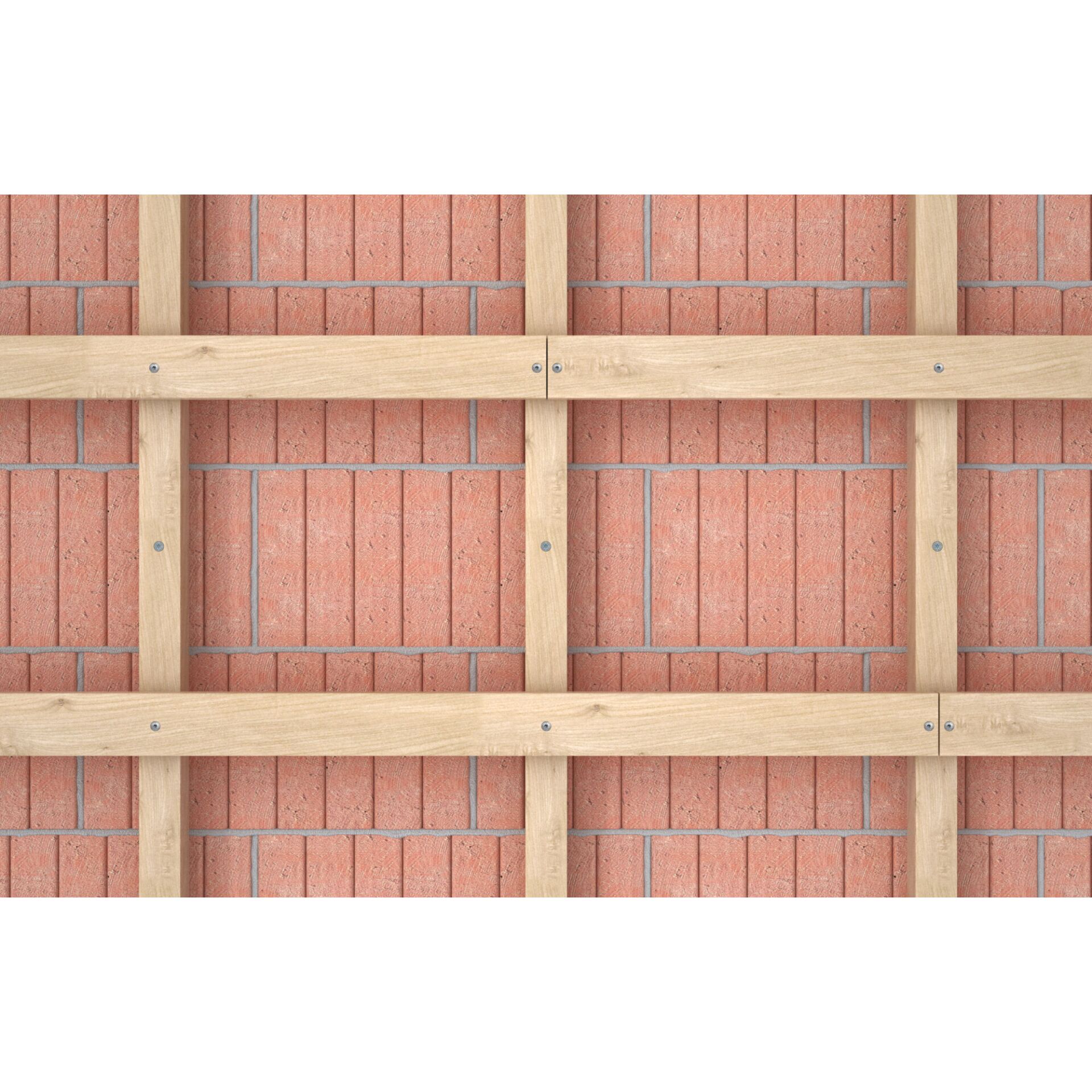

Suitable for facade, ceiling, and roof substructures made of wood or metal

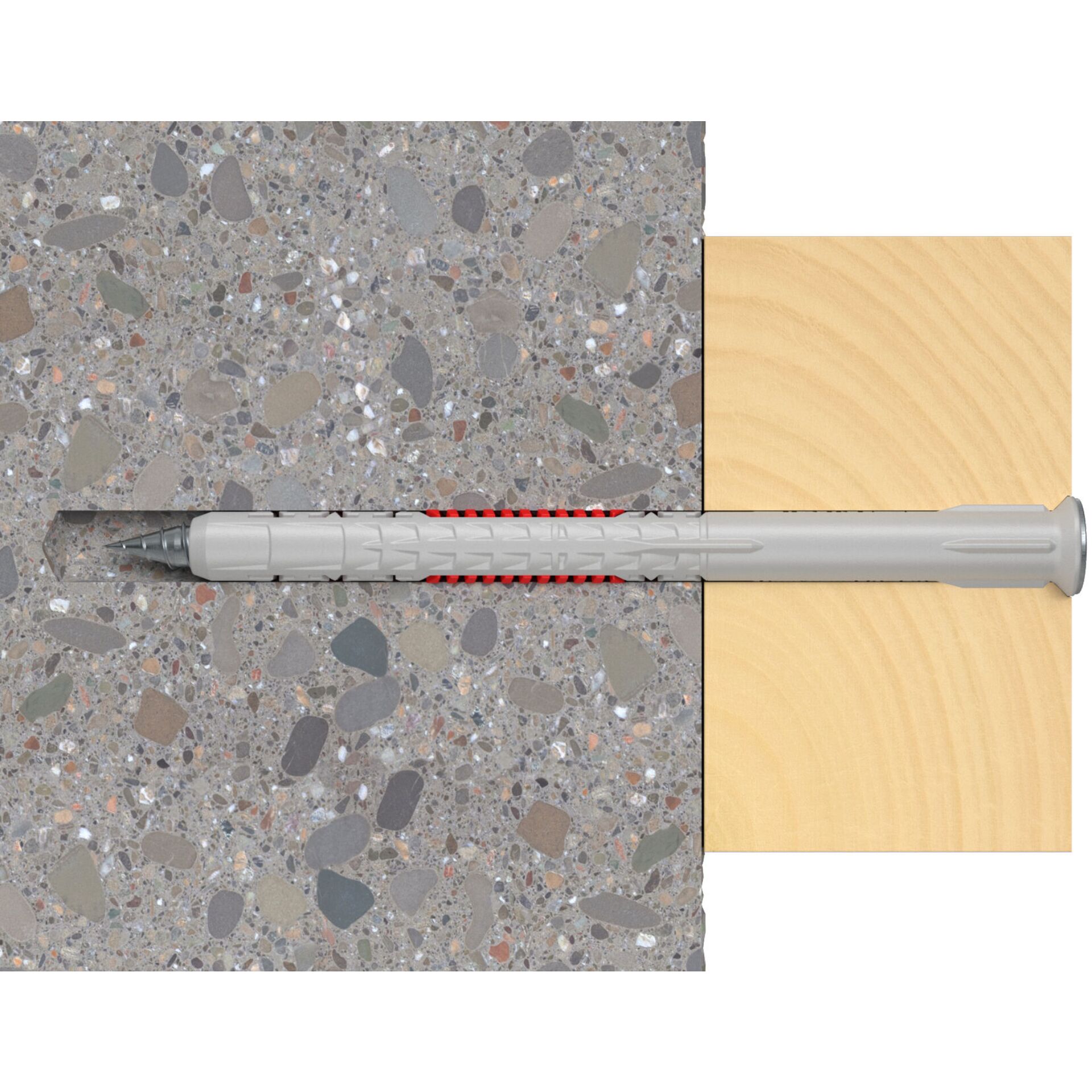

Engineered for use in concrete, solid and perforated bricks, aerated concrete, and stone
Lamella design ensures reliable hold across diverse building materials

Drive	TX40
Quantity	50 pieces
Plug length	230 mm
Material	Nylon
Colour	Red / grey
Screw type	Preassembled countersunk safety screw
Drill core diameter	10 mm
Effective length for anchorage depth 50 mm	180 mm
Effective length for anchorage depth 70 mm	160 mm
Effective length for anchorage depth 140 mm	90 mm
Effective length for anchorage depth 160 mm	70 mm
Minimum borehole depth	50 mm
Field of application	Universal
Type	Plug

What screw drive size is required for these plugs?

The preassembled safety screw uses a standard TX40 drive.

Which building materials are suitable for Fischer DuoXpand?

They are suitable for concrete, solid and perforated bricks, aerated concrete, lightweight concrete hollow blocks, dense natural stone, and solid gypsum plates.
