Fischer DuoXpand 8x80 FUS Frame Plug with Screw, 50 pcs
Price: 49.40 €
| Products ID: | 185081 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962440133 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 29.09.–09.10.
Parcel-machine delivery
Free
Estimated: 01.10.–13.10.
Courier delivery
4.90 €
Estimated: 01.10.–13.10.

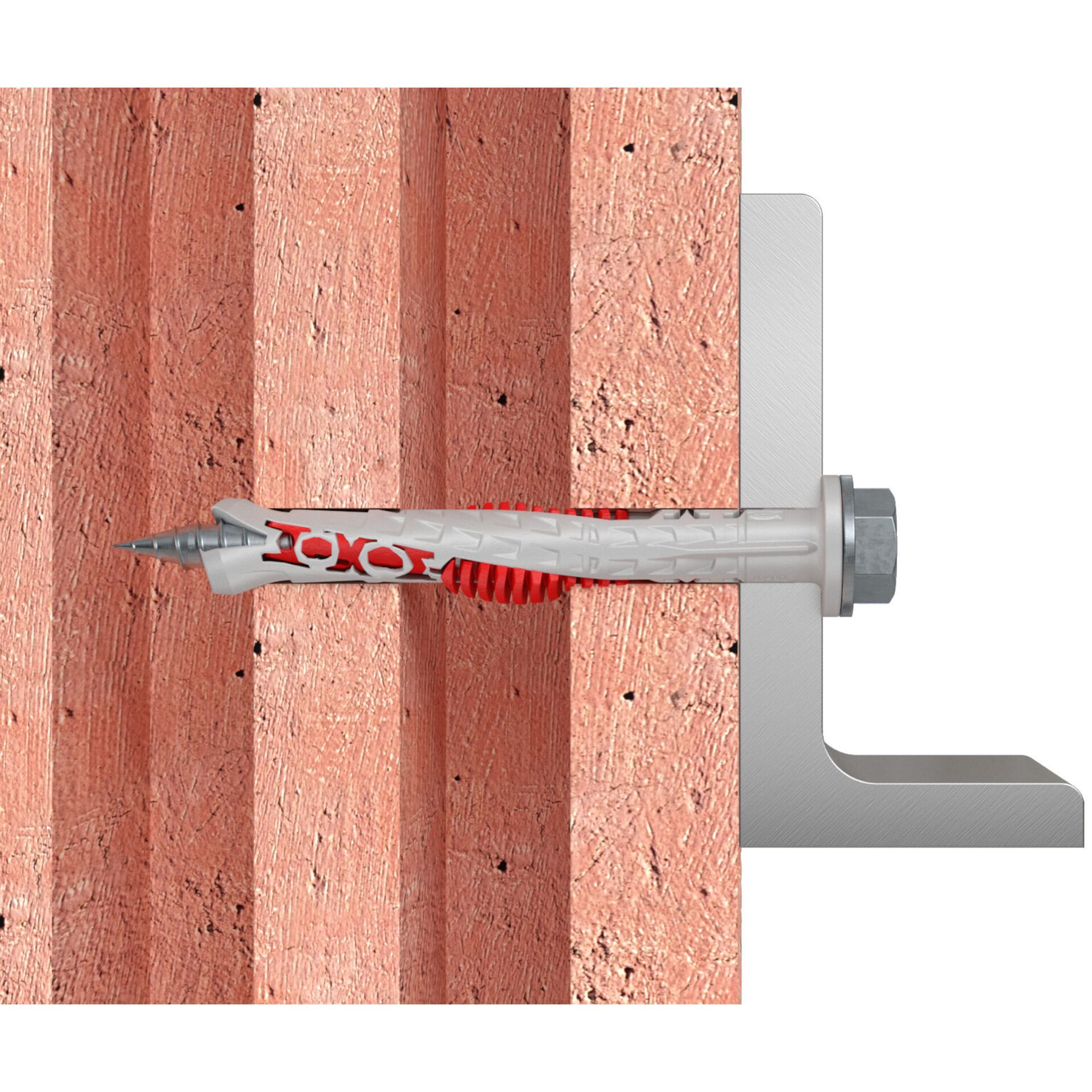

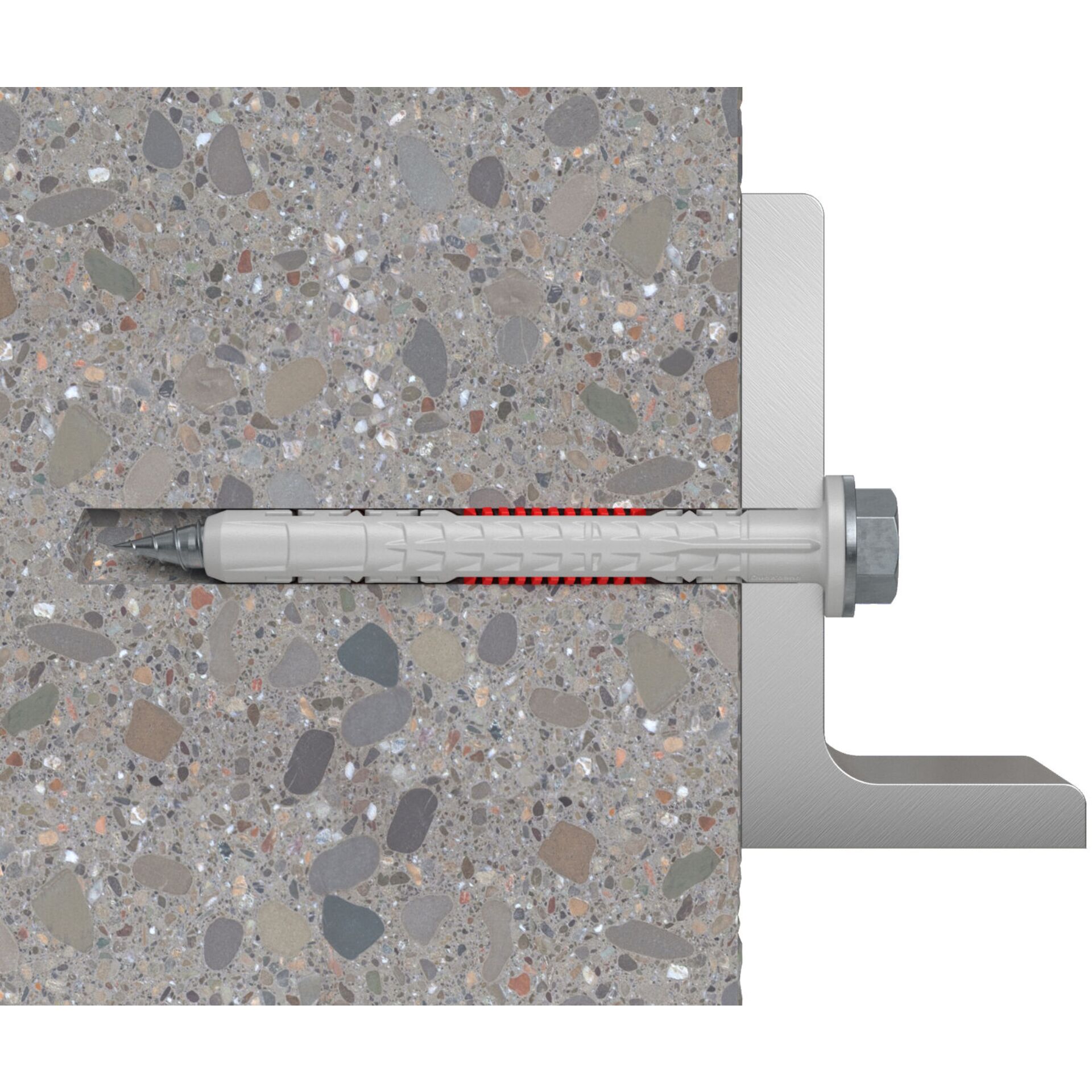

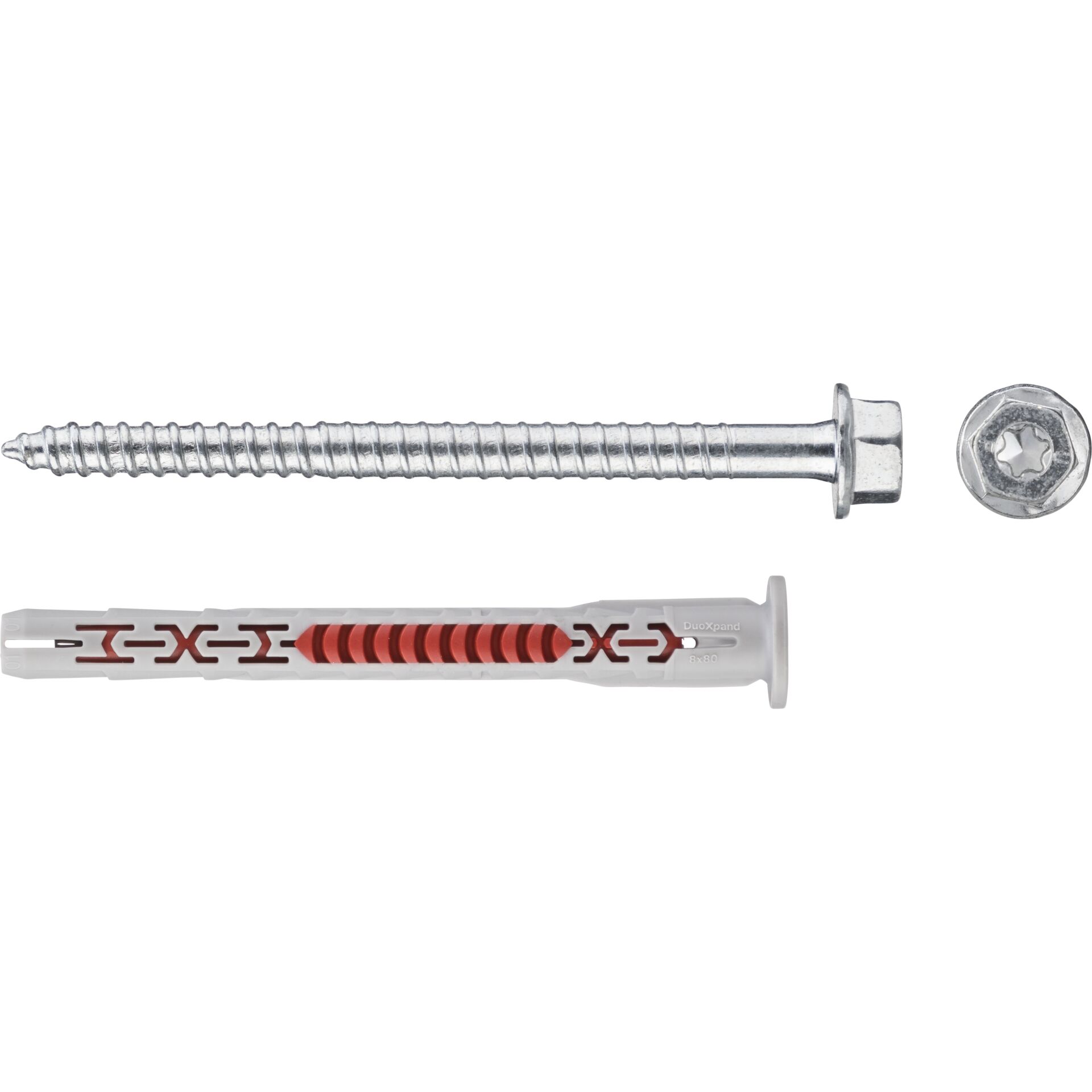

The Fischer DuoXpand 8x80 FUS is a long-shaft frame plug supplied with a hexagon head screw and moulded washer. Its distinct lamella design expands gently within the substrate, reducing fracturing in porous building materials and allowing secure anchorages close to edges.
Key Features
- Suitable for concrete, aerated concrete, solid brick, and hollow masonry
- Combined drive with TX30 recess and SW10 hexagon head
- Drill hole diameter of 8 mm with minimum borehole depth of 50 mm
- Overall plug length of 80 mm
- Durable plastic construction in grey and red
- Supplied in a pack of 50 pieces
| Brand | Fischer |
|---|---|
| Model | DuoXpand 8x80 FUS |
| Plug Type | Long-shaft plug with hexagon head screw and washer |
| Drill Hole Diameter (d0) | 8 mm |
| Plug Length (l) | 80 mm |
| Drive | TX30 / SW10 |
| Minimum Borehole Depth | 50 mm |
| Usable Length at 50 mm Anchorage Depth (tfix) | 30 mm |
| Usable Length at 70 mm Anchorage Depth (tfix) | 10 mm |
| Material | Plastic |
| Colour | Grey / Red |
| Quantity | 50 pieces |
Which building materials are suitable for this anchor?
The plug is suitable for concrete (≥ C12/15), aerated concrete, solid and perforated bricks, sand-lime bricks, hollow lightweight concrete blocks, solid gypsum panels, and natural stone.
What tool drive is required for tightening?
The screw features a dual drive that fits a TX30 Torx bit as well as an SW10 hexagon socket or spanner.
What drill bit diameter is required?
A standard drill bit with an 8 mm diameter is required, drilled to a minimum depth of 50 mm.
