Fischer DuoXpand 10x120 FUS Frame Plug with Hexagon Screw, 50 pcs.
Price: 74.20 €
| Products ID: | 185091 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962440300 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 29.09.–09.10.
Parcel-machine delivery
Free
Estimated: 01.10.–13.10.
Courier delivery
4.90 €
Estimated: 01.10.–13.10.

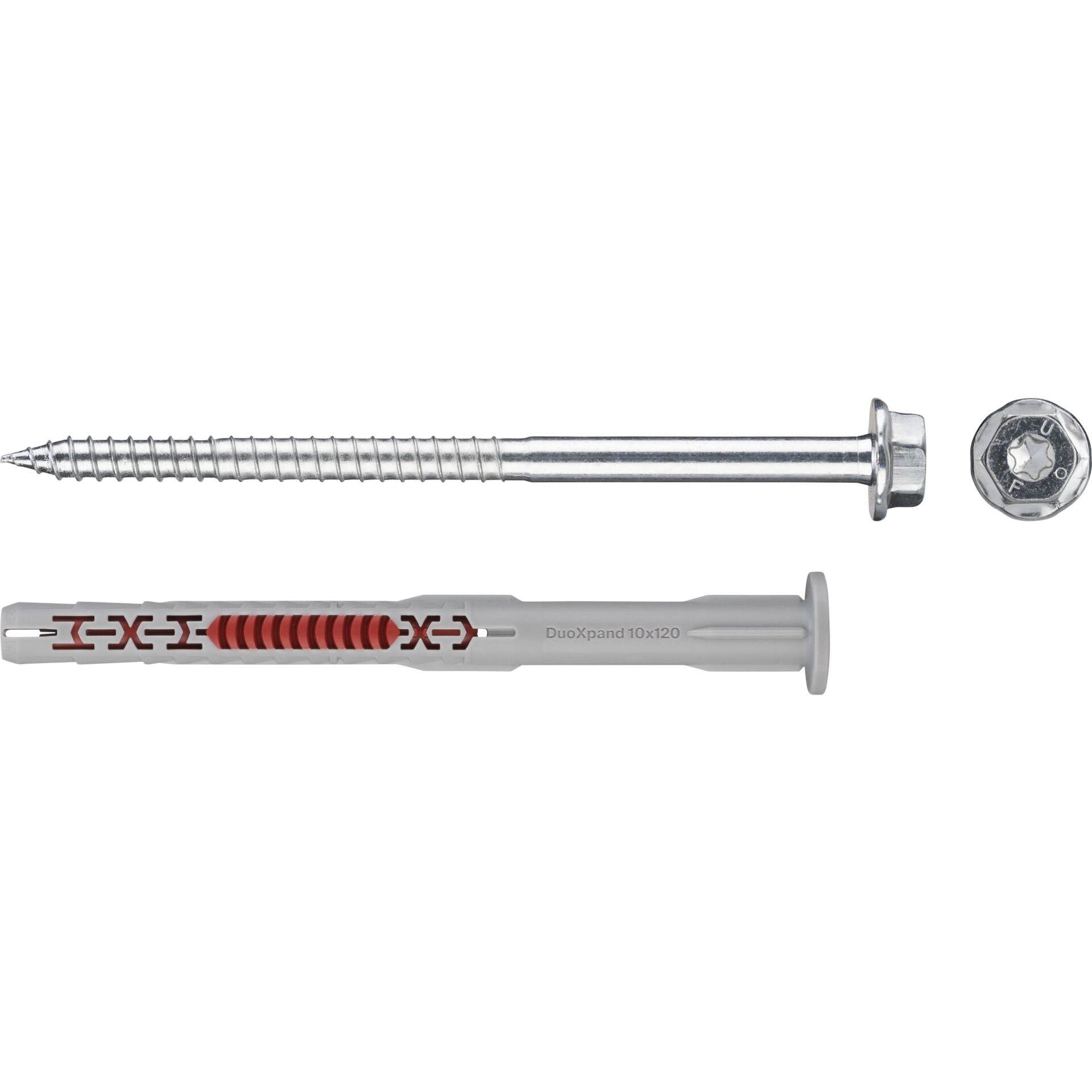

The Fischer DuoXpand 10x120 FUS is a long shank frame plug with a hexagon screw and integrated washer, designed for reliable fastening across diverse construction substrates.
Key Features
- Special lamella geometry expands gently in the substrate to prevent fractures in porous materials and allow anchoring close to edges
- Supplied with a safety hexagon screw featuring a molded washer and TX40/SW13 drive

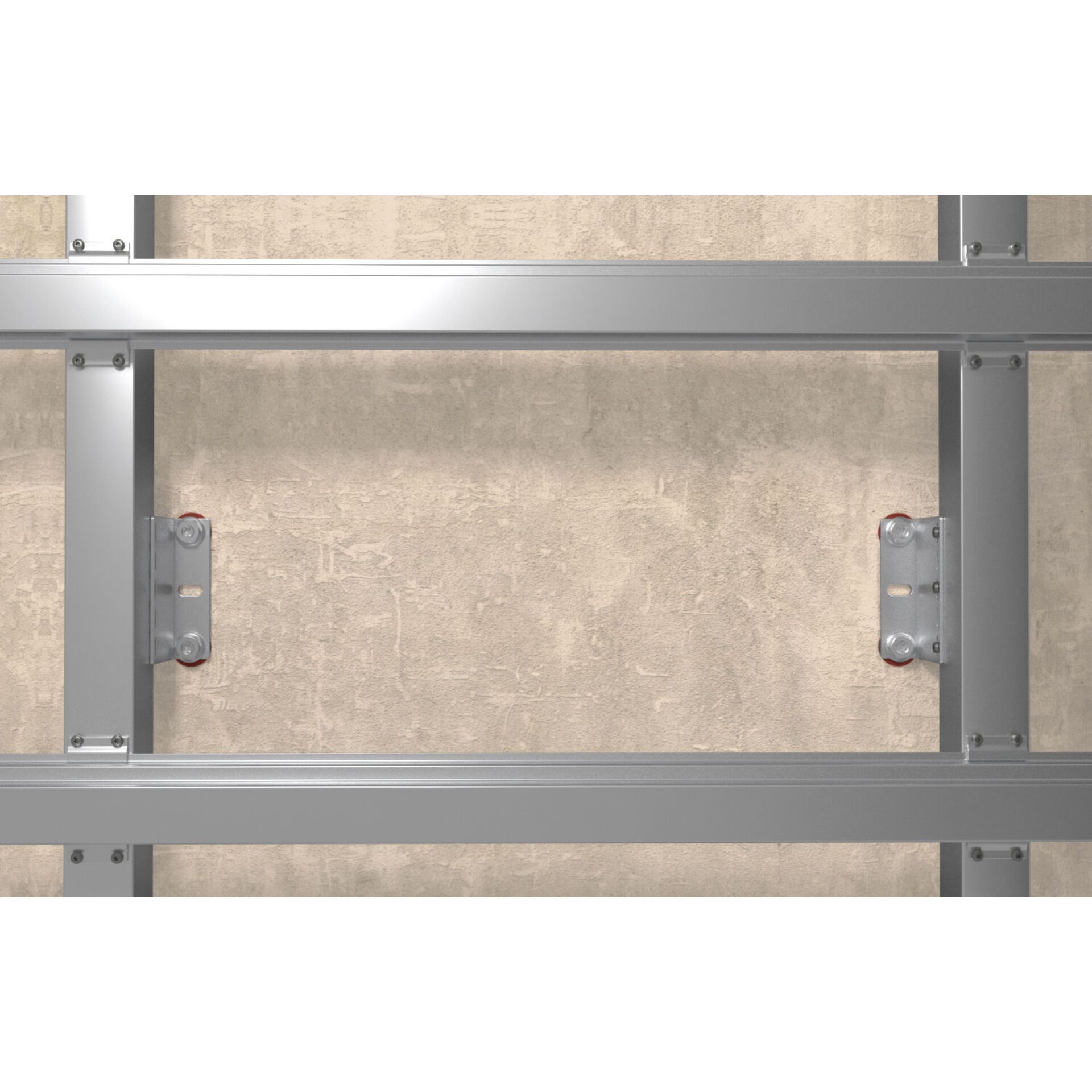

- Suitable for facade, ceiling, and roof substructures, windows, doors, beams, and wall units

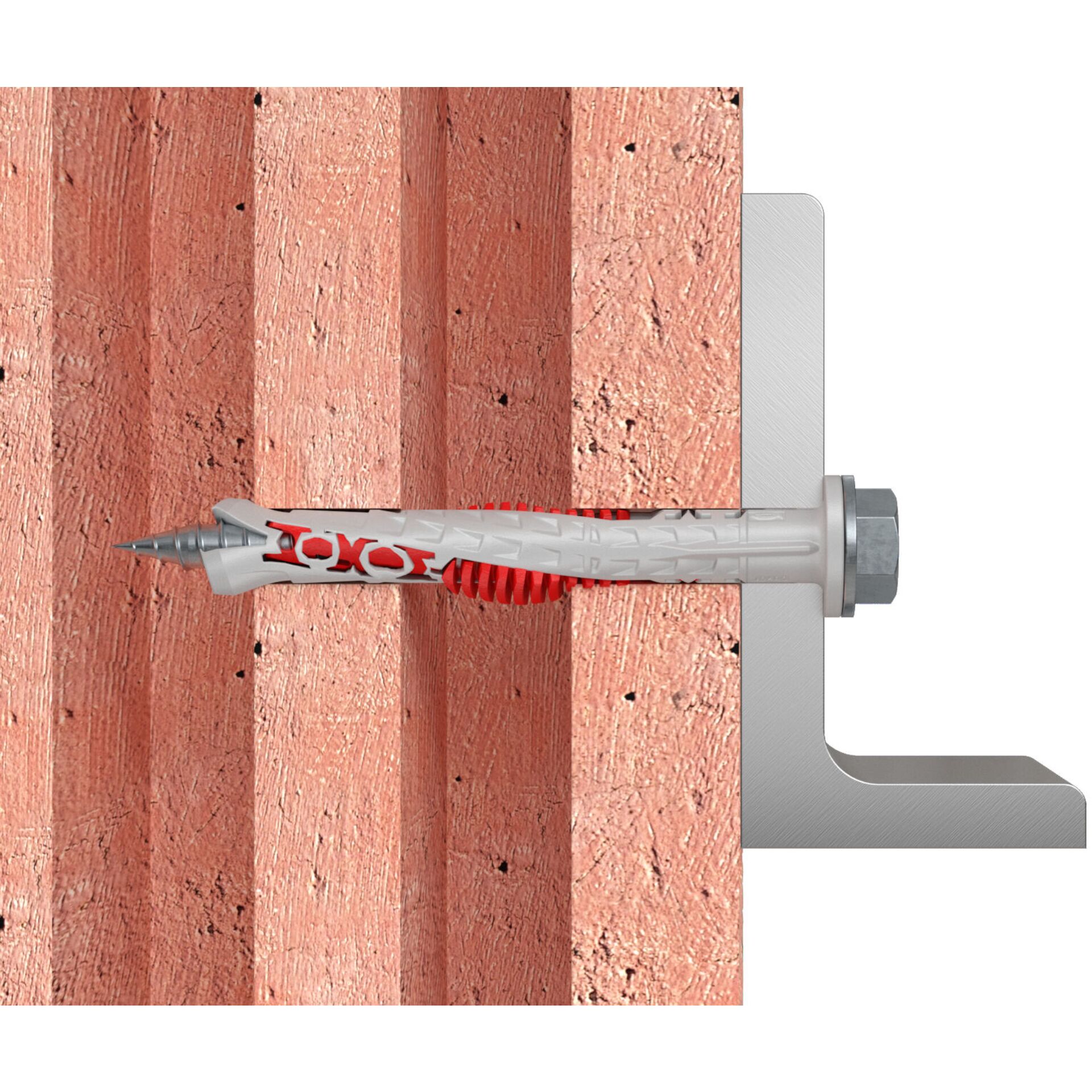

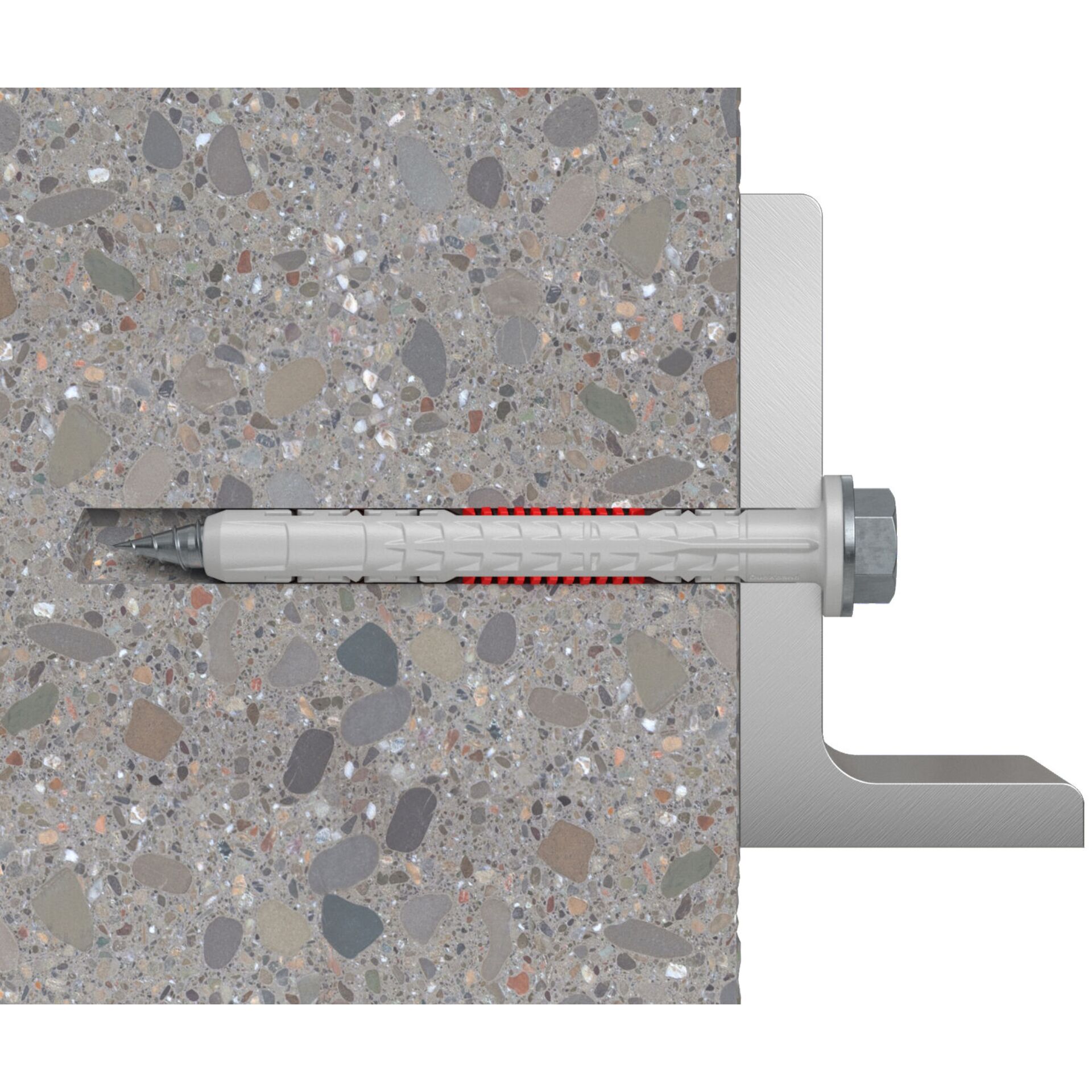

- Wide compatibility with concrete, solid and perforated bricks, aerated concrete, and natural stone
| Drive | TX40/SW13 |
|---|---|

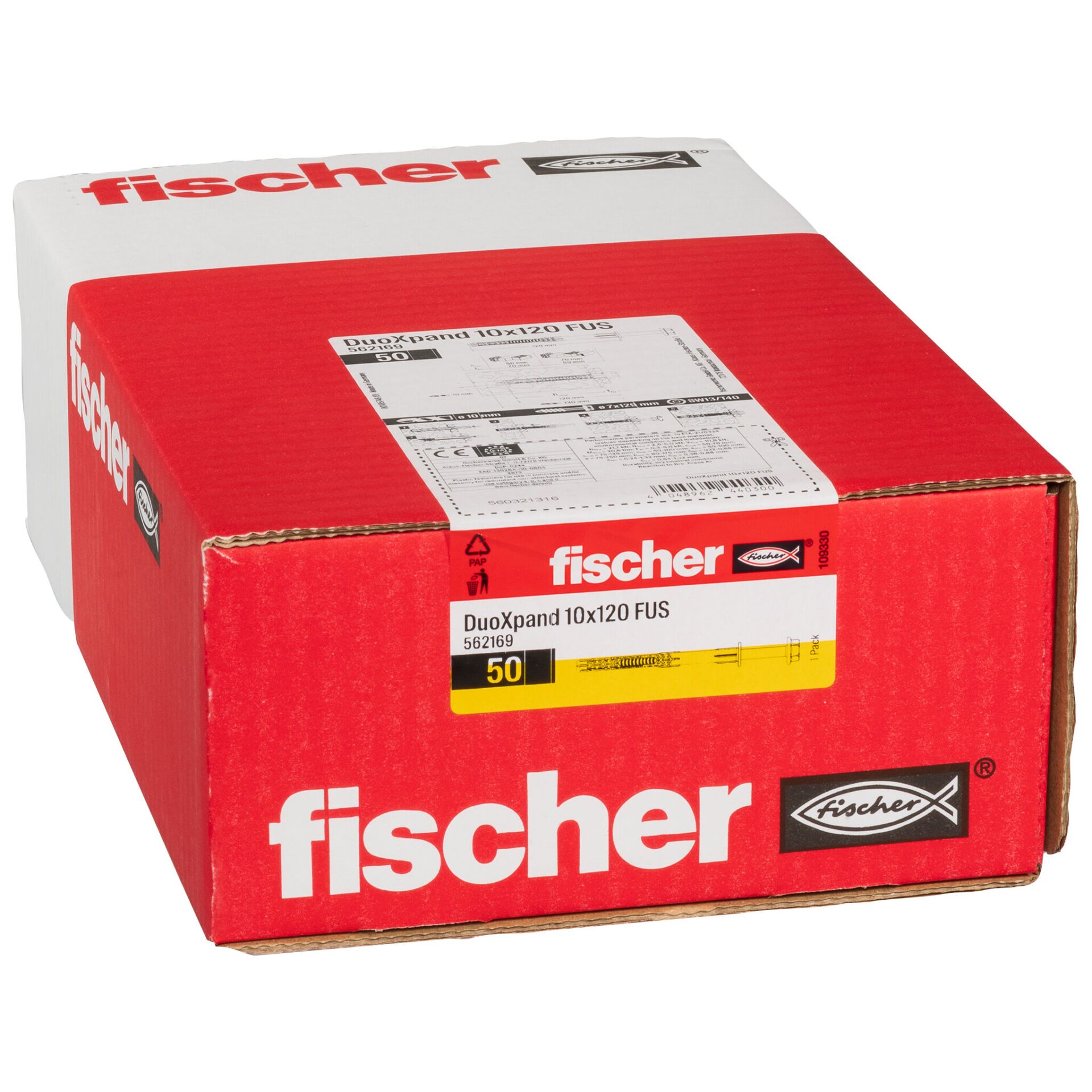

| Quantity | 50 pieces |
| Plug length (l) | 120 mm |
| Drill core diameter (d0) | 10 mm |
| Effective length for anchorage depth 50 mm (tfix) | 70 mm |
| Effective length for anchorage depth 70 mm (tfix) | 50 mm |
| Number of Parts | 50 |
| Overall Length | 140 mm |
| Drill Hole Diameter | 10 mm |
| Minimum Borehole Depth | 50 mm |
| Field of Application | Universal |
| Colour | Grey / Red |
| Material | Plastic |
| Type | Plug |
What tool drive is required for installation?
The screw is equipped with both a TX40 star recess and an SW13 (13 mm) hexagon head.
What drill hole diameter is needed?
A standard 10 mm drill bit is required for installation.
Which building materials can this plug be anchored into?
It is suitable for concrete (≥ C12/15), solid and perforated bricks, sand-lime brick, aerated concrete, lightweight concrete, gypsum plates, and dense natural stone.
