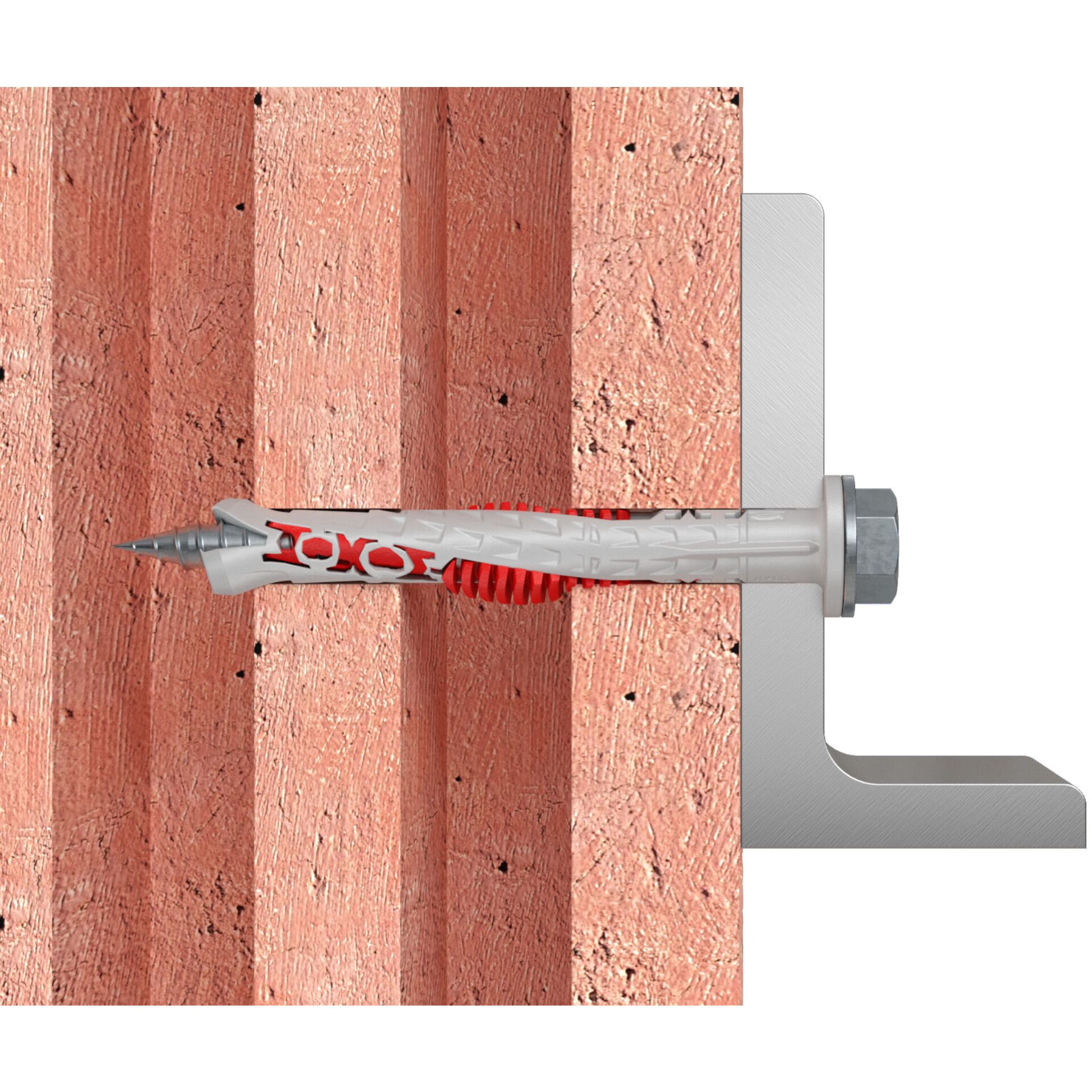

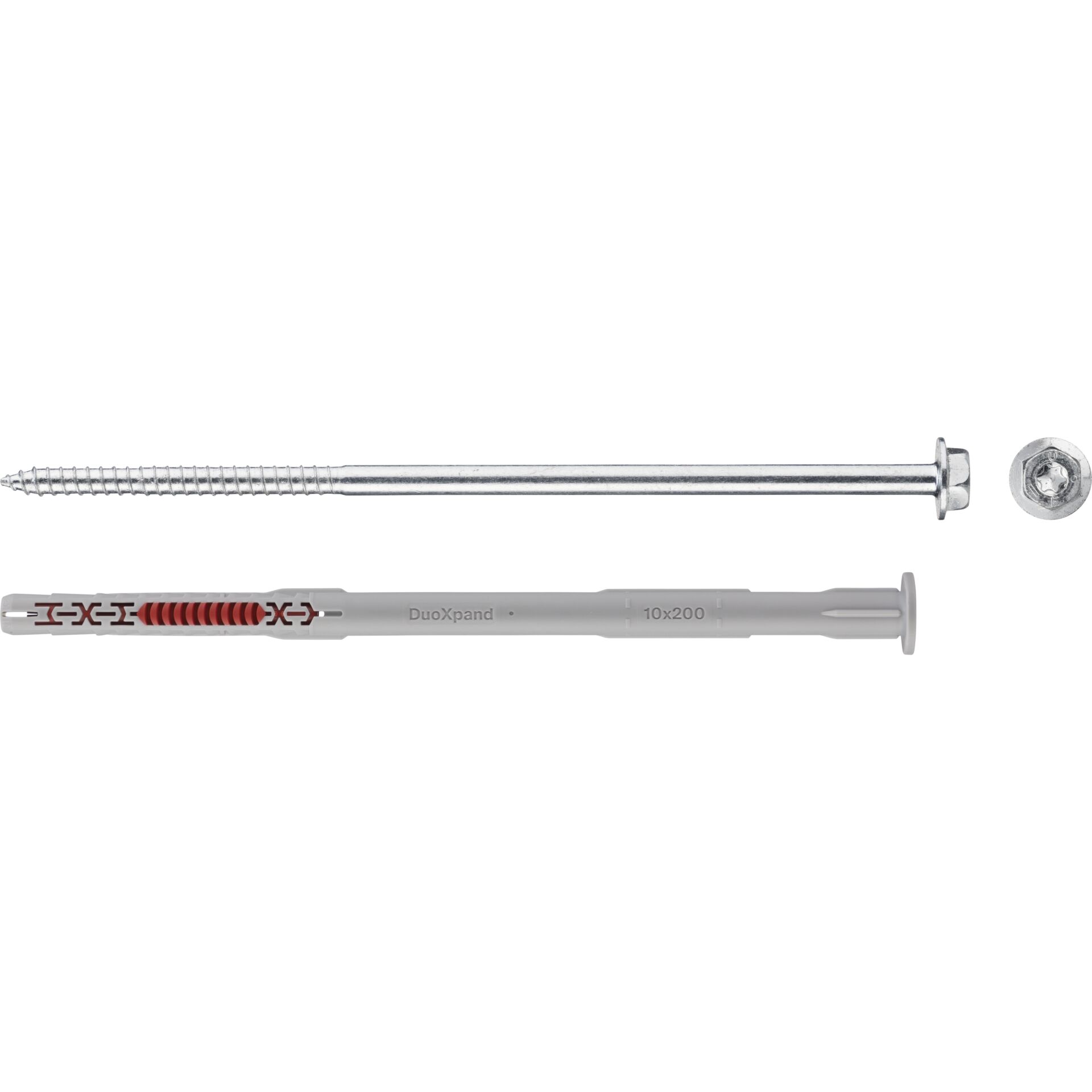

The Fischer DuoXpand 10x200 FUS is a long-shaft frame plug supplied with a hexagon head screw and integrated washer. Its special lamella geometry ensures gentle expansion within building materials, preventing fractures in porous substrates and enabling secure anchoring close to edges.
Key Features

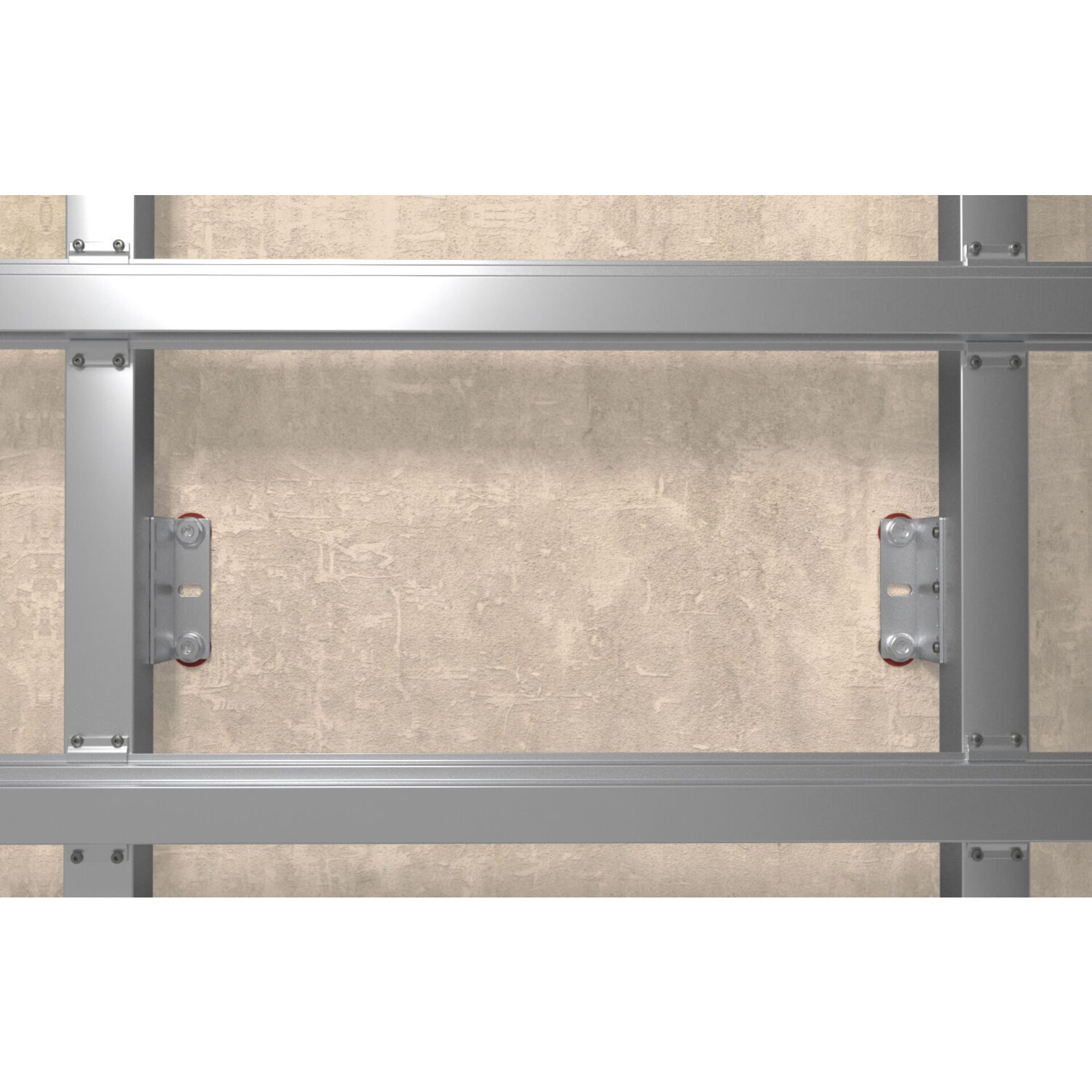

- Suitable for timber or metal facade, ceiling, and roof substructures
- Ideal for installing windows, doors, gates, wall cabinets, beams, and cable ducts
- Approved for solid brick, perforated brick, concrete, aerated concrete, and stone
- Hexagonal screw drive compatible with TX40 and SW13 tools
| Drive | TX40/SW13 |
|---|---|
| Quantity | 50 pcs |
| Plug length (l) | 200 mm |
| Drill core diameter (d0) | 10 mm |
| Effective length for anchorage depth 50 mm (tfix) | 150 mm |
| Effective length for anchorage depth 70 mm (tfix) | 130 mm |
| Effective length for anchorage depth 140 mm (tfix) | 60 mm |
| Effective length for anchorage depth 160 mm (tfix) | 40 mm |
| Minimum borehole depth | 50 mm |
| Field of application | Universal |
| Colour | Grey / Red |
| Material | Plastic |
| Type | Plug |
Which building materials are suitable for this anchor?

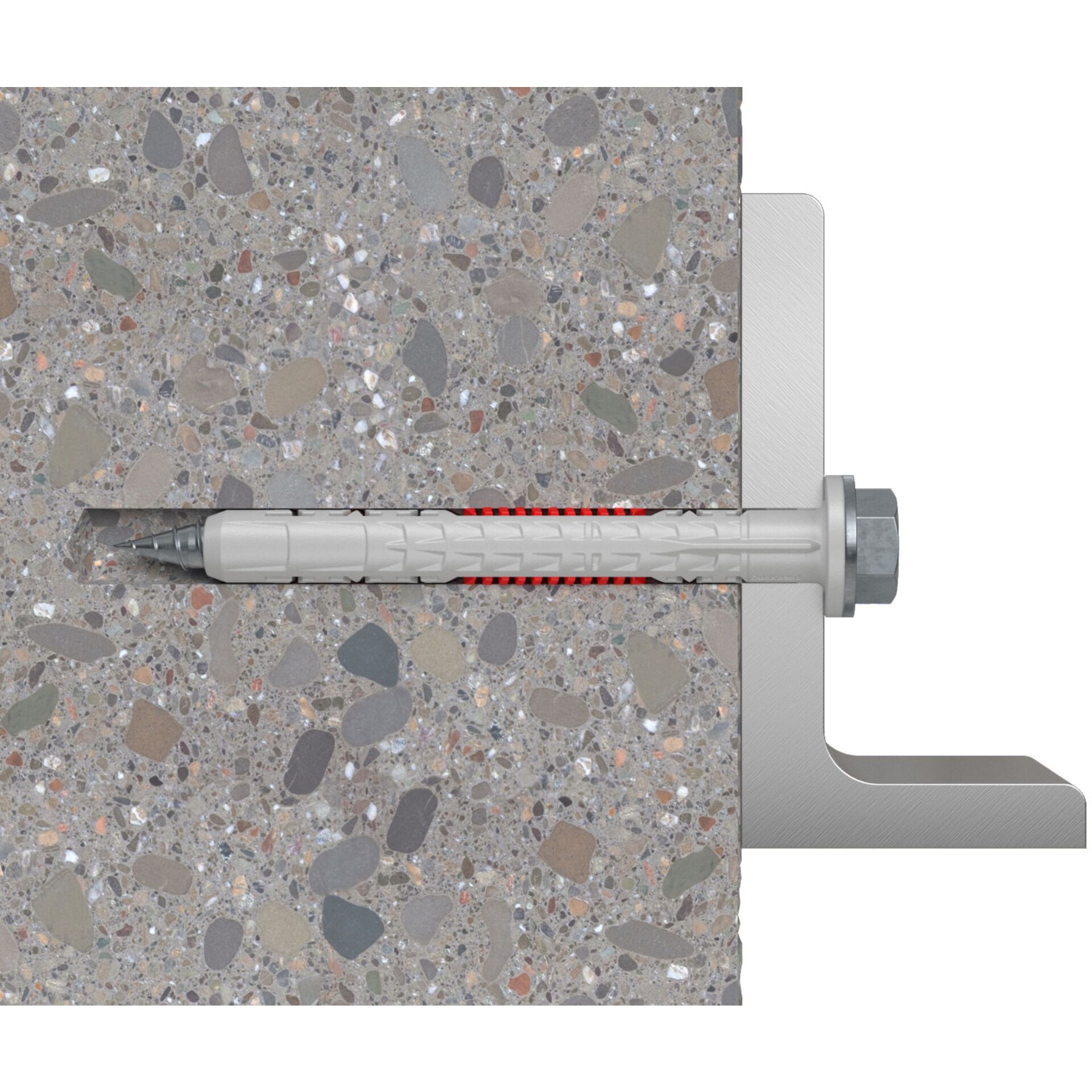

It can be used in solid bricks, hollow blocks, perforated sand-lime brick, concrete (≥ C12/15), aerated concrete, dense natural stone, and solid gypsum plates.
What tool bit is required to drive the screw?
The screw features a combination head that accepts a TX40 Torx bit or a 13 mm (SW13) hex socket/wrench.
How many plugs are included in the package?
The package contains 50 plugs complete with matching hexagon head screws and washers.
