Fischer DuoXpand 8x120 FUS Frame Plug with Hexagon Head Screw, 50 pcs
Price: 65.20 €
| Products ID: | 185086 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962440157 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 29.09.–09.10.
Parcel-machine delivery
Free
Estimated: 01.10.–13.10.
Courier delivery
4.90 €
Estimated: 01.10.–13.10.

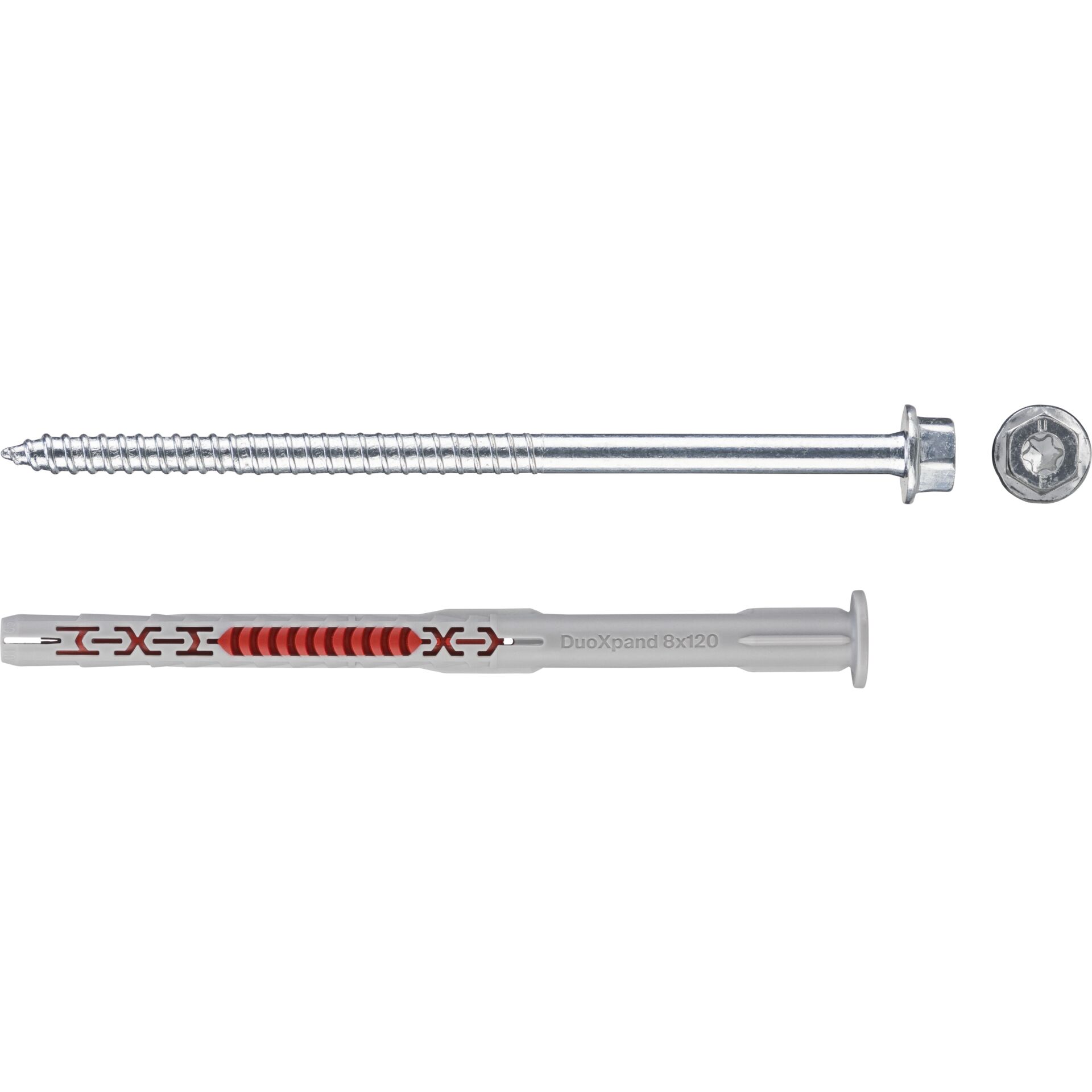

The fischer DuoXpand 8 x 120 FUS is a long-shaft frame plug supplied with a hexagon head screw and integrated washer. Its special lamella geometry expands gently in the base material, avoiding fractures in porous substrates and enabling secure anchoring close to the edge.
Key Features & Applications
- Hexagon head screw with combined TX30 / SW10 drive
- Gentle expansion lamellae prevent breakage in porous building materials

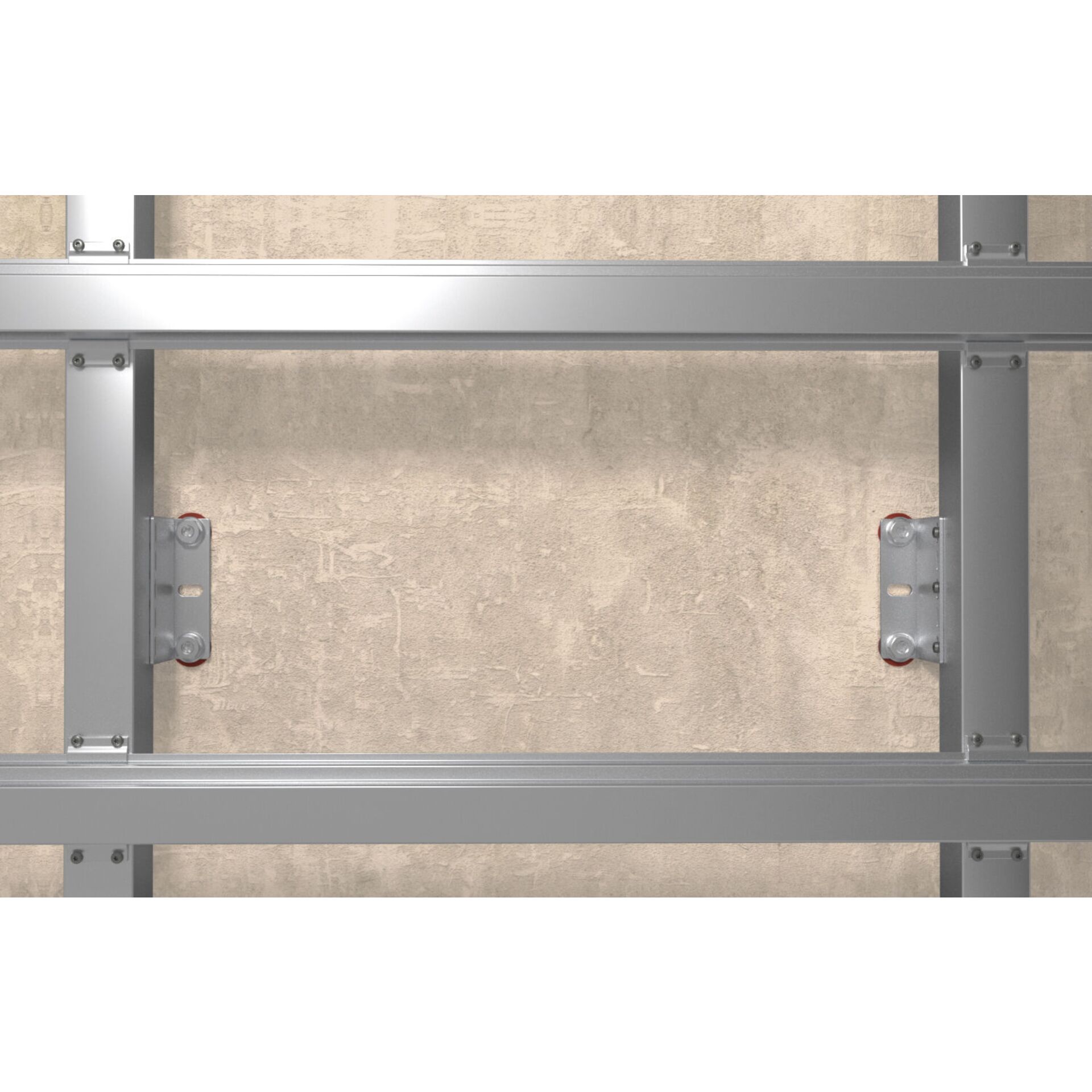

- Suitable for facade, ceiling and roof substructures, window and door frames, beams and cable ducts

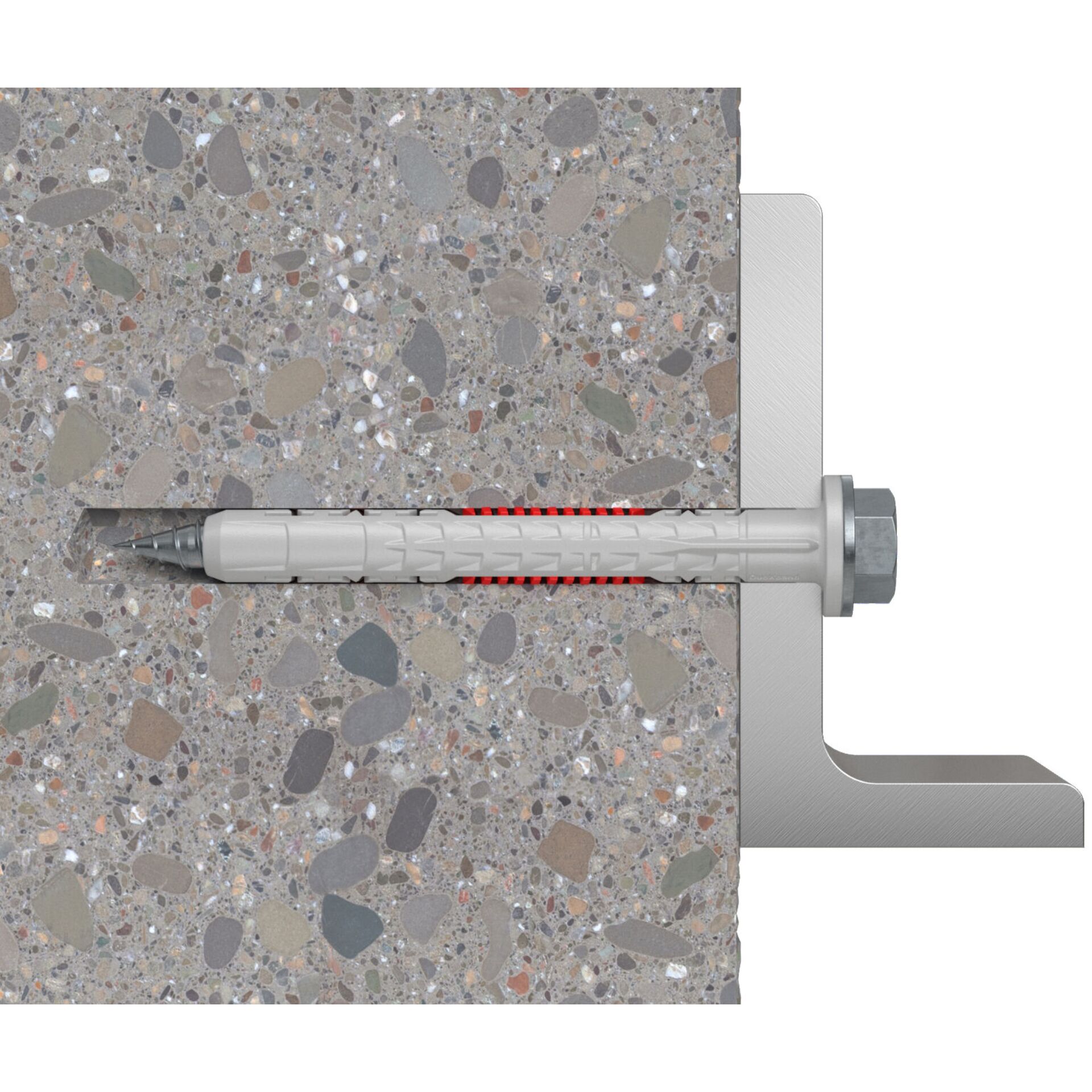

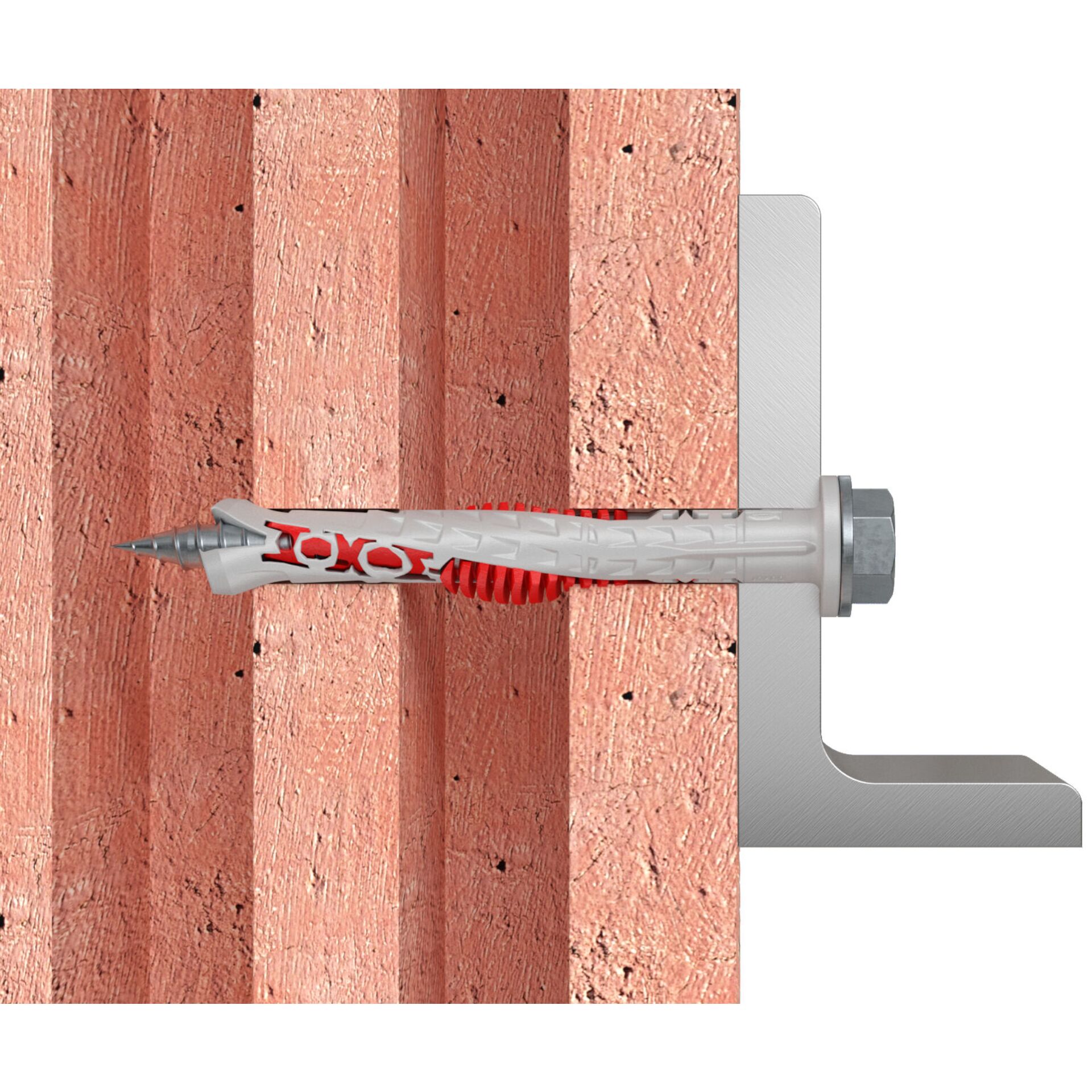

- Approved for solid and perforated brick, concrete, aerated concrete, sand-lime brick and natural stone
| Drive | TX30 / SW10 |
|---|---|
| Quantity | 50 pcs |
| Plug length (l) | 120 mm |
| Drill hole diameter (d0) | 8 mm |
| Effective length for anchorage depth 50 mm (tfix) | 70 mm |
| Effective length for anchorage depth 70 mm (tfix) | 50 mm |
| Minimum borehole depth | 50 mm |
| Field of application | Universal |
| Colour | Grey / Red |
| Material | Plastic |
| Type | Plug |
What drive size is required for the included screw?
The screw features a dual drive compatible with TX30 Torx bits and SW10 (10 mm) hex sockets or wrenches.
What materials is the DuoXpand plug suitable for?
It is suitable for concrete (≥ C12/15), solid and perforated brick, sand-lime brick, aerated concrete, solid gypsum panels, lightweight hollow concrete blocks, and dense natural stone.
