Fischer DuoXpand 10x100 T Frame Plugs with Screws, 50 pcs

Fischer DuoXpand 10x100 T Frame Plugs with Screws, 50 pcs — image 3

Fischer DuoXpand 10x100 T Frame Plugs with Screws, 50 pcs — image 4

Price: 66.30 €

Products ID:	185088
Manufactured by:	Fischer
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	4048962440171

Delivery options to:

Latvia

Office pickup

Free

Estimated: 29.09.–09.10.

Parcel-machine delivery

Free

Estimated: 01.10.–13.10.

Courier delivery

4.90 €

Estimated: 01.10.–13.10.

Fischer DuoXpand 10x100 T Frame Plugs with Screws, 50 pcs

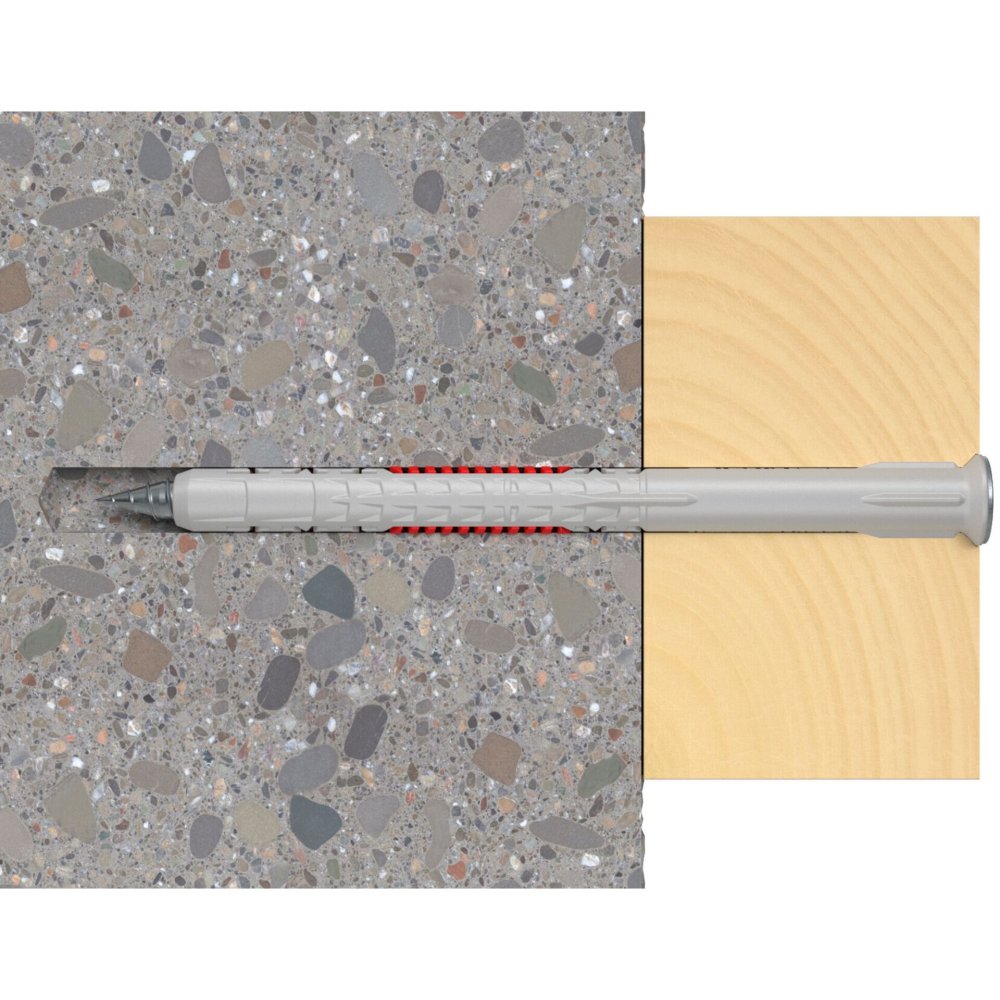

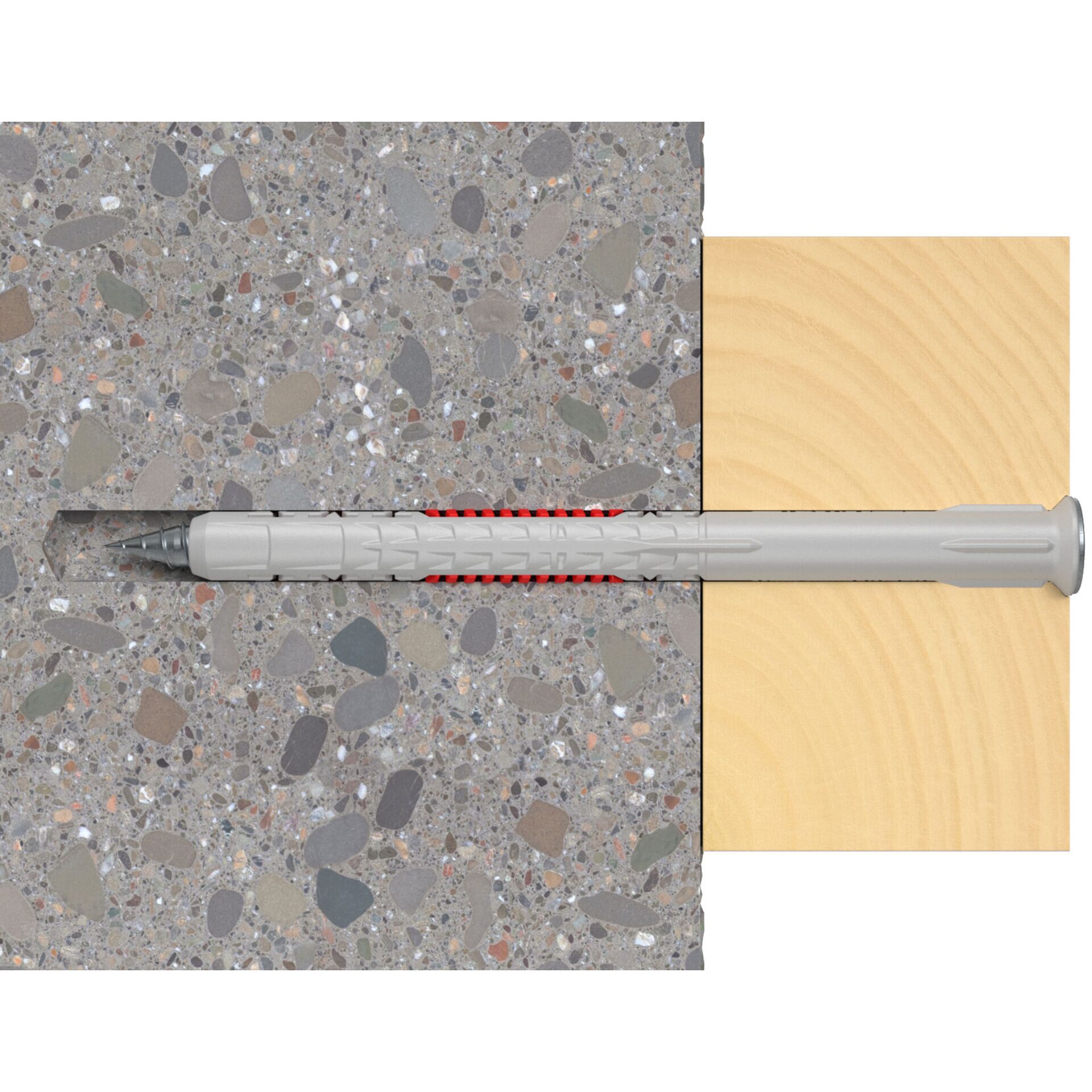

The Fischer DuoXpand 10x100 T is a long shank frame plug complete with a pre-assembled countersunk safety screw. Its special lamella geometry ensures gentle expansion within building materials, helping avoid fractures in porous substrates and allowing reliable anchoring close to the edge.

Key Features

Special lamella geometry ensures material-friendly expansion

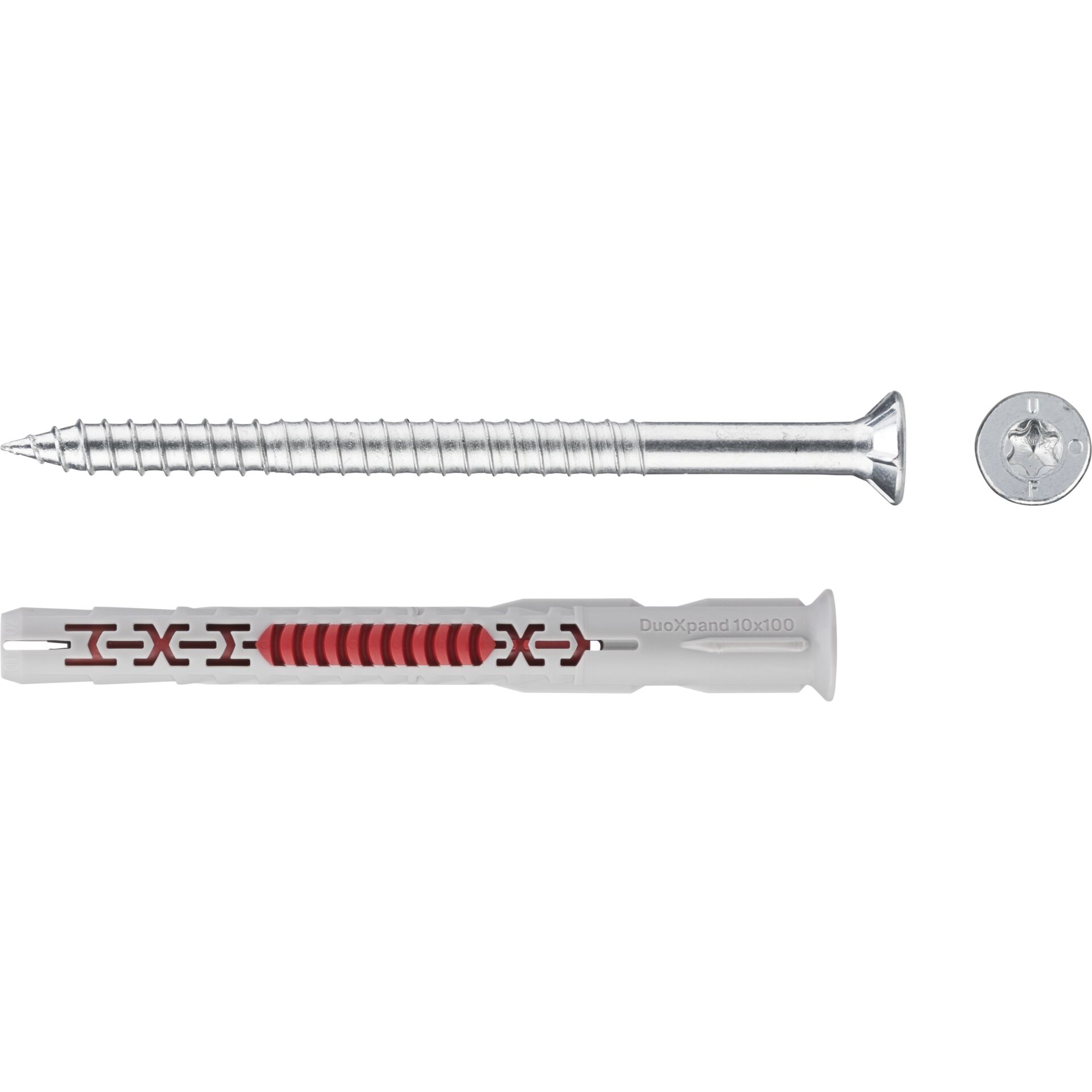

Pre-assembled countersunk safety screw with TX40 drive
Made of high-grade nylon in a red and grey combination

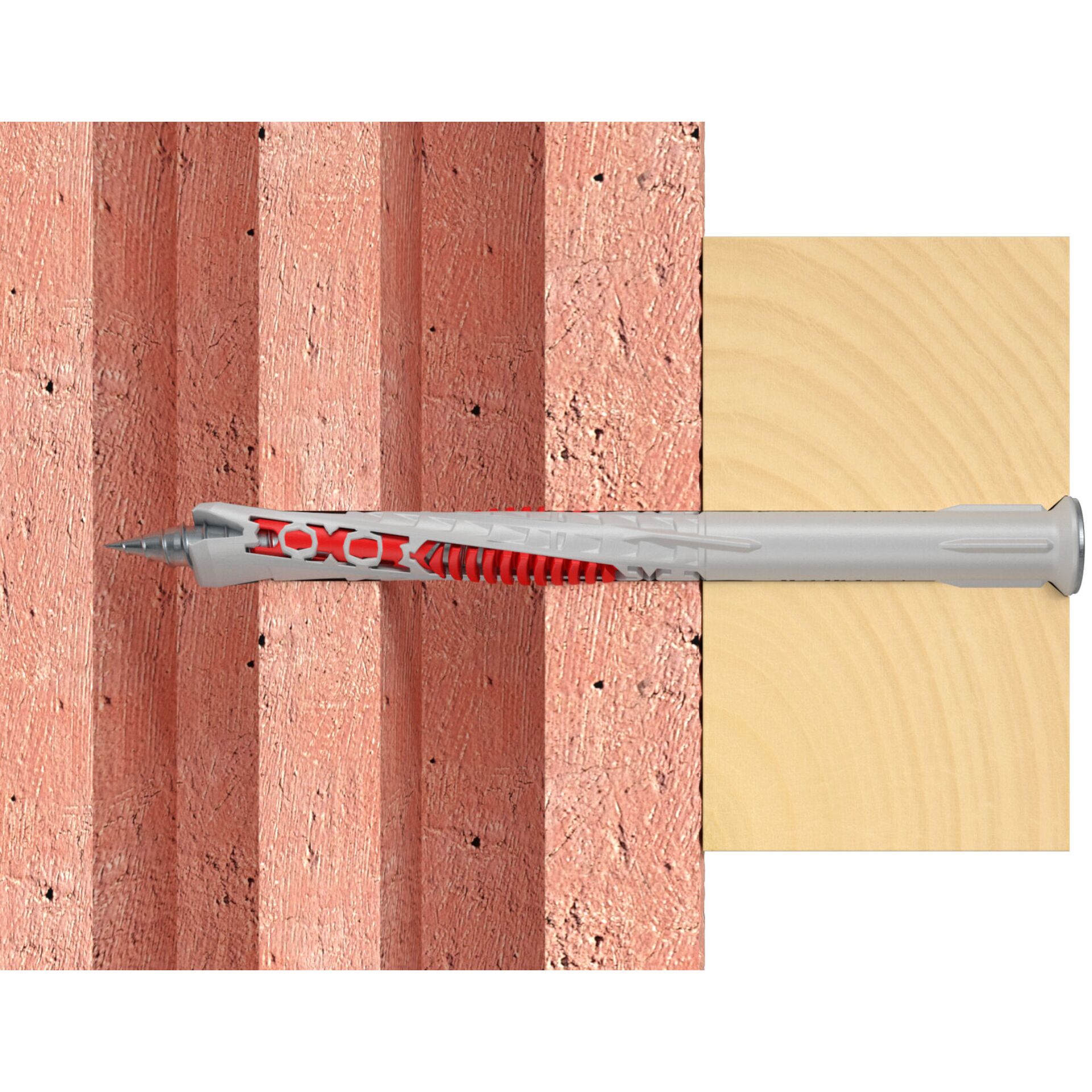

Universal suitability for solid and perforated brick, concrete, and aerated concrete
Ideal for facades, window frames, doors, timber substructures, and cable trays

Plug Type	Frame plug with countersunk screw
Drill hole diameter (d0)	10 mm
Plug length (l)	100 mm
Drive	TX40
Usable length at 50 mm anchorage depth (tfix)	50 mm
Usable length at 70 mm anchorage depth (tfix)	30 mm
Minimum borehole depth	50 mm
Material	Nylon / plastic
Colour	Grey / red
Quantity per pack	50 pcs

What screw drive type is required for installation?

The pre-assembled safety screw uses a TX40 Torx drive.

What is the maximum fixture thickness for this plug?

The maximum usable fixture thickness is 50 mm at an anchoring depth of 50 mm, and 30 mm at an anchoring depth of 70 mm.

Which building materials can this plug be used in?

It is suitable for concrete, solid and perforated bricks, aerated concrete, sand-lime bricks, lightweight hollow blocks, dense natural stone, and solid gypsum plates.
