Fischer FBZ 8/10 Bolt Anchor, 8 x 75 mm, 50 pcs
Price: 33.70 €
| Products ID: | 184535 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962305494 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 29.09.–09.10.
Parcel-machine delivery
from 1.90 €
Estimated: 01.10.–13.10.
Courier delivery
4.90 €
Estimated: 01.10.–13.10.

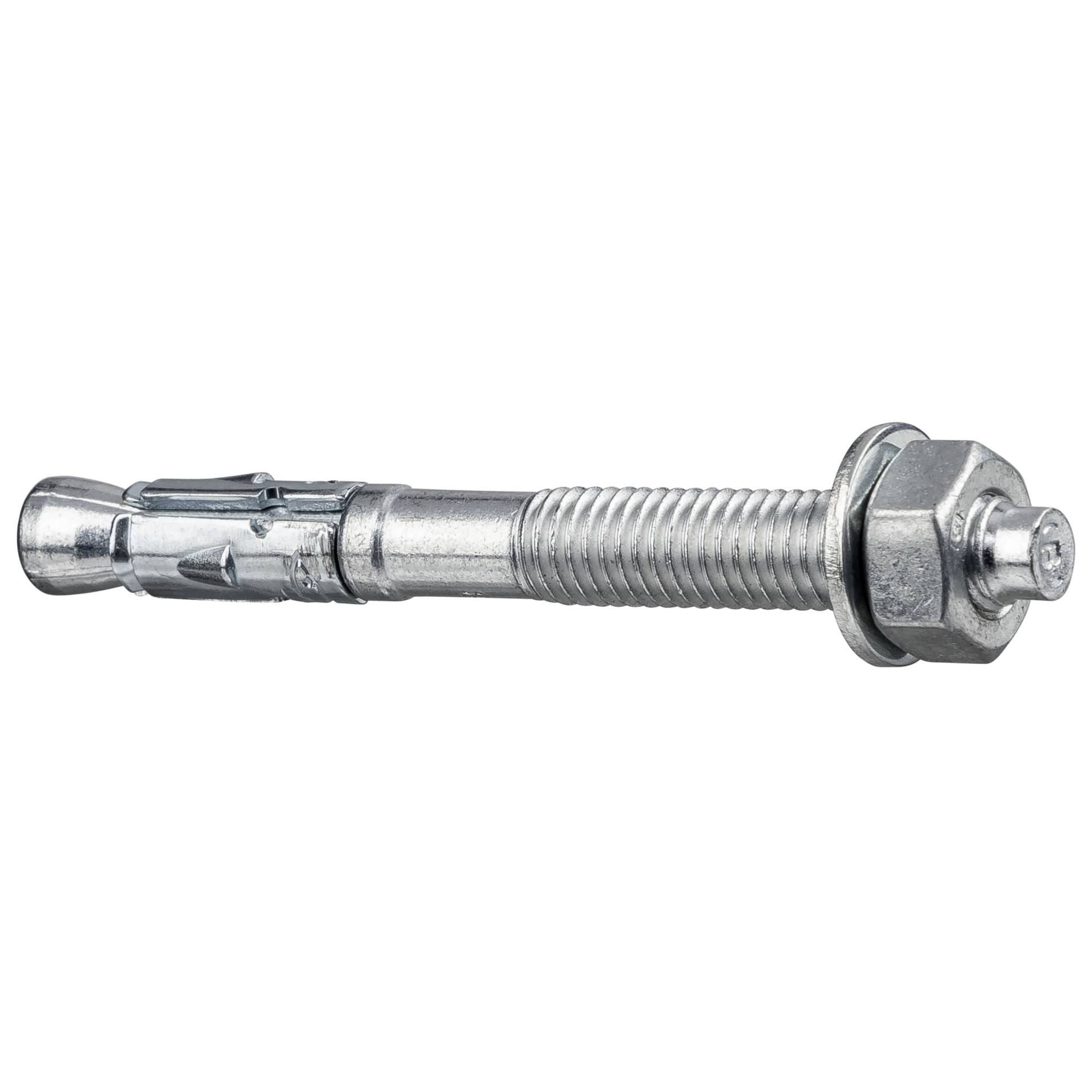

The Fischer FBZ 8/10 is a steel bolt anchor designed for secure fixing in cracked and non-cracked concrete.
Key Features
- Suitable for anchoring brackets, cable trays, and railings
- Flexible application thanks to two anchoring depths
- Thread size M 8 x 38 mm and total length 75 mm
- Minimum drill hole depth of 70 mm for push-through installation
| Drill hole diameter | 8 mm |
|---|---|
| Number of parts | 50 |
| Overall length | 75 mm |
| Field of application | Concrete |
| Minimum borehole depth | 70 mm |
| Depth of anchoring | 35 - 45 mm |
| Thread | M 8 x 38 mm |
| Max. effective length | 10 / 20 mm |
| Colour | Grey |
| Material | Stainless Steel |
| Size | 8 x 75 mm |
| Type | Bolt Anchor |
What base material is the Fischer FBZ 8/10 suitable for?
It is designed for use in both cracked and non-cracked concrete.
What drill hole dimensions are required?
The installation requires an 8 mm drill hole diameter and a minimum drill hole depth of 70 mm for push-through mounting.
How many anchors are included in the package?
The package contains 50 pieces.
