Fischer DuoXpand 10x180 FUS Frame Plug with Hexagon Screw, 50 pcs.
Price: 92.90 €
| Products ID: | 185048 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962440331 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 29.09.–09.10.
Parcel-machine delivery
Free
Estimated: 01.10.–13.10.
Courier delivery
4.90 €
Estimated: 01.10.–13.10.

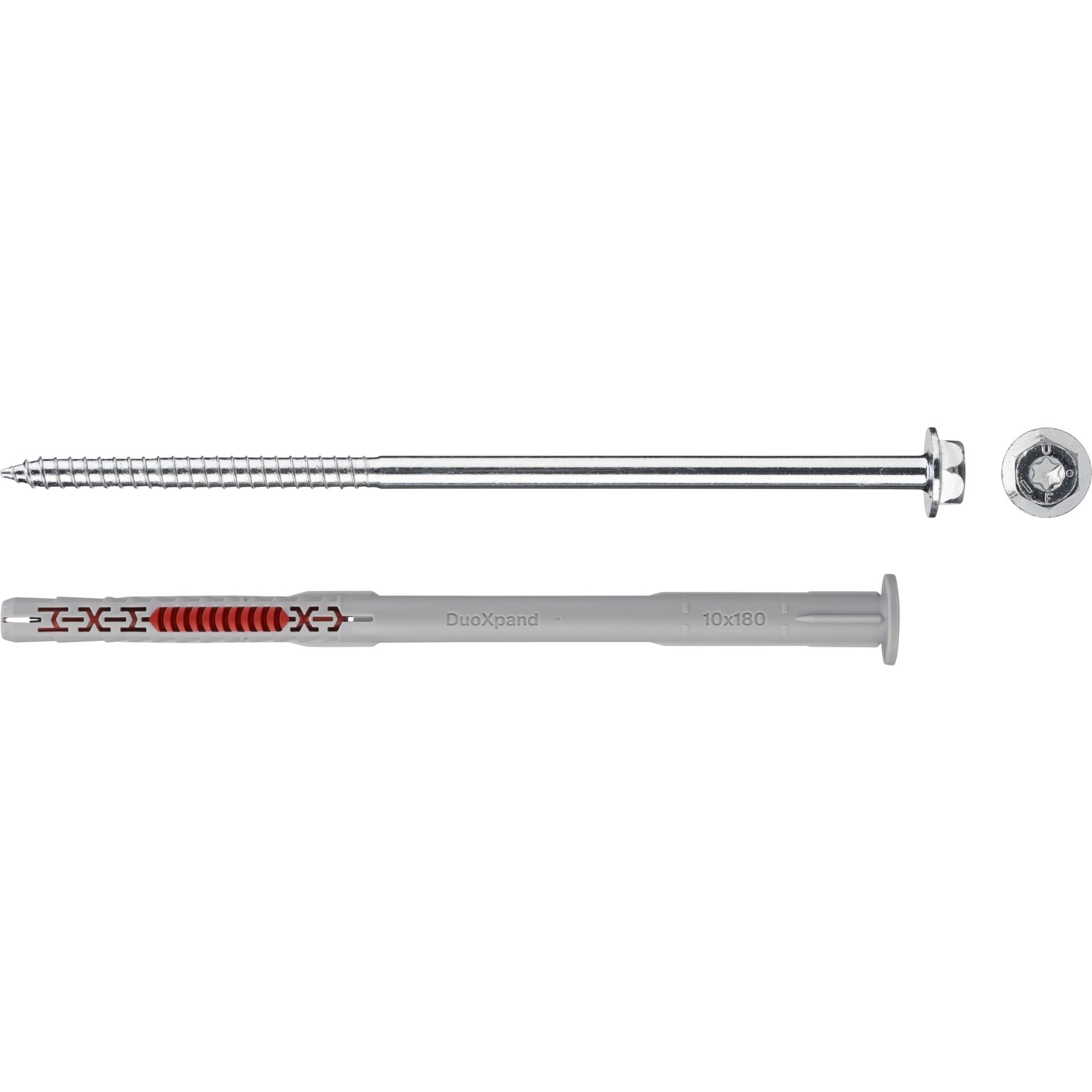

The Fischer DuoXpand 10x180 FUS is a long shank frame plug complete with a hexagon head screw and integrated washer. Its special lamella design expands gently inside building materials, avoiding fractures in porous substrates and enabling fixings close to edges.
Key Features and Applications

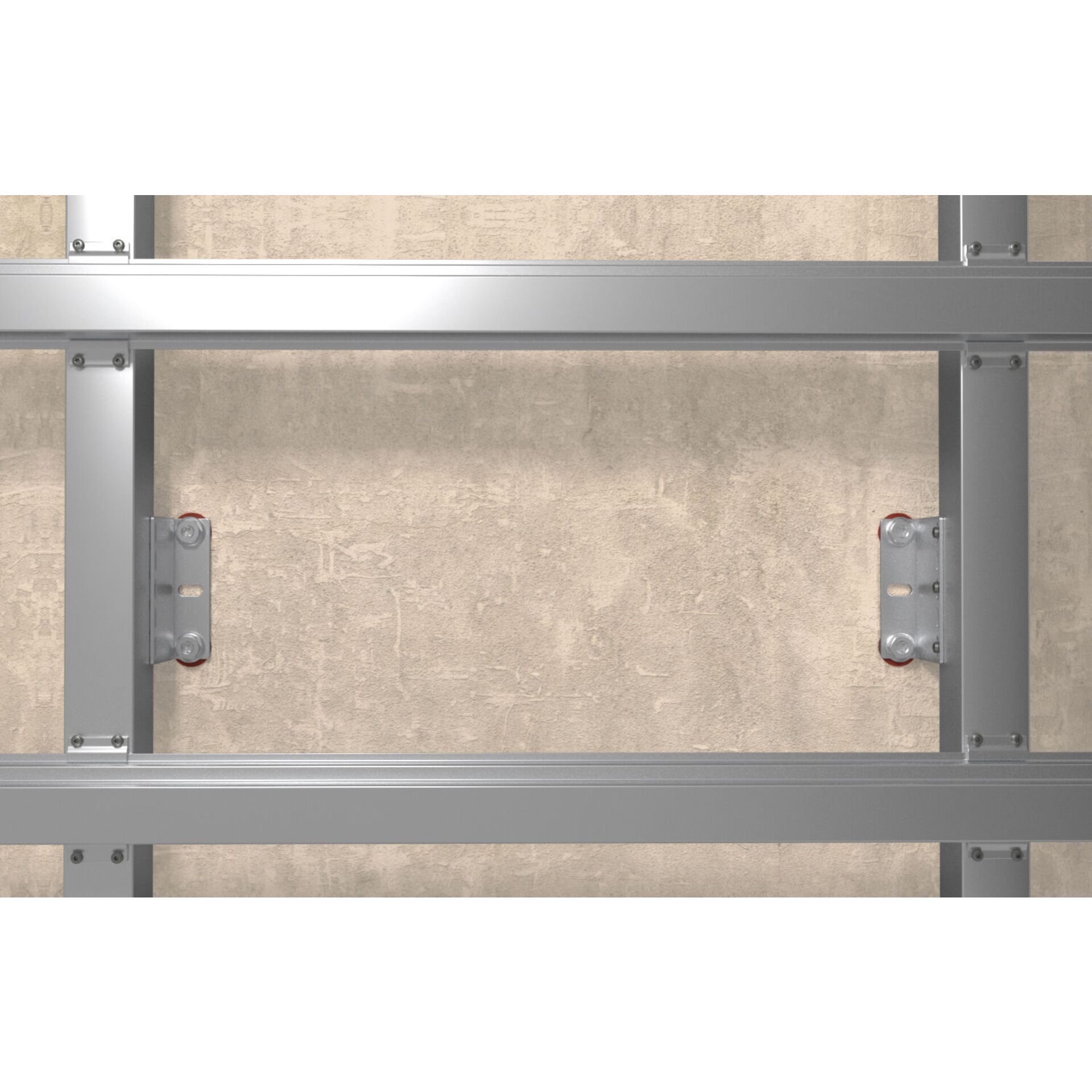

- Fixing wood and metal substructures for facades, ceilings, and roofs
- Securing windows, doors, gates, beams, and wall-mounted cabinets

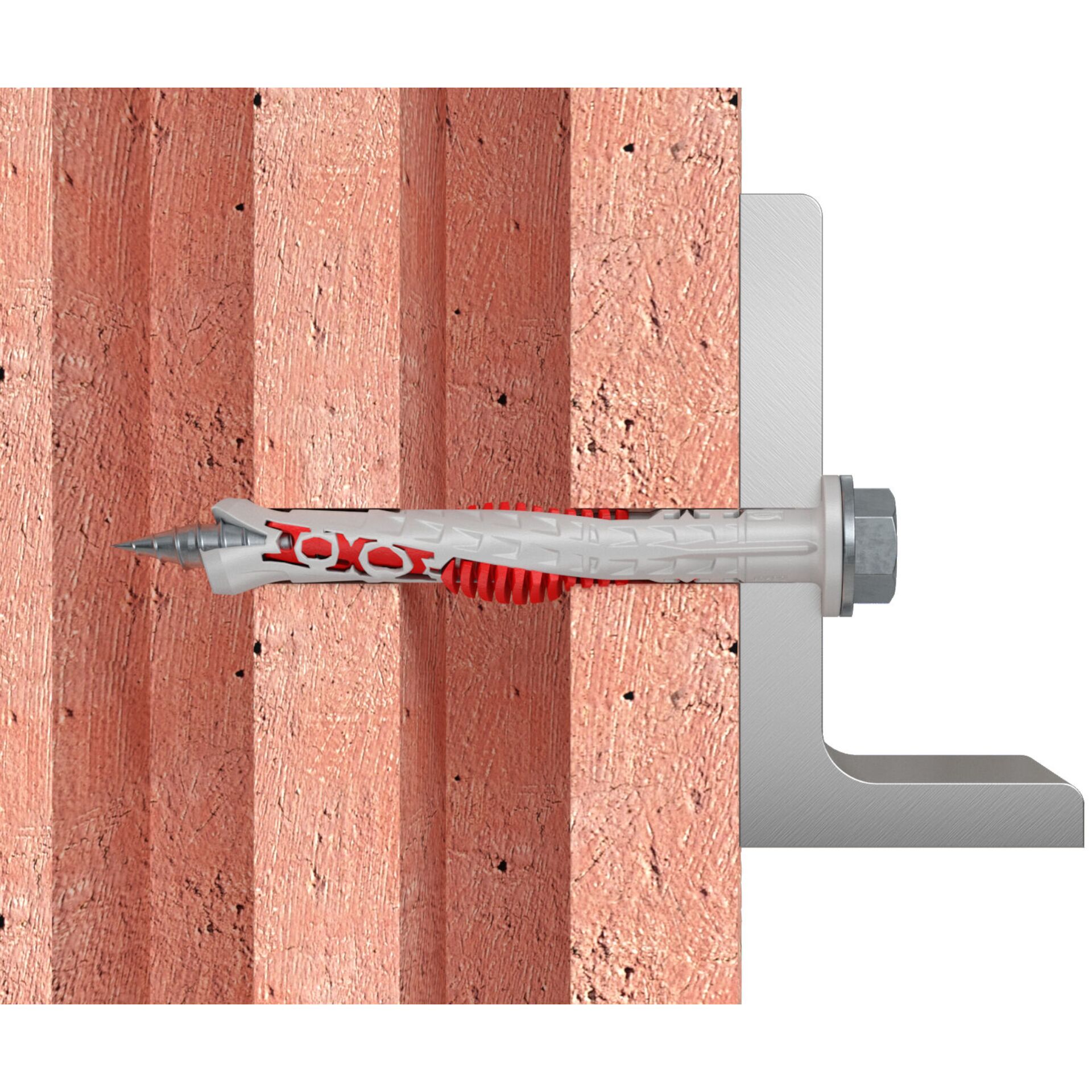

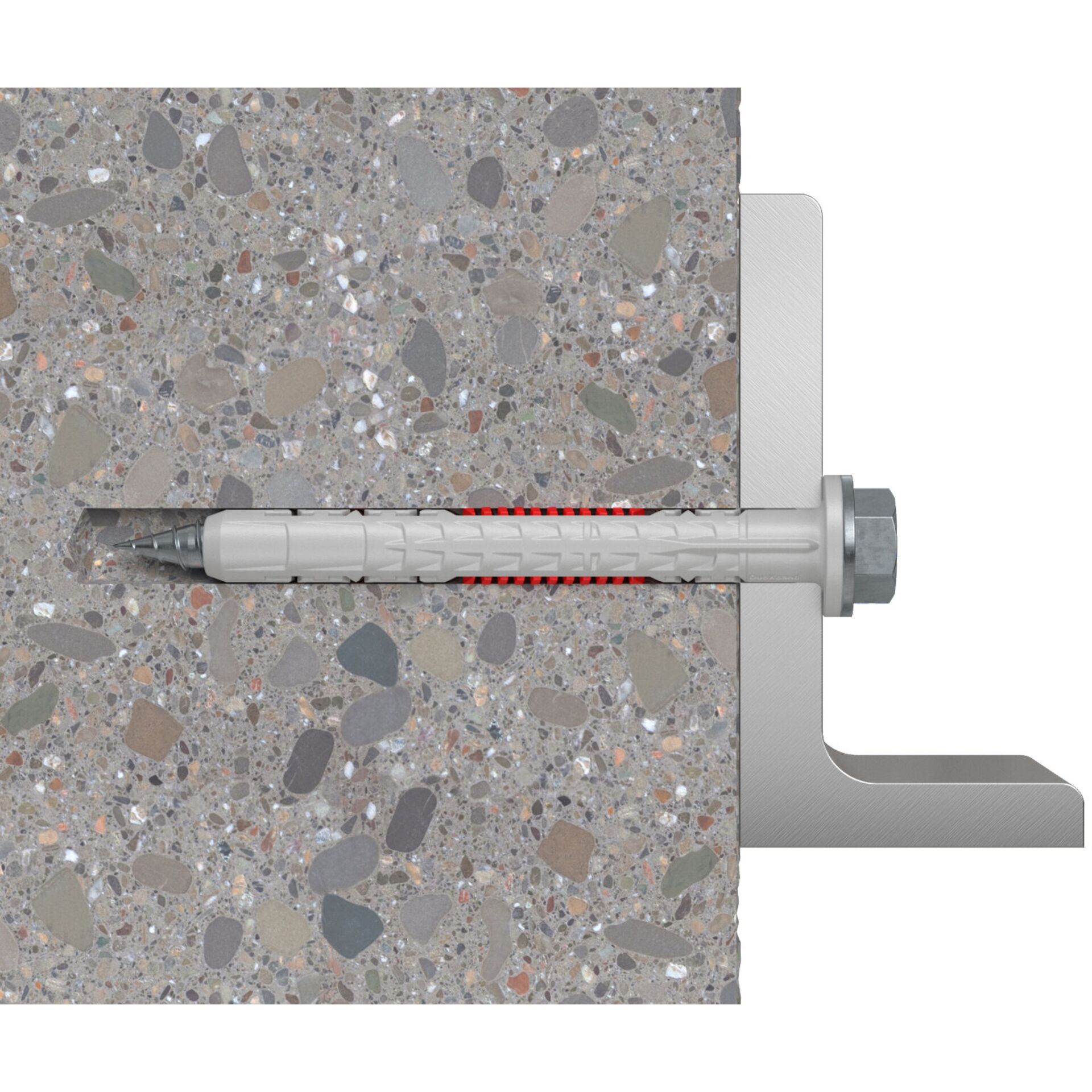

- Suitable for concrete, solid and perforated brick, aerated concrete, and gypsum panels
- Drive head compatible with TX40 bits and SW13 hex wrenches
| Drive | TX40 / SW13 |
|---|---|
| Quantity | 50 pcs. |
| Plug length | 180 mm |
| Drill hole diameter | 10 mm |
| Usable length at anchorage depth 50 mm (tfix) | 130 mm |
| Usable length at anchorage depth 70 mm (tfix) | 110 mm |
| Usable length at anchorage depth 140 mm (tfix) | 40 mm |
| Usable length at anchorage depth 160 mm (tfix) | 20 mm |
| Minimum drill hole depth | 50 mm |
| Field of application | Universal |
| Colour | Grey / Red |
| Material | Plastic |
| Type | Plug |
What drive tool is required for the screw?
The screw features a combination head suitable for TX40 Torx bits or SW13 spanners and sockets.
What drill hole diameter is needed for installation?
A 10 mm diameter drill hole is required, with a minimum depth of 50 mm.
How many plugs are included in the package?

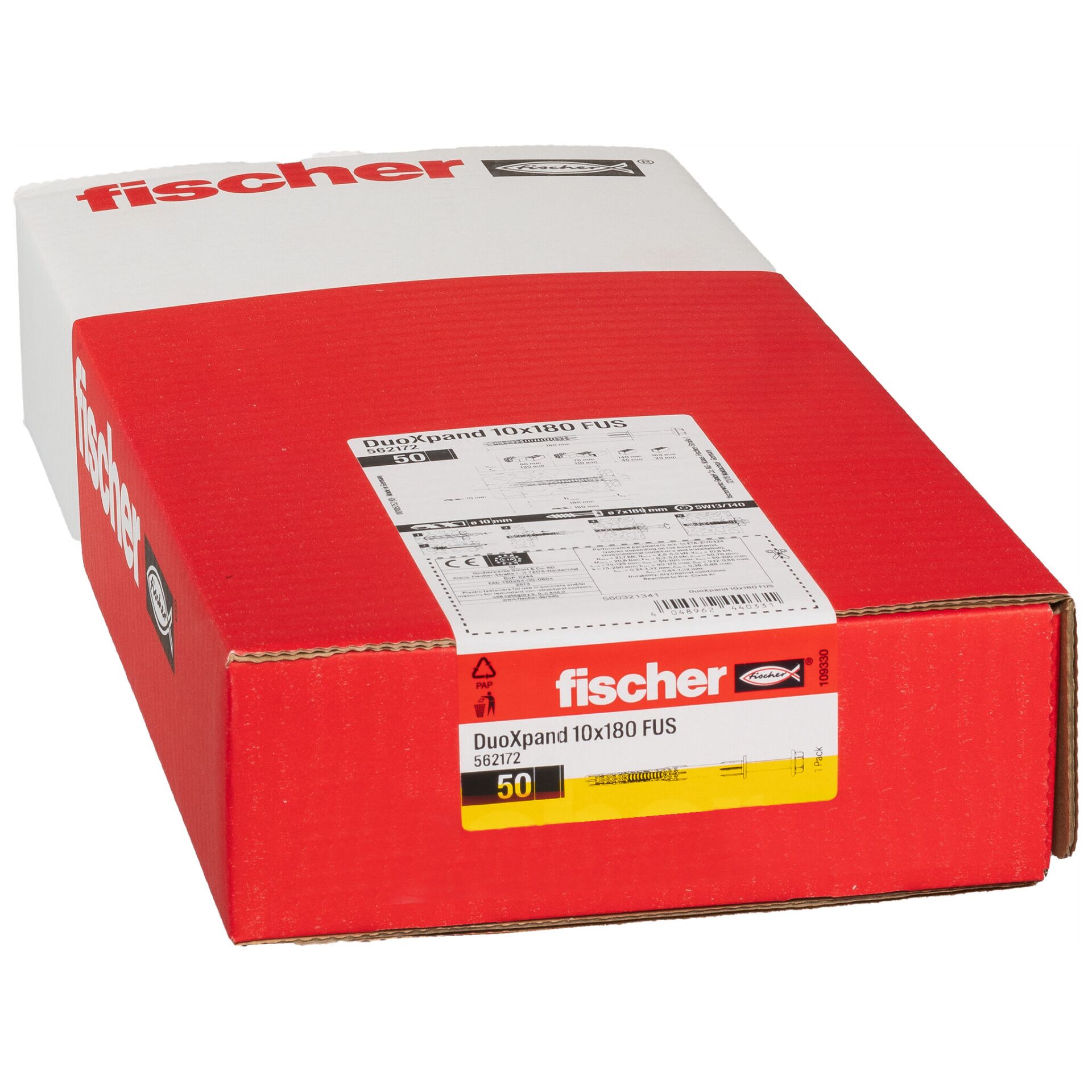

The package contains 50 plugs with matching screws.
