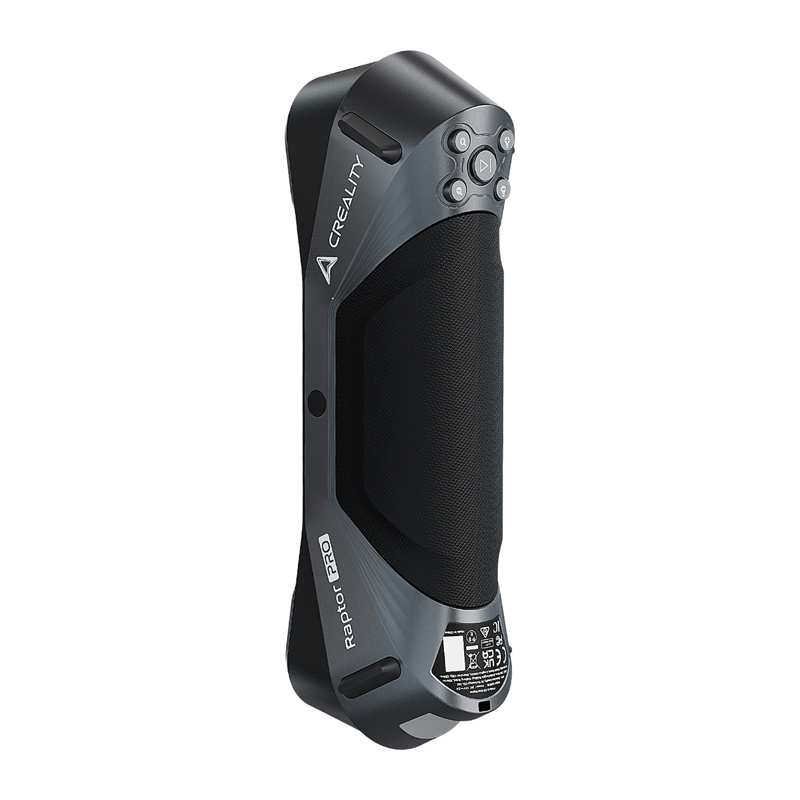

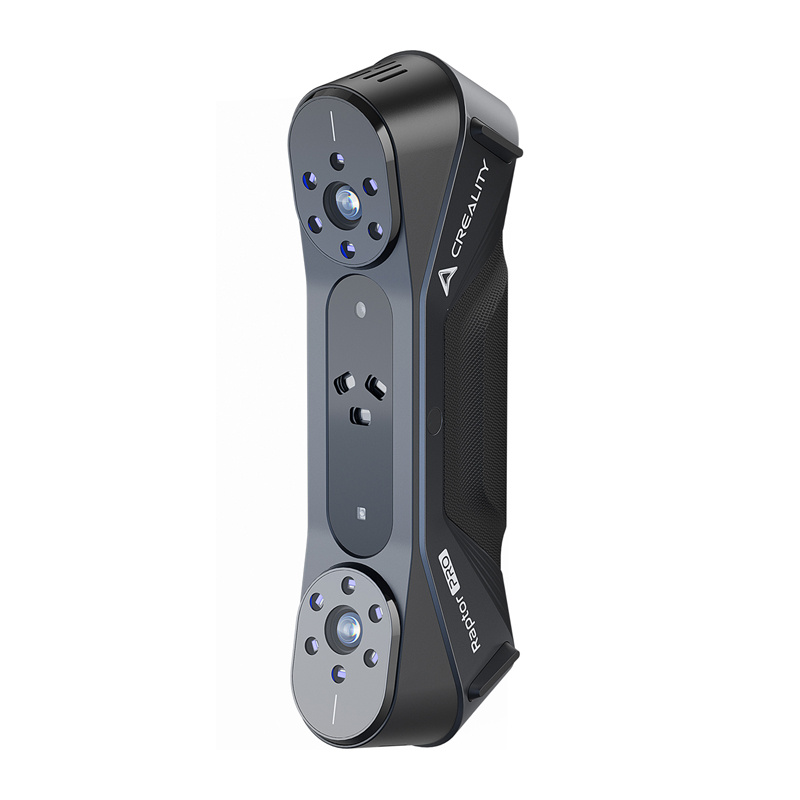

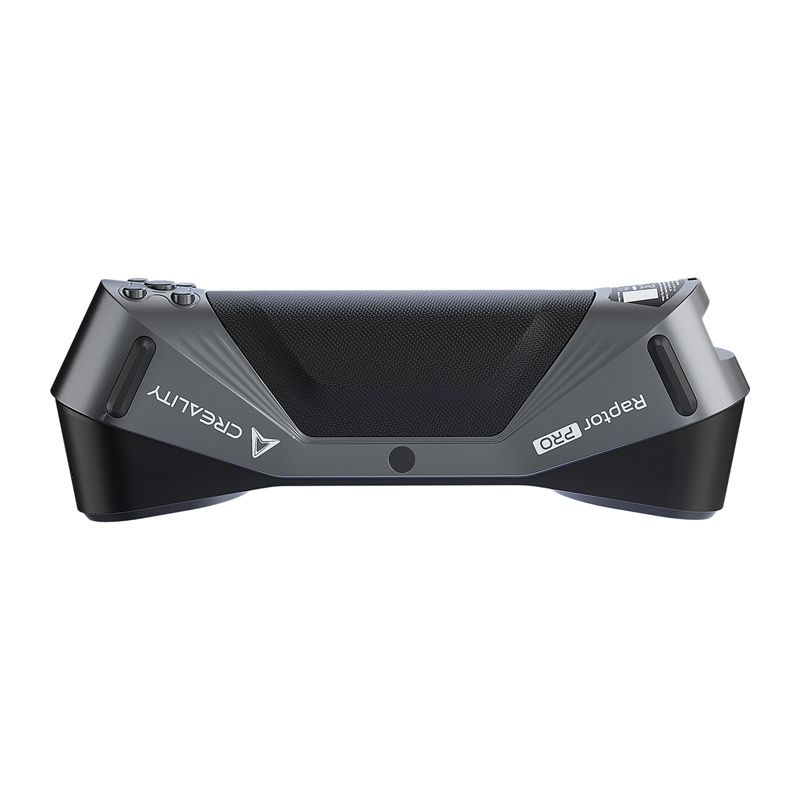

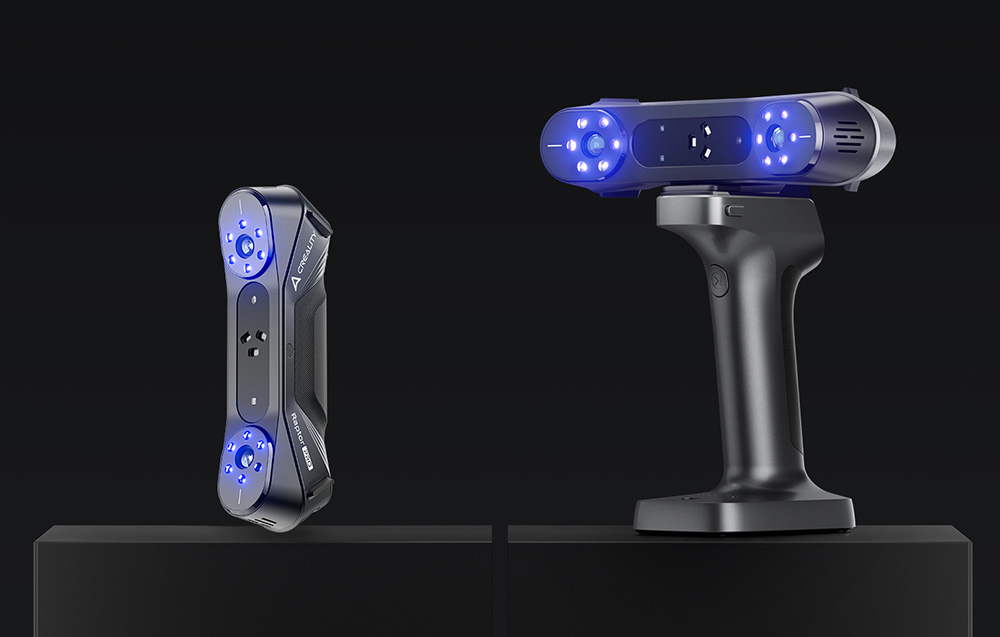

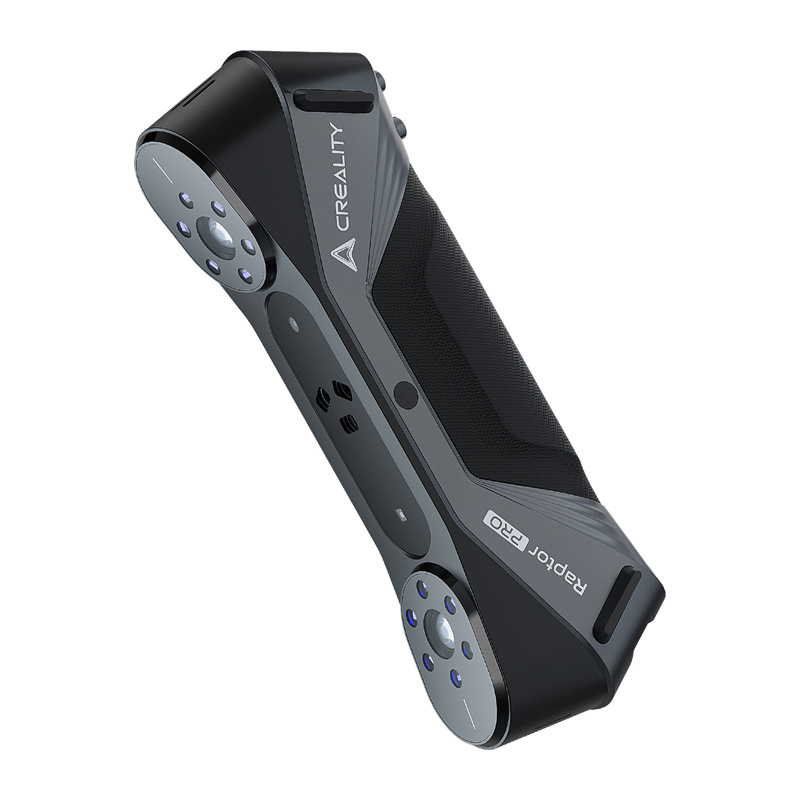

Creality CR-Scan Raptor Pro 3D Scanner, Blue Laser and NIR

The Creality CR-Scan Raptor Pro is a high-precision 3D scanner integrating blue laser lines, near-infrared (NIR) structured light, and full-color RGB imaging for engineering, automotive, industrial, and design tasks.

Key Features

Dual blue laser scanning system: 22 cross lines for wide coverage and 7 parallel lines (0.1 mm) for sharp details
Wide scanning range accommodating objects from 5 × 5 × 5 mm up to 4000 × 4000 × 4000 mm
Volumetric accuracy of 0.02 mm + 0.08 mm/m supported by a temperature compensation algorithm
High performance reaching up to 660,000 points per second and frame rates up to 60 fps
Markerless scanning for feature-rich objects and spray-free scanning on black and metallic surfaces
Dedicated Face & Body mode capable of completing a full body scan in as little as 2 minutes
2.3 MP 3D camera with low-distortion optical components

Scanning technology	Blue laser lines, NIR structured light, RGB
Blue laser configuration	22 cross lines / 7 parallel lines
Laser line thickness	0.1 mm (7-line mode)
Volumetric accuracy	0.02 mm + 0.08 mm/m
Measurement rate	Up to 660 000 points/s
Frame rate	Up to 60 fps (laser) / up to 30 fps (NIR)
Scannable object size	5 × 5 × 5 mm – 4000 × 4000 × 4000 mm
3D camera resolution	2.3 MP
Ambient light resistance	Up to 100 000 lux (22 lines) / up to 50 000 lux (7 lines)

What object sizes can the Creality CR-Scan Raptor Pro measure?

It can capture objects ranging from 5 × 5 × 5 mm to 4000 × 4000 × 4000 mm, covering small precision parts up to large industrial components and human bodies.

Is spray required when scanning black or metallic objects?

No, the device has high material adaptability that allows scanning black and metallic surfaces without using matting sprays.

How quickly can it complete a full body scan?

With the dedicated Face & Body mode, a complete human body scan can be performed in as little as 2 minutes.
