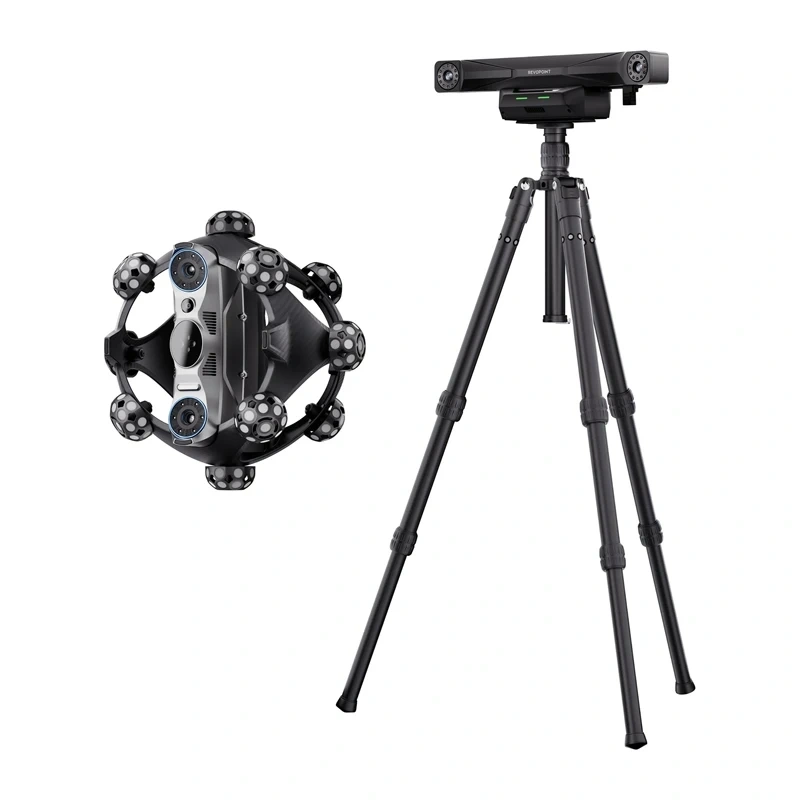

Revopoint Trackit SR CMM Optical 3D Scanner

Revopoint Trackit SR CMM Optical 3D Scanner — image 3

Revopoint Trackit SR CMM Optical 3D Scanner — image 4

Revopoint Trackit SR CMM Optical 3D Scanner — image 5

Price: 4475.80 €

Products ID:	177790
Manufactured by:	Revopoint
Availablity:	Ready to Order
Delivery Time	5-12 business days
EAN:	6975577882141

Delivery options to:

Latvia

Office pickup

Free

Estimated: 25.09.–06.10.

Courier delivery

9.90 €

Estimated: 29.09.–08.10.

Revopoint Trackit SR CMM Optical 3D Scanner

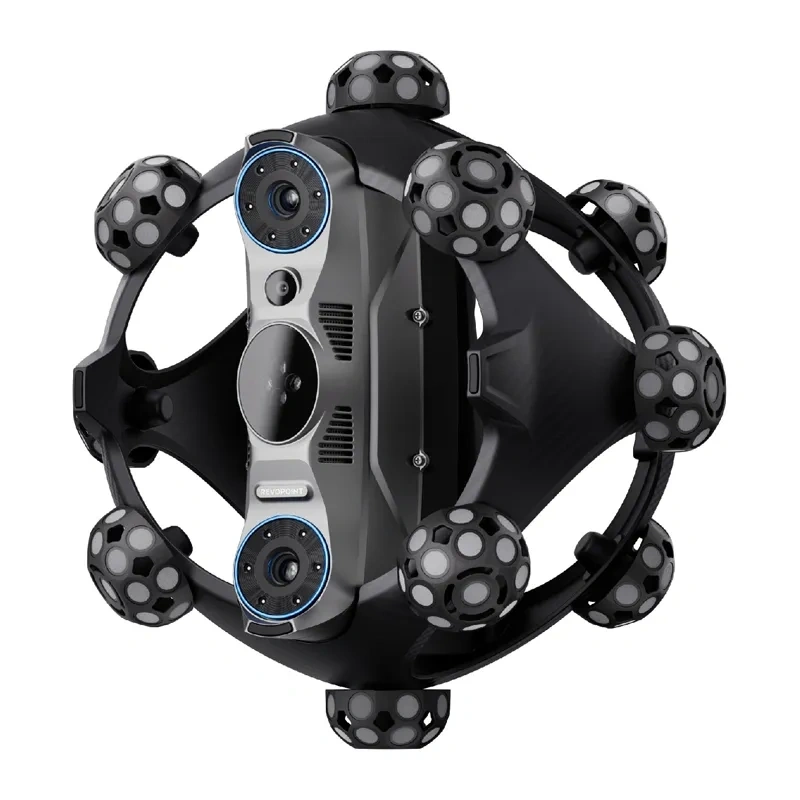

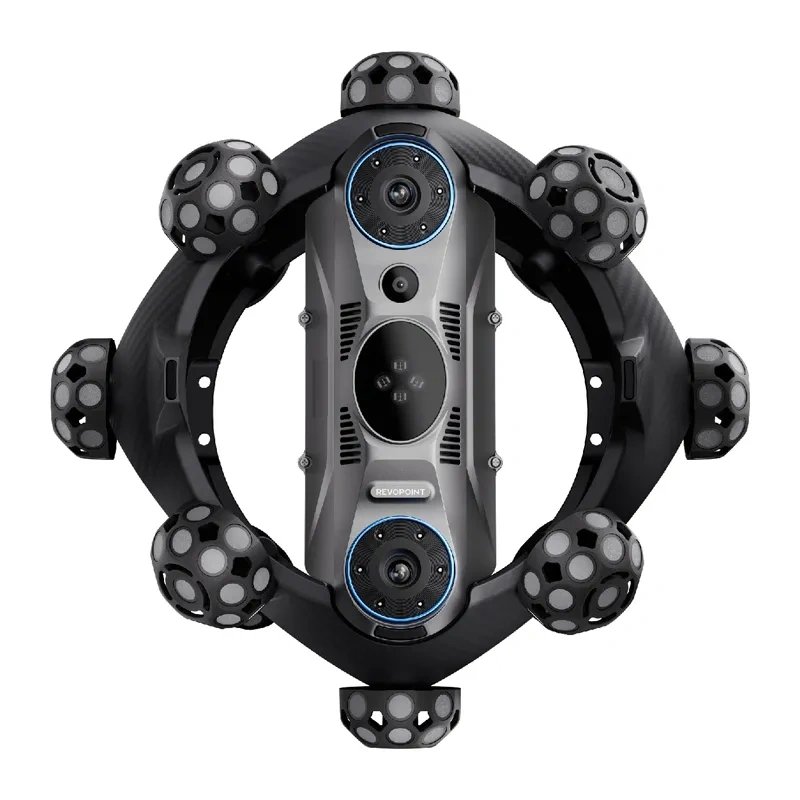

The Revopoint Trackit SR CMM is an optical 3D scanner equipped with an optical tracking system for accurate markerless measurements on various objects.

Key Features

Three scanning modes: 30 intersecting laser lines, 17 parallel laser lines, and a single laser line for deep holes
Markerless optical tracking with a volumetric accuracy of 0.02 + 0.04 mm × L (m)
Wireless operation via Wi-Fi 6 and lightweight 1 kg scanner body
Outdoor operation support in lighting conditions up to 100,000 lux
Includes Revo Measure (1-year subscription for Windows 10/11) and Revo Track software

Manufacturer	Revopoint
Model	Trackit SR Standard
Single-frame accuracy	0.02 mm
Maximum distance between connection points	0.05 mm
Maximum scanning speed	2,000,000 points per second
Light source	Precision mode: 30 blue cross-shaped laser lines / Long-range mode: 17 blue parallel laser lines / Deep-hole mode: 1 blue single laser line
Operating distance	Crossing laser lines: 200–400 mm / Parallel laser lines: 250–500 mm / Single laser line: 200–400 mm
Single capture area at the closest distance	123 × 130 mm at 200 mm
Single capture area at the farthest distance	330 × 325 mm at 500 mm
Wi-Fi version	6
Weight	1 kg
Dimensions	250 × 250 × 177 mm
Operating temperature	0 ℃ - 30 ℃
Supported file formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Construction Material	Frame: carbon fiber / Housing: polycarbonate
Recommended size of scanned objects	0.01–4 m
Volume measurement accuracy (tracking system)	0.02 mm + 0.04 mm × L (m)

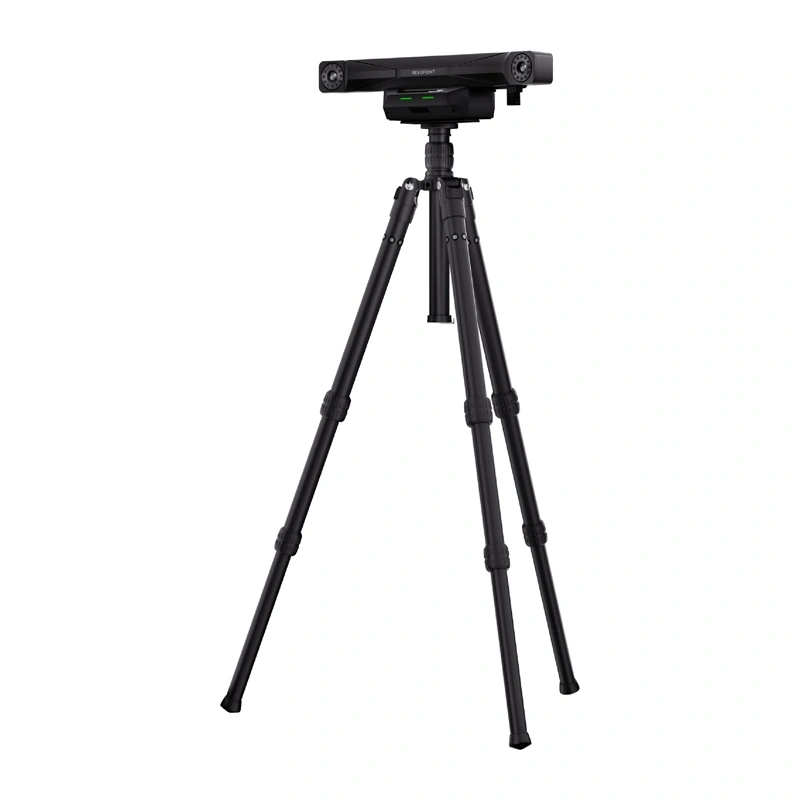

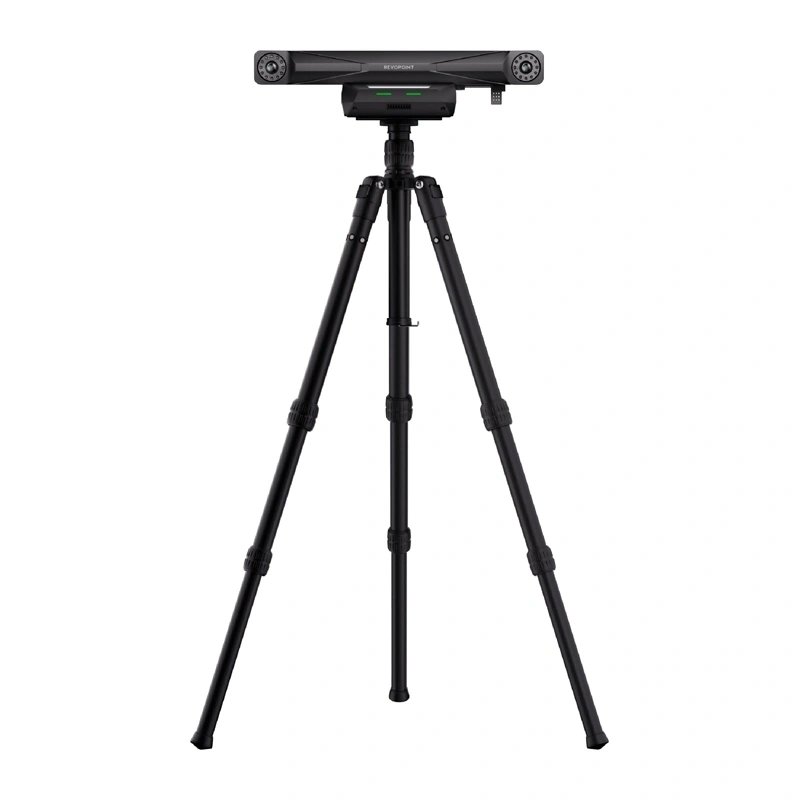

Tracker working distance	800 mm – 2,500 mm
Minimum tracking frame size	587 × 569 mm at 800 mm
Maximum tracking frame size	2075 × 1778 mm at 2500 mm
Tracking volume	3 m³
Tracker weight	1.5 kg
Tracker dimensions	441 × 111 × 103 mm
Tracking Band	NIR
User-Performed Recalibration	Manual Calibration
Supported Accessories	Calibration plate, calibration rod, mounting block, battery holder

What laser modes are available on the Revopoint Trackit SR?

The scanner offers three operating modes: precision mode with 30 blue cross-shaped laser lines, long-range mode with 17 parallel laser lines, and deep-hole mode with 1 single laser line.

What software is included in the package?

The package includes a one-year subscription to Revo Measure software (compatible with Windows 10/11) and Revo Track software for measurements and tracking.
