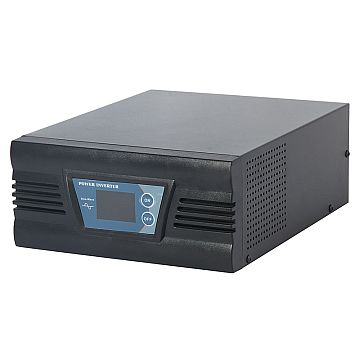

Pure Sine Wave Inverter 300W 12V to 230V with UPS Function
Price: 144.70 €
| Products ID: | 169698 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000820047 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 31.08.–07.09.
Parcel-machine delivery
Free
Estimated: 02.09.–09.09.
Courier delivery
4.90 €
Estimated: 02.09.–09.09.
This continuous 300W pure sine wave inverter operates on 12V DC battery systems to deliver 220V/230V/240V AC power. It includes built-in UPS functionality with a 5ms bypass transfer time and an integrated 25A battery charger.
Key Features
- Continuous output power of 300W with pure sine waveform
- 12V DC battery input range (10.5V–14.3V DC)
- Maximum charging current of 25A
- 5ms AC bypass transfer time in UPS mode
- LCD and LED status indicators for real-time monitoring
- Automatic overload, short circuit, and over-temperature protection
| Continuous Output Power | 300W |
|---|---|
| Output Waveform | Pure Sine Wave |
| Battery Voltage Range | 12VDC (10.5~14.3VDC) |
| Max. Charging Current | 25A |
| Input Nominal Voltage | 230Vac (120V~275Vac range) |
| Output Voltage | 220Vac / 230Vac / 240Vac |
| Output Frequency | 50Hz ± 0.1Hz |
| AC Bypass Transfer Time | 5ms |
| Efficiency | > 85% |
| Operating Temperature | -20 °C to +55 °C |
| Unit Dimensions (L x W x H) | 320 x 130 x 190 mm |
| Unit Weight | 9kg |
What is the transfer time in UPS mode?
The AC bypass transfer time in UPS mode is 5 ms.
What battery voltage range does this inverter support?
It is designed for 12V DC battery systems with a voltage range of 10.5V to 14.3V DC.
What type of output waveform does the device produce?
The inverter outputs a pure sine wave with a frequency of 50Hz ± 0.1Hz.
