Portable 2-in-1 Mini Oscilloscope and Signal Generator FNIRSI DSO510, 10 MHz
Price: 46.10 €
| Products ID: | 185019 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 5907085527321 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 28.09.–07.10.
Parcel-machine delivery
Free
Estimated: 30.09.–09.10.
Courier delivery
4.90 €
Estimated: 30.09.–09.10.

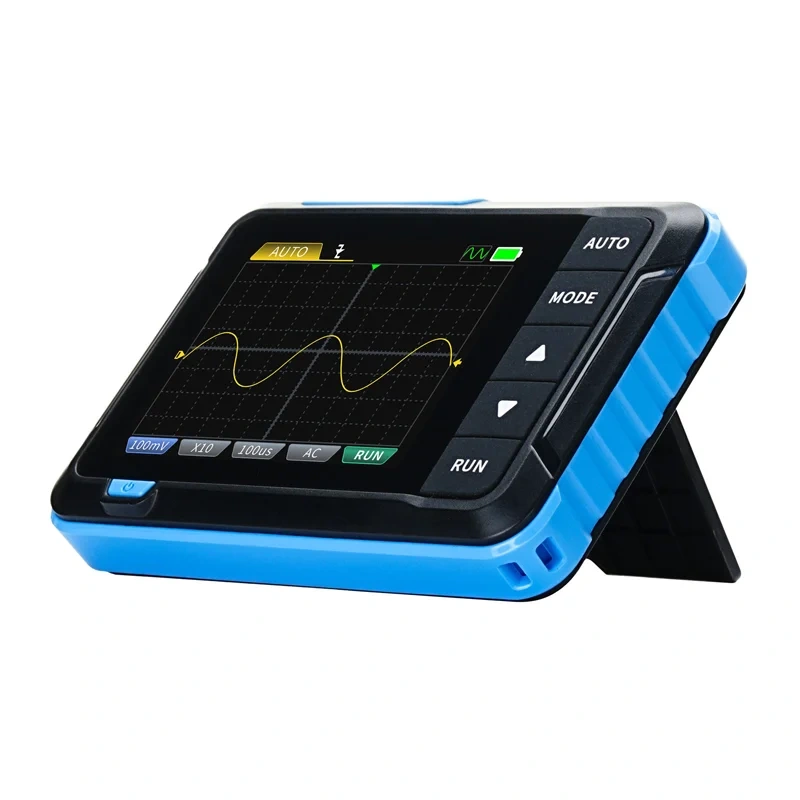

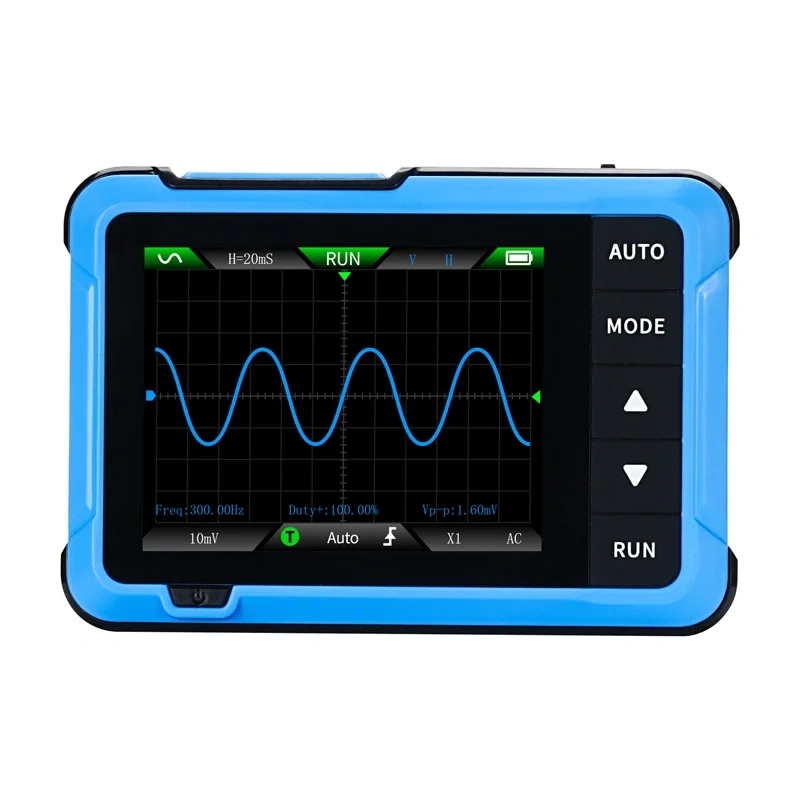

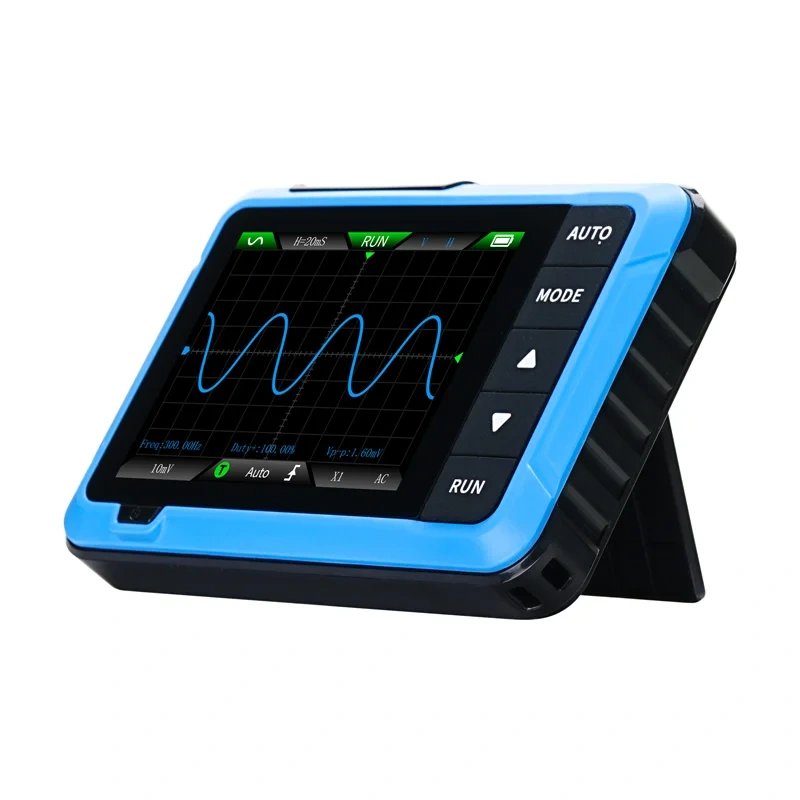

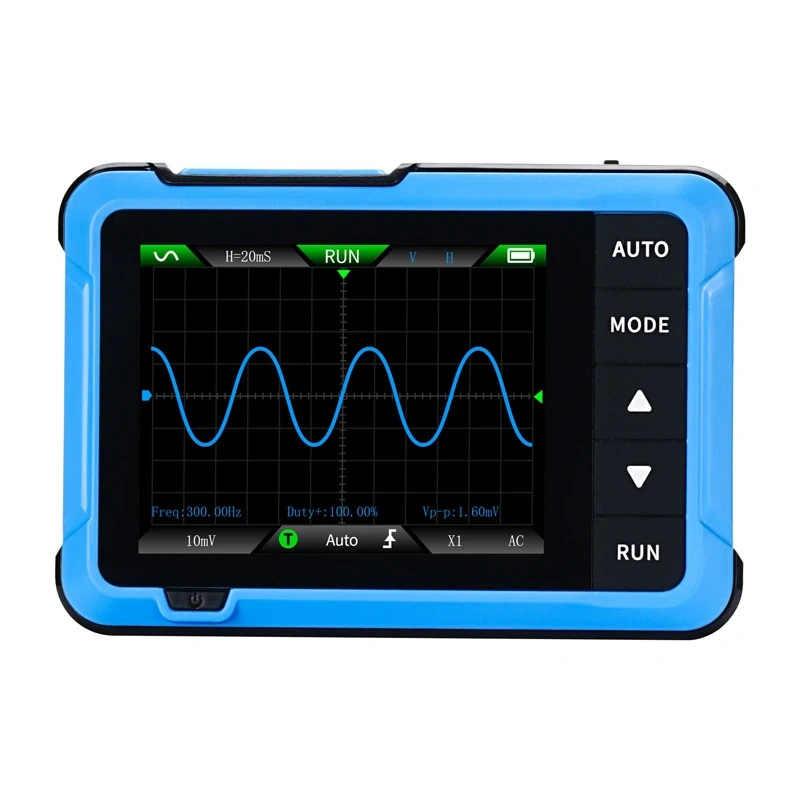

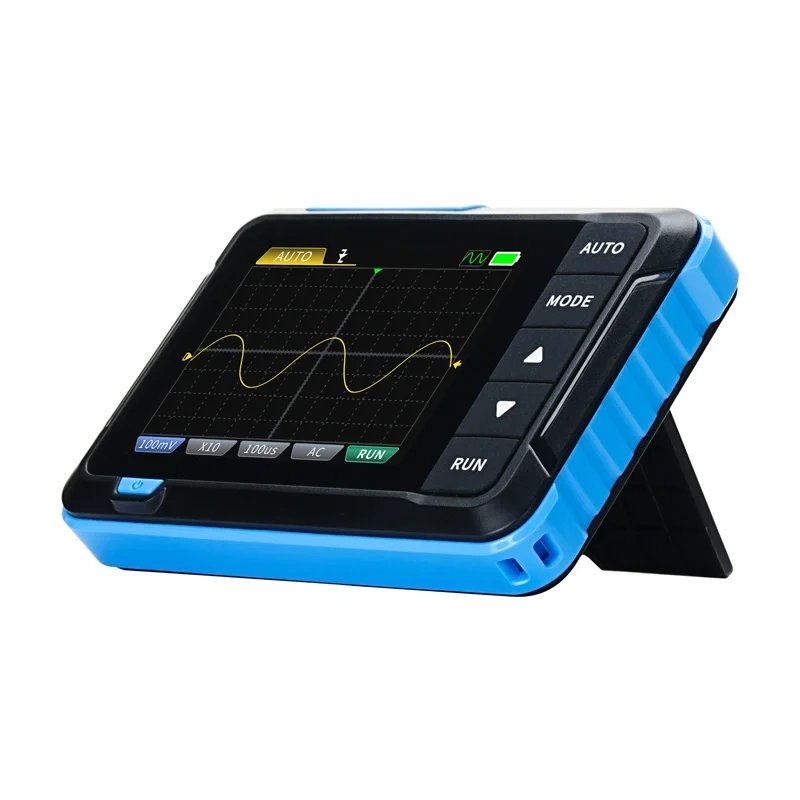

The FNIRSI DSO510 is a handheld 2-in-1 test instrument combining a 10 MHz bandwidth oscilloscope and a built-in signal generator in an ultra-thin, lightweight design with an adjustable 90° folding stand.
Key Features and Functionality
- Integrated 10 MHz oscilloscope and 13-waveform signal generator
- Sampling rate up to 48 Ms/s and voltage measurement up to 400 V
- Adjustable afterglow display for tracking dynamic waveforms and transients
- Waveform stopping, zooming, and panning for detailed signal examination
- Built-in 1000 mAh lithium-ion battery rechargeable via USB-C
| Manufacturer | FNIRSI |
|---|---|
| Model | DSO510 |
| Bandwidth | 10 MHz |
| Sampling frequency | 48 Ms/s |
| Time base range | 50ns - 20s |
| Measuring values | 12 types |
| Trigger mode | Automatic, single, normal |
| Voltage measurement range | 400 V |
| Calibration square wave 1KHz | Supported |
| Glow function | Supported |
| Image recording | Supported |
| Trigger level display | Supported |
| Frequency | 0-50 KHz |
| Duty cycle | 0-100% |
| Amplitude | 0.1-3V |
| Waveform | 13 types |
What is included in the package?
The package includes the mini oscilloscope, probe with crocodile clip, charging cable, carrying lanyard, adapter, P6100 probe, and user manual.
What battery powers the FNIRSI DSO510?
It is powered by a built-in 1000 mAh lithium-ion rechargeable battery with a USB-C charging interface.
