3-in-1 Handheld Digital Multimeter FNIRSI DST-210 with Oscilloscope & DDS Generator

Price: 64.60 €

Products ID:	185031
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-12 business days
EAN:	5905156102293

Delivery options to:

Latvia

Office pickup

Free

Estimated: 25.09.–06.10.

Parcel-machine delivery

Free

Estimated: 29.09.–08.10.

Courier delivery

4.90 €

Estimated: 29.09.–08.10.

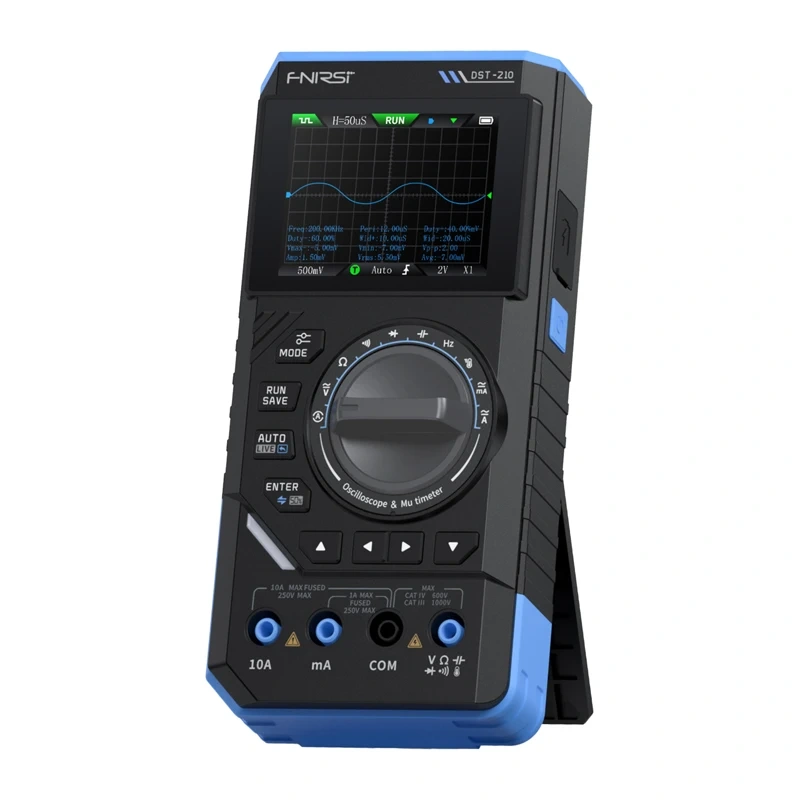

The FNIRSI DST-210 is a versatile handheld testing tool combining a True RMS digital multimeter, a portable oscilloscope, and a DDS signal generator in one device for electrical diagnostics and field service.

Key Features & Highlights

True RMS multimeter with up to 19,999 counts resolution for voltage, current, and component testing
Integrated 10 MHz oscilloscope with 48 MSa/s sampling rate and Waveform Hold capability
DDS function generator providing 13 waveform types across a 0–50 kHz range
Clear 2.8-inch TFT color screen with selectable day and night viewing modes
Built-in 3000 mAh rechargeable battery with USB-C port and protective silicone sleeve

Manufacturer	FNIRSI
Model	DST-210
Device type	3-in-1 handheld digital multimeter: True RMS multimeter, oscilloscope, DDS signal generator
Screen	2.8" color TFT display with day and night modes
Resolution	19 999 counts
Oscilloscope	10 MHz bandwidth, 48 MSa/s sampling, Auto/Normal/Single modes, Infinite Afterglow, Waveform Hold
Signal generator	DDS, 13 waveforms, 0–50 kHz, amplitude 0.1–3.0 V, duty cycle 0–100%
Voltage measurement	DC up to 1000 V, AC up to 750 V
Current measurement	AC/DC up to 9.999 A
Other measurements	Resistance, capacitance, frequency, temperature, diode test, continuity test, Live/Wire
Power supply	3000 mAh battery, USB-C charging, auto power off 15/30/60 min
Construction	Reinforced housing with silicone cover, intelligent overload protection

What is included in the package with the FNIRSI DST-210?

The package includes the FNIRSI DST-210 unit, a P6100 oscilloscope probe, test leads, a probe with alligator clips, a USB cable, and a user manual.

What are the main oscilloscope specifications of the DST-210?

It features a 10 MHz bandwidth, 48 MSa/s real-time sampling rate, Auto/Normal/Single trigger modes, Infinite Afterglow, and Waveform Hold functionality.
