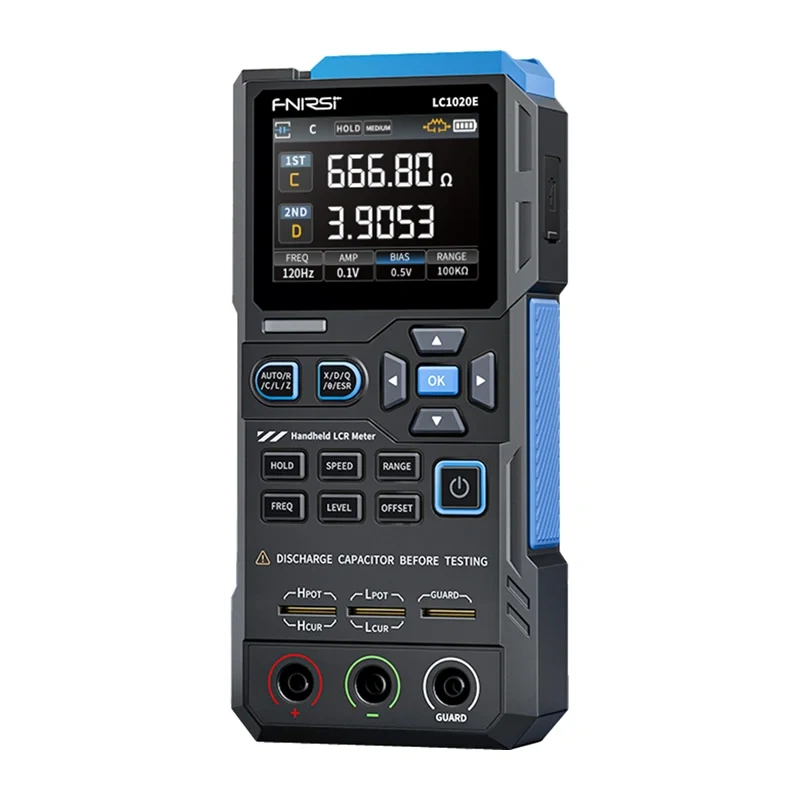

Handheld LCR Meter FNIRSI LC1020E 2.8" TFT

$Handheld LCR Meter FNIRSI LC1020E 2.8\$

Price: 69.10 €

Products ID:	185030
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-12 business days
EAN:	5905156102187

Delivery options to:

Latvia

Office pickup

Free

Estimated: 25.09.–06.10.

Parcel-machine delivery

Free

Estimated: 29.09.–08.10.

Courier delivery

4.90 €

Estimated: 29.09.–08.10.

The FNIRSI LC1020E is a compact handheld LCR meter engineered for fast and accurate measurement of electronic components in laboratory and field environments.

Key Features

Automatic recognition of resistors, capacitors, and inductors
Five test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz
2.8-inch color TFT LCD display with dual parameter readout
Open circuit and short circuit calibration functions
Built-in lithium-ion battery with USB-C charging and auto power off

Manufacturer	FNIRSI
Model	LC1020E
Test frequency	100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz
Basic accuracy	0.3%
Display	2.8-inch TFT LCD display
Display resolution	Main parameter: 4.5 digits \| Secondary parameter: 4.5 digits
Measurement parameters	Main parameters: AUTO / R / C / L / Z \| Secondary parameters: X / D / Q / θ (phase angle) / ESR
Measuring range	Inductance (L): 0–100 H \| Capacitance (C): 0–100 mF \| Resistance (R): 0–10 MΩ
Internal polarization (Bias)	0.0 V, 0.5 V
Test voltage level	0.1 V, 0.3 V, 0.6 V
Calibration functions	Open circuit calibration, short circuit calibration (Short)
Comparison function	Used to calculate the relative error between the measured value of the component and the nominal value, presented as a percentage, and to filter the results. It is possible to set nominal values and tolerances, with the tolerance range adjustable from 0.1% to 99.9%.
Logging function	Checks whether the measured component data meets the set nominal value and tolerance, recording the number of successful and unsuccessful measurements.
Measuring terminal configuration	Three-terminal, five-terminal
Output impedance	100 Ω
Communication interface	USB Type-C (virtual serial port)
Other settings	Language, screen brightness, and sound settings, auto power off, calibration settings, system information

What is included in the package with the FNIRSI LC1020E?

The set includes the meter, a data cable, a shorting plate, a Kelvin test clamp, test leads (black and red), and a user manual.

What components can the device identify automatically?

The meter automatically identifies whether the component under test is a resistor, capacitor, or inductor and switches to the corresponding measurement mode.
