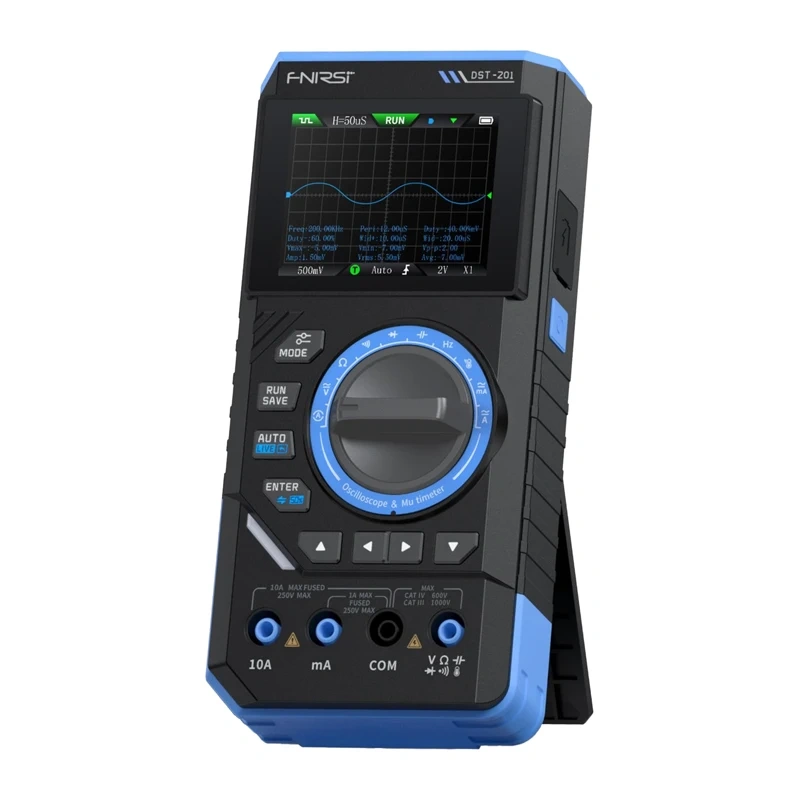

The FNIRSI DST-201 is a versatile 3-in-1 handheld test instrument combining a True RMS digital multimeter, a portable oscilloscope, and a DDS signal generator for circuit analysis and field diagnostics.

Key Features

Built-in 1 MHz oscilloscope with 5 MSa/s sampling rate and waveform hold capability
DDS signal generator with 13 waveforms across a 0–10 kHz frequency range
True RMS multimeter with 19,999 counts resolution and curve data logging
Clear 2.8-inch TFT color display supporting day and night viewing modes
Integrated 3000 mAh battery with convenient USB-C charging and auto-off timer
Durable housing equipped with a protective silicone cover for workshop use

Manufacturer	FNIRSI
Model	DST-201
Device type	3-in-1 handheld digital multimeter: True RMS multimeter, oscilloscope, DDS signal generator
Screen	2.8" color TFT display with day and night modes
Resolution	19 999 counts
Oscilloscope	1 MHz bandwidth, 5 MSa/s sampling, Auto/Normal/Single modes, Infinite Afterglow, Waveform Hold
Signal generator	DDS, 13 waveforms, 0–10 kHz, amplitude 0.1–3.0 V, duty cycle 0–100%
Voltage measurement	DC up to 1000 V, AC up to 750 V
Current measurement	AC/DC up to 9.999 A
Other measurements	Resistance, capacitance, frequency, temperature, diode test, continuity test, Live/Wire
Power supply	3000 mAh battery, USB-C charging, auto power off 15/30/60 min
Construction	Reinforced housing with silicone cover, intelligent overload protection

What items are included with the FNIRSI DST-201?

The package includes the FNIRSI DST-201 unit, a P6100 oscilloscope probe, test leads, a probe with alligator clips, a USB cable, and a user manual.

What are the output parameters of the built-in signal generator?

The DDS signal generator produces 13 different waveforms with a frequency range of 0–10 kHz, an amplitude of 0.1–3.0 V, and an adjustable duty cycle from 0% to 100%.
