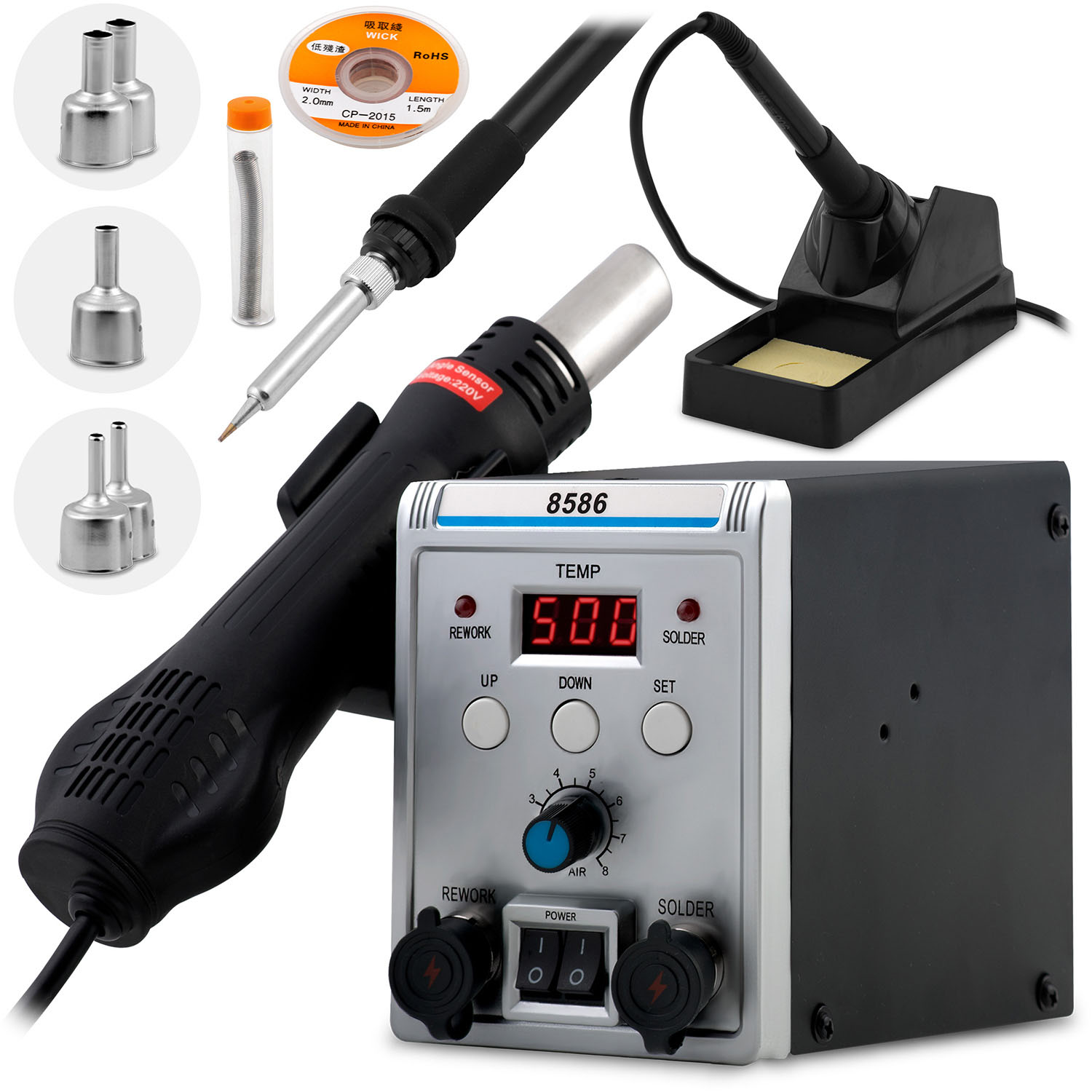

Humberg HM-29 2-in-1 Soldering and Hot Air Rework Station 700W

2-in-1 Soldering Station 700W

Model: HM-294

Discover the versatile Humberg HM-29 700W 2-in-1 Soldering Station, a powerful tool combining a precision soldering iron with a hot air rework gun. It's the perfect solution for intricate SMD repairs, BGA reballing, and traditional soldering tasks, delivering professional-grade results for any electronics project.

Key Features:

• Powerful and Durable: Features a 700W hot air station (100-500°C) and a 60W soldering station (200-500°C).
• Brushless Fan: Ensures a longer lifespan and stable operation with a gentle, consistent airflow.

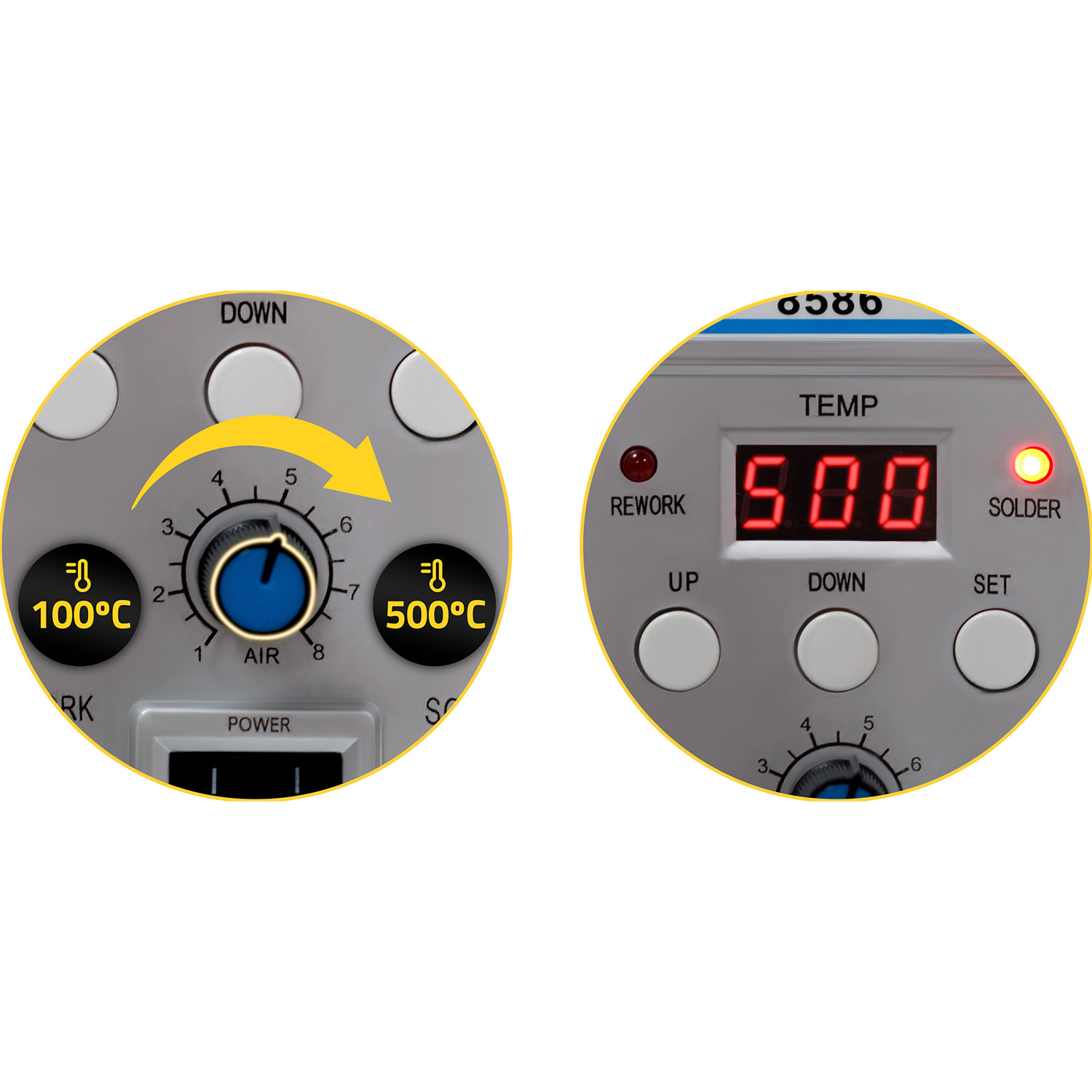

• Temperature Calibration: Allows for precise temperature adjustments to meet the needs of any task.
• Automatic Sleep Function: Enhances safety and saves energy by entering sleep mode when the temperature drops below 80°C.
• Complete Kit: Comes with 5 interchangeable nozzles, desoldering wick (2 mm, 1.5 m), and 10g of solder wire.

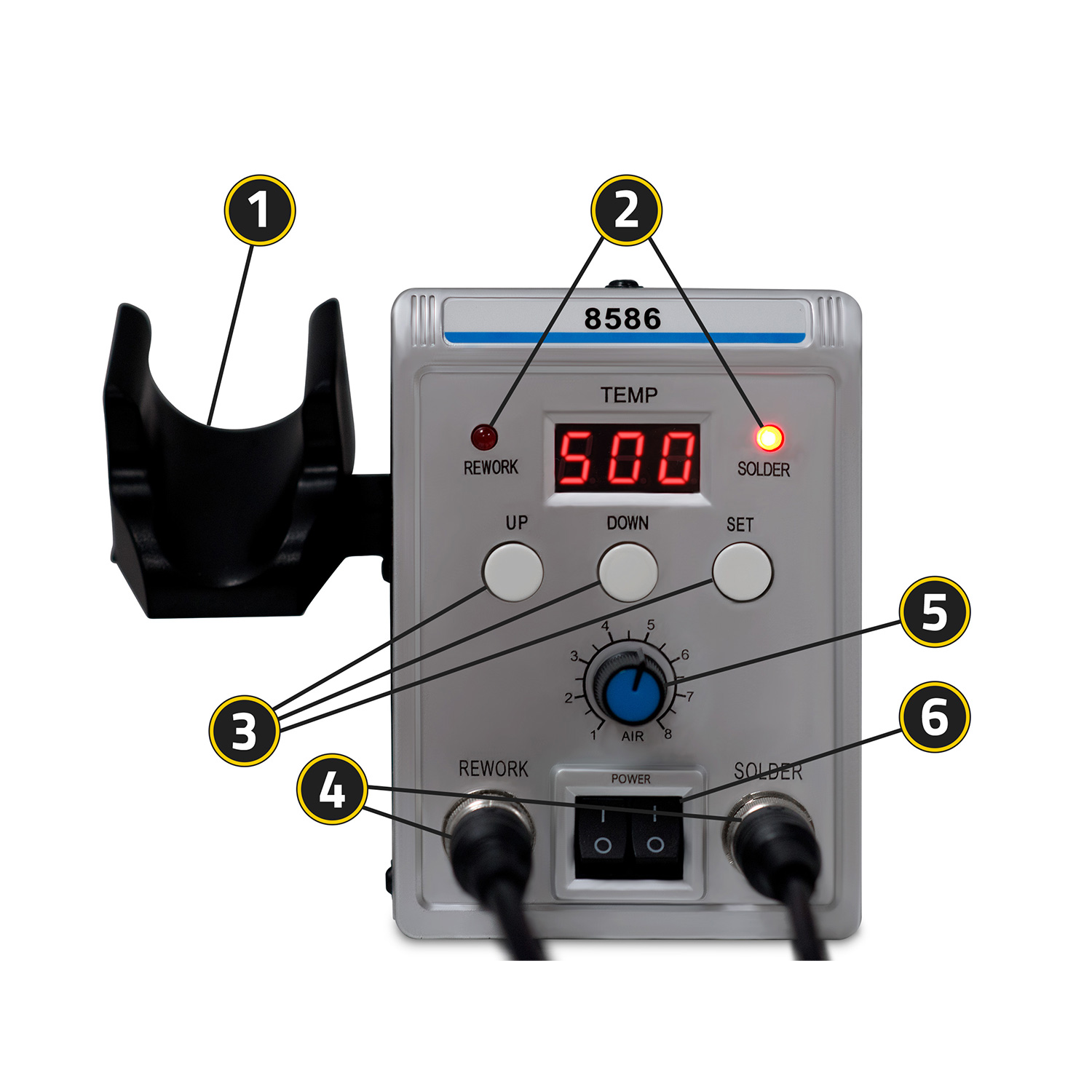

• User-Friendly Design: A clear LCD display and simple controls make operation straightforward and convenient.

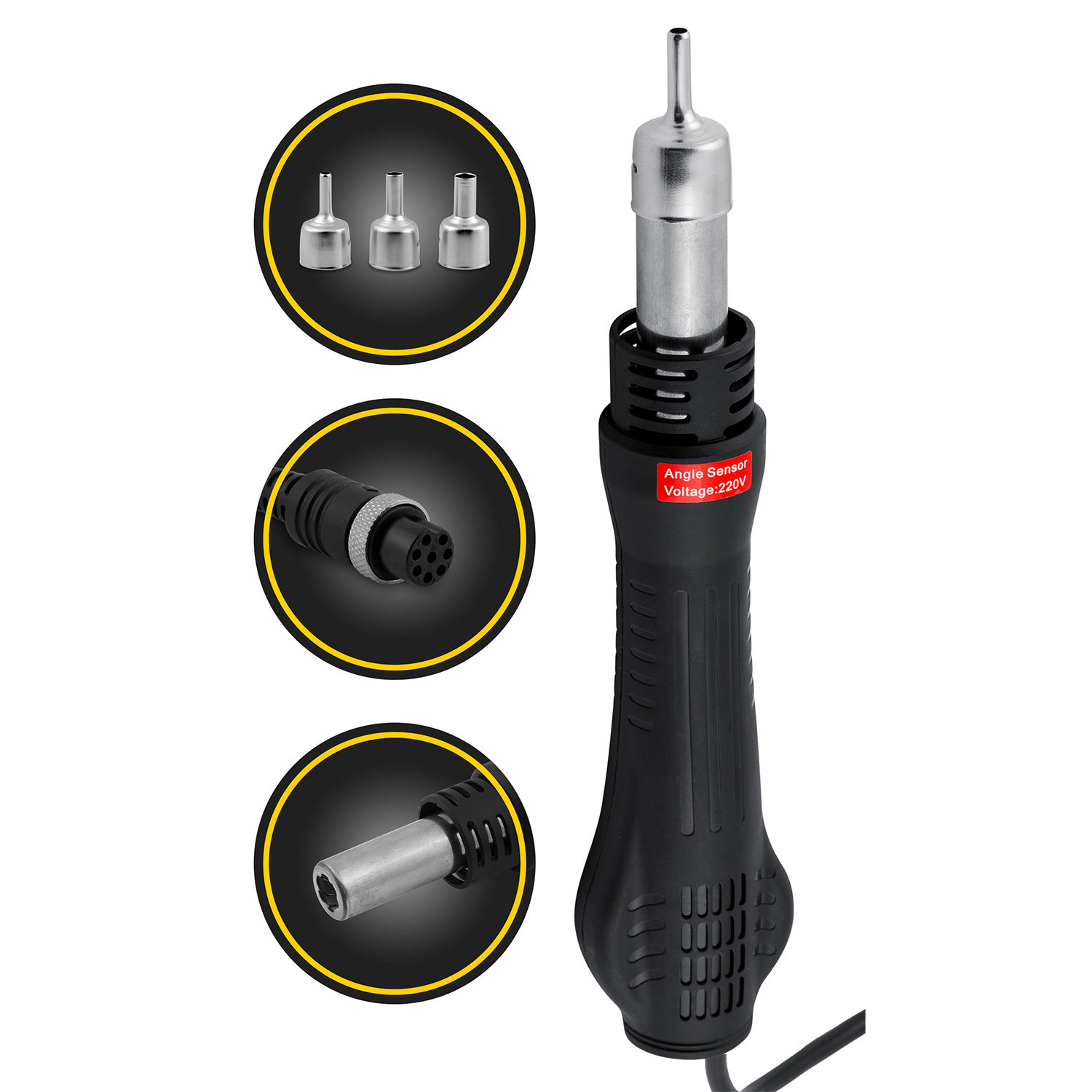

Hot Air Rework Gun Components

• Hot Air Handpiece: Equipped with a position sensor that automatically adjusts or shuts off airflow depending on its position.
• 5 Air Nozzles: Various diameter nozzles allow you to direct the hot air stream with precision.
• Internal Heating Element: Hot air flows through the heater and is then directed through the nozzles onto the components being worked on.

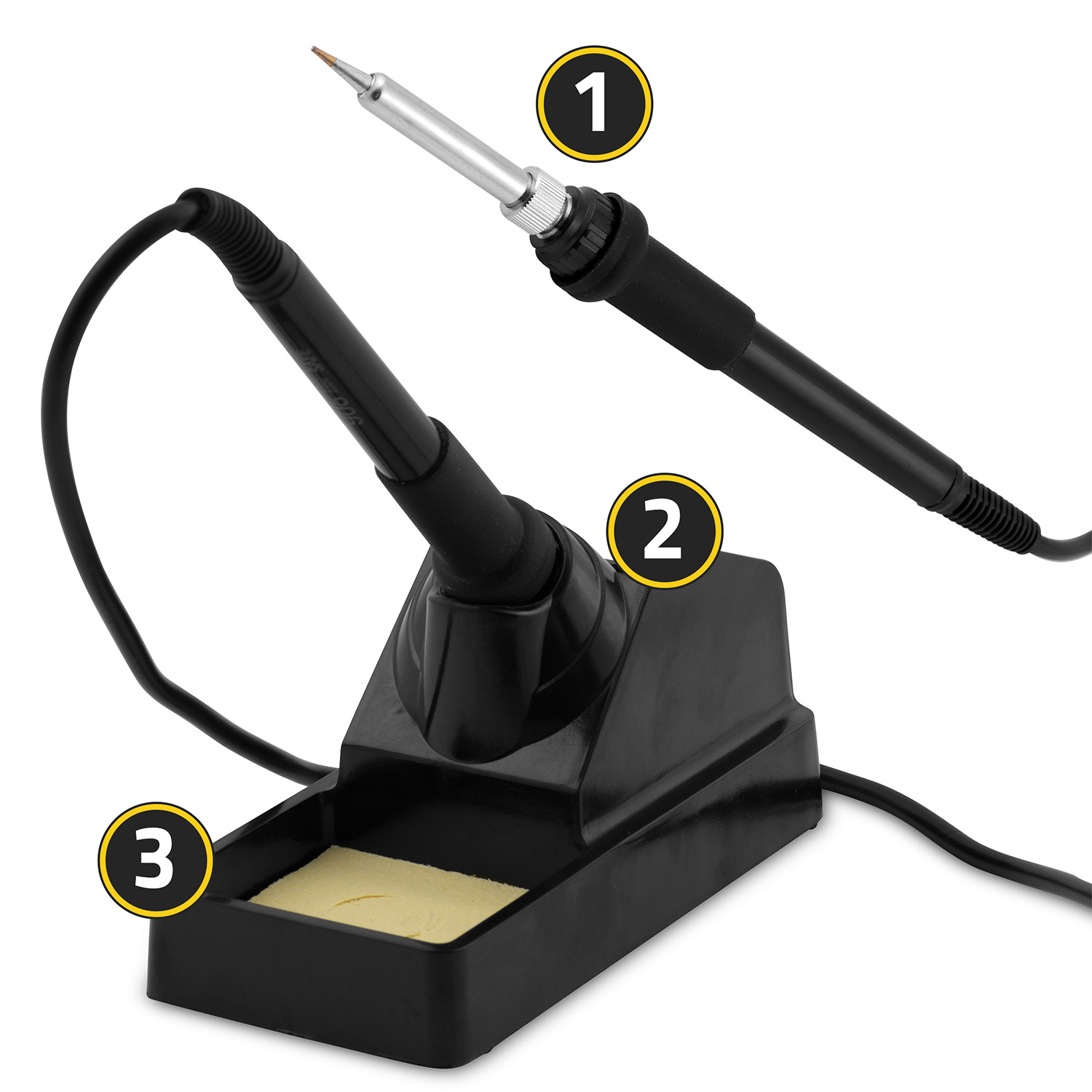

Soldering Iron Components

• Soldering Iron Handpiece: Designed for precision soldering. The conical tip is perfect for working with fine components, such as SMD elements.
• Soldering Iron Holder: Provides a safe place to rest the hot iron when not in use.
• Tip Cleaning Sponge: Located in the base of the stand, it helps keep the soldering tip clean from excess solder and contaminants.

Two Operating Modes: Soldering Iron & Hot Air

This station's dual functionality makes it a versatile and essential tool for any workshop.

Hot Air Rework Mode

• Temperature: 100-500°C
• Max Power: 700 W
• Applications: Desoldering SMD components, BGA reballing, heating heat-shrink tubing, and repairing integrated circuits.

Soldering Iron Mode

• Temperature: 200-500°C
• Max Power: 60 W
• Applications: Working with cables and connectors, soldering through-hole (THT) components, and fine SMD work.

Technical Specifications:

• Hot Air Station Power: 700 W
• Air Temperature Range: 100-500°C
• Soldering Iron Power: 60 W
• Soldering Iron Temperature Range: 200-500°C
• Fan: Brushless with gentle airflow
• Accessories: 5 air nozzles, desoldering wick (2 mm, 1.5 m), solder wire (10 g)
• Display: LCD
• Power Supply: 230 V

Choose the trusted quality of HUMBERG tools and take your electronics work to the next level with this multifunctional soldering station.
