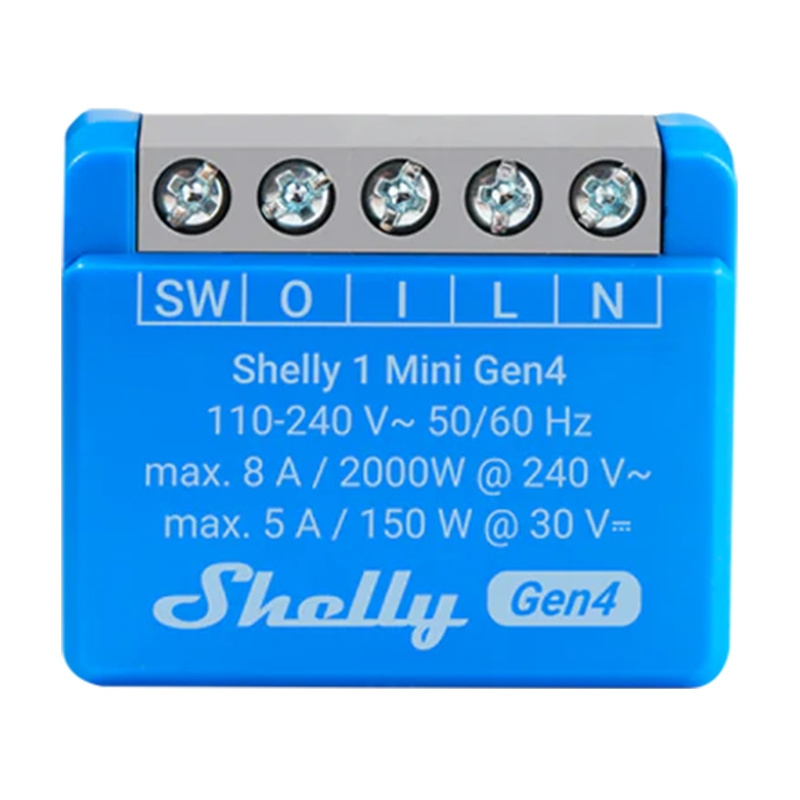

Shelly 1 Mini Gen4 Controller Zigbee/Matter

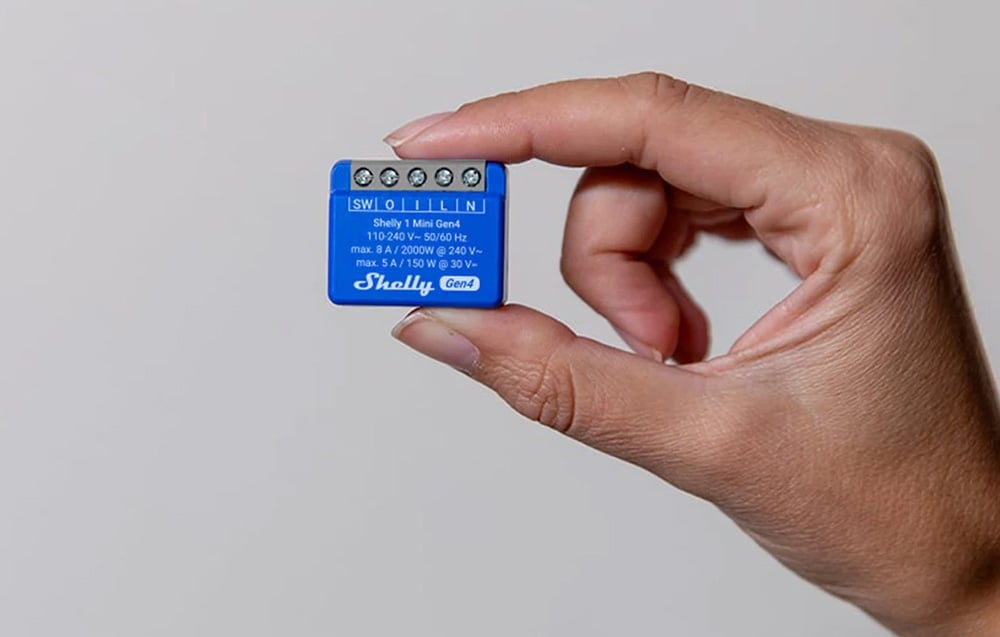

The Shelly 1 Mini Gen4 is a powerful relay controller that, despite its small size (29 x 34 x 16 mm), offers support for multiple communication standards, including Wi-Fi, Zigbee, Bluetooth and Matter. It can be mounted in junction boxes, behind outlets and in areas where mounting space is limited. Thanks to its potential-free contacts, the device can be used in applications that require galvanic separation of circuits, such as for controlling a gate, relay, bell or automation system regardless of their operating voltage. It also supports schedules, scenes, scripts and integrates with home automation systems such as Google Home, Alexa, and Samsung SmartThings.

Extensive connectivity and Matter protocol compatibility

The Shelly 1 Mini Gen4 controller offers communication via Wi-Fi (802.11 b/g/n), Zigbee (802.15.4) and Bluetooth 5.0. The device also acts as a BLE gateway and Wi-Fi and Zigbee signal booster for other IoT devices. Thanks to its compatibility with the Matter protocol, it can be integrated into any ecosystem that supports the standard, which increases its versatility and simplifies configuration in a variety of home environments.

Potential-free contacts and operation with different voltages

The Shelly 1 Mini Gen4 has the advantage of being able to control both low-voltage (30 VDC) and mains-powered (up to 240 VAC) devices. Thanks to the presence of a potential-free contact (dry contact), it can also be used in situations requiring an isolated relay, such as controlling gates, bells or lighting.

Advanced scheduling and scene functions

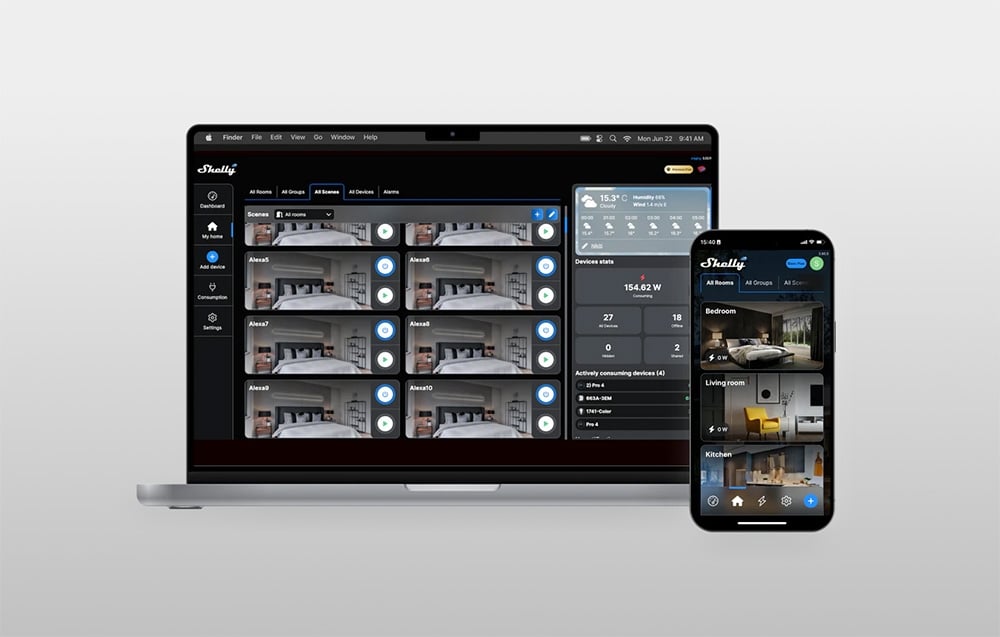

The Shelly 1 Mini Gen model allows you to set as many as 20 schedules, so you can schedule equipment to automatically turn on or off at specific times on selected days of the week. In addition, it supports the creation of scenes, i.e. sets of actions triggered simultaneously or sequentially in response to an event, such as turning on several devices when motion is detected. Schedules and scenes are configured using the Shelly Smart Control app, available free of charge for mobile devices and computers.

Integrations and full local or remote control

The device can be integrated not only with systems from major voice assistant manufacturers, but also with local systems via HTTP/HTTPS, MQTT, WebHooks or KNX net/IP APIs. Shelly 1 Mini Gen4 works both locally (without access to the cloud) and over the Internet, allowing full control regardless of where the user is. A built-in web interface allows direct configuration from a browser.

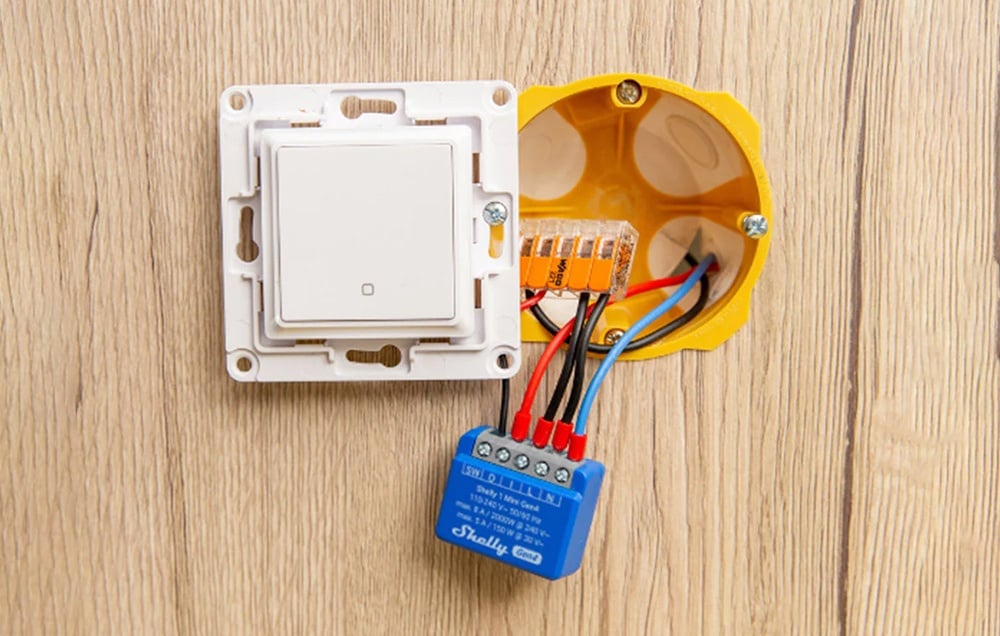

High installation flexibility

The controller's housing is made of plastic and allows installation in installation boxes. Despite its compact size, the device houses an advanced ESP-Shelly-C68F microcontroller with 8 MB of flash memory, allowing it to handle scripting and real-time functions.

General

Physical parameters

Environmental conditions

Electrical parameters

Output circuit parameters

Sensors and measurements

Wi-Fi

Bluetooth

Zigbee

Microprocessor unit

Firmware features
