Controller Shelly Qubino Wave Shutter
-12%
| Products ID: | 103578 |
|---|---|
| Availablity: | SOLDOUT! |
| EAN: | 3800235269008 |

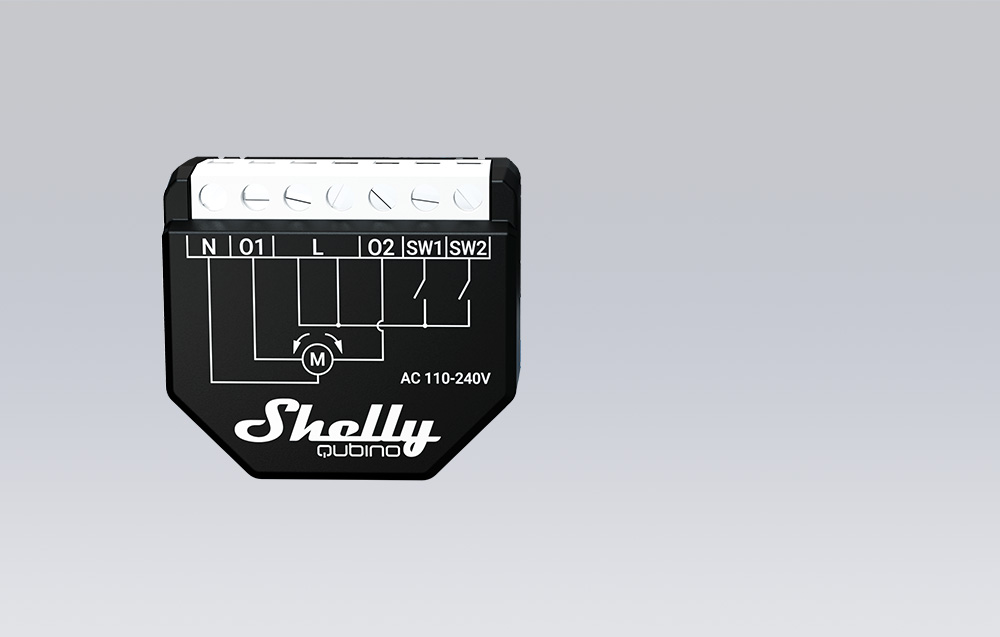

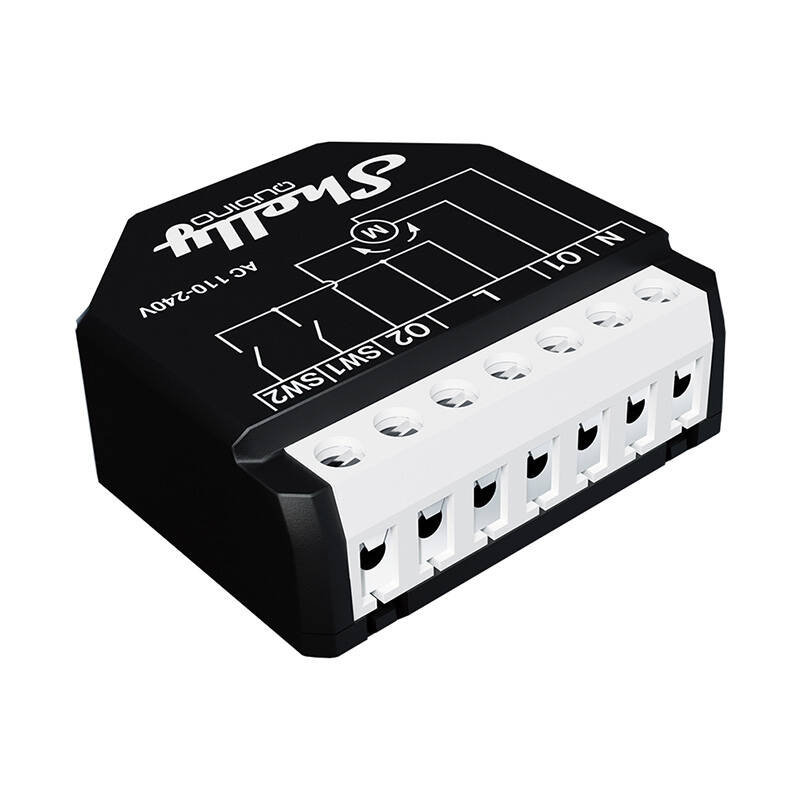

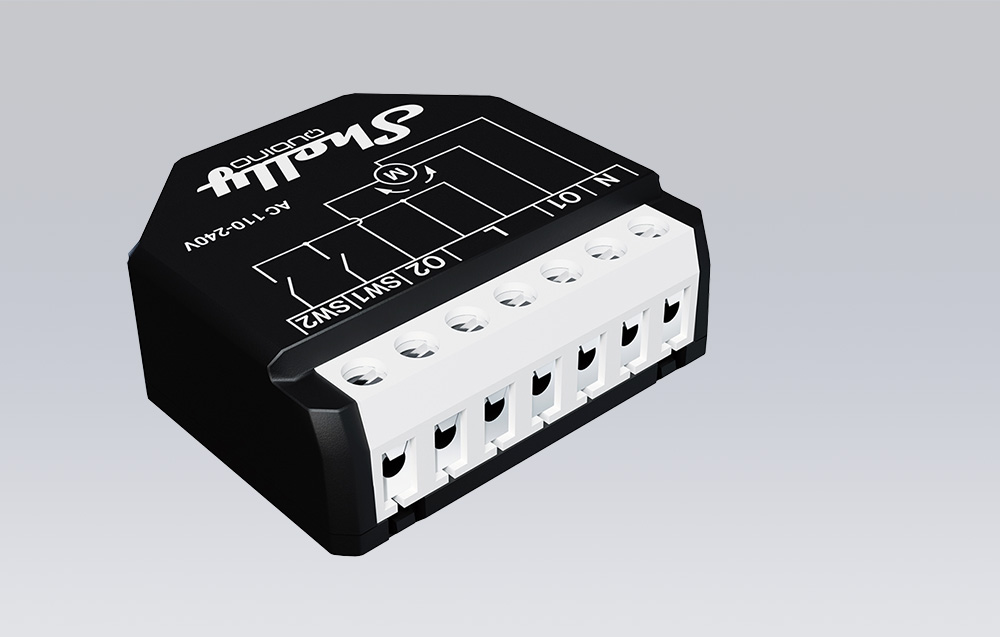

Shelly Qubino Wave Shutter Controller
The Shelly Qubino Wave 2PM Shutter Controller is the perfect solution for those who want full control over roller shutters and other devices powered by bidirectional AC motors. With advanced features, you will save energy, gain comfort and integrate into your smart home ecosystem. See what the Shelly Qubino Wave 2PM controller can offer you!
Roller shutters tailored to your routine
Do you want your home to be in sync with your daily routine? With Shelly it will be possible! With a controller, your blinds can open and close at the times of your choice, creating the perfect atmosphere to start and end your day. What's more, you can use the position control to determine the right position of the curtains and adjust the light level to your liking. You can control them manually with a switch or a button.
Maximum convenience
Today, many of us work from home, but direct sunlight falling on a computer screen can be a nuisance. With the Shelly controller, you can adjust the position of the blinds using a smart home app - no more getting up from your desk and interrupting your work! What's more, this equipment also allows you to adjust the angle of the blinds' slats, so that as much light as you need will come into the interior.
Z-Wave compatibility
This controller is compatible with certified Z-Wave gateways and more than 4,000 other devices, allowing you to easily integrate it into your existing smart home infrastructure. This allows you to remotely control and monitor your devices, giving you full control over the energy used by each one.
Home security
Going on a long vacation and worried that your home is not secured? Enhance its security and integrate the Shelly controller with other devices to create smart scenes. In your absence, the blinds will automatically adjust to certain times and the lights will come on every evening. This will give the impression that someone is home, scaring off potential intruders.
Multiple possibilities
When you create links between the Shelly controller and other Z-Wave devices, they will be able to communicate directly without a gateway. For example, you can link the Wave Shutter to a Z-Wave wind sensor or weather station. This way, when a strong wind is detected, the awnings will close automatically to avoid damage. Note: programming smart schedules and smart scenes will require a gateway.
| Manufacturer | Shelly |
|---|---|
| Model | QubinoWaveShutter |
| Size (H x W x D) | 37 mm x 42 mm x 16 mm ± 0.5 mm |
| Weight | 29 g |
| Mounting | wall console |
| Screw terminals max. torque | 0.4 Nm |
| Cable cross section | 0.5 to 1.5 mm² |
| Cable length without insulation | 5 to 6 m |
| Sheath material | Plastic |
| Color | Black |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% relative humidity |
| Max altitude | 2000 m / 6562 ft |
| Power supply | 110-240 V AC ±10% |
| Power consumption | < 0,3 W |
| Power measurement | Yes |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 10 A per channel |
| Z-Wave frequency bands | 868.4 MHz; 865.2 MHz; 869.0 MHz; 921.4 MHz; 908.4 MHz; 916 MHz; 919.8 MHz; 922.5 MHz; 919.7-921.7-923.7 MHz; 868.1 MHz; 920.9 MHz |
| Z-Wave repeater | Yes |
| Z-Wave range | Up to 40 m (131 ft) indoors (depending on local conditions) |
| Maximum radio frequency power transmitted in frequency bands | < 25 mW |
| Processor | Z-Wave S800 |
| Overcurrent protection | Yes |
| Protection against overheating | Yes |
