Auto Parkošanās Sensoru komplekts, Black | Car Parking Sensor Kit Silver

The innovative parking assist system is based on advanced ultrasonic technology, designed specifically for cars. Its main function is to monitor the space at the rear of the vehicle during the reversing manoeuvre and to give audible warnings if an obstacle is detected.

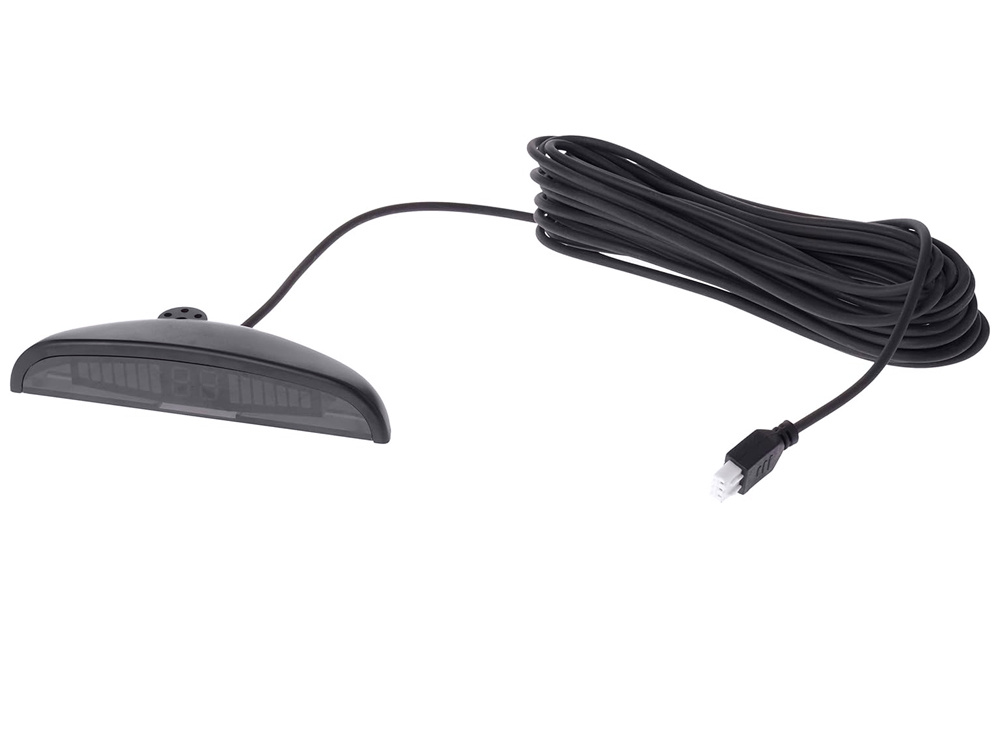

The LED panel presents the driver with obstacle data, including both distance and specific position. The distance information is presented numerically on the display, which covers a range from 0.0 metres to 2.5 metres.

The system automatically activates when reverse gear is engaged at the same time as the reversing lights come on. As the vehicle approaches an obstacle, the driver is immediately informed of its location (whether it is on the right or left side of the vehicle) by means of the colour indicators on the panel. In addition, an audible signal is activated, which is emitted from a piezo transducer, offering four different frequencies depending on the distance.

A special drill is included, which allows perfect holes to be made in the car without fear of damaging the car.

The sensors are configured to accurately detect even small obstacles such as parking posts, city barriers or high kerbs.

MEASUREMENT ZONE:

✅ 1 zone: >250cm

✅ 2 zone: 160-250cm

✅ 3 zone: 100-150cm

✅ 4 zone: 70-90cm

✅ 5 zone: 40-60cm

✅ 6 zone: 0.3-0.0m

TECHNICAL SPECIFICATIONS:

✅ Audible indication of obstacles

✅ Rated voltage: DC 12 V

✅ Operating voltage: DC 10.5 - 16 V

✅ Supply current: 40-300mA

✅ Obstacle detection distance: 0.3 - 2.5 m

✅ Ultrasound frequency: 40 Khz

✅ Device operating temperature: -40°C~+80°C

✅ Operating temperature of display: 0°C to +60°C

✅ Number of sensors: 4pcs

✅ Drill with hole punch for hole drilling

✅ Product is CE certified

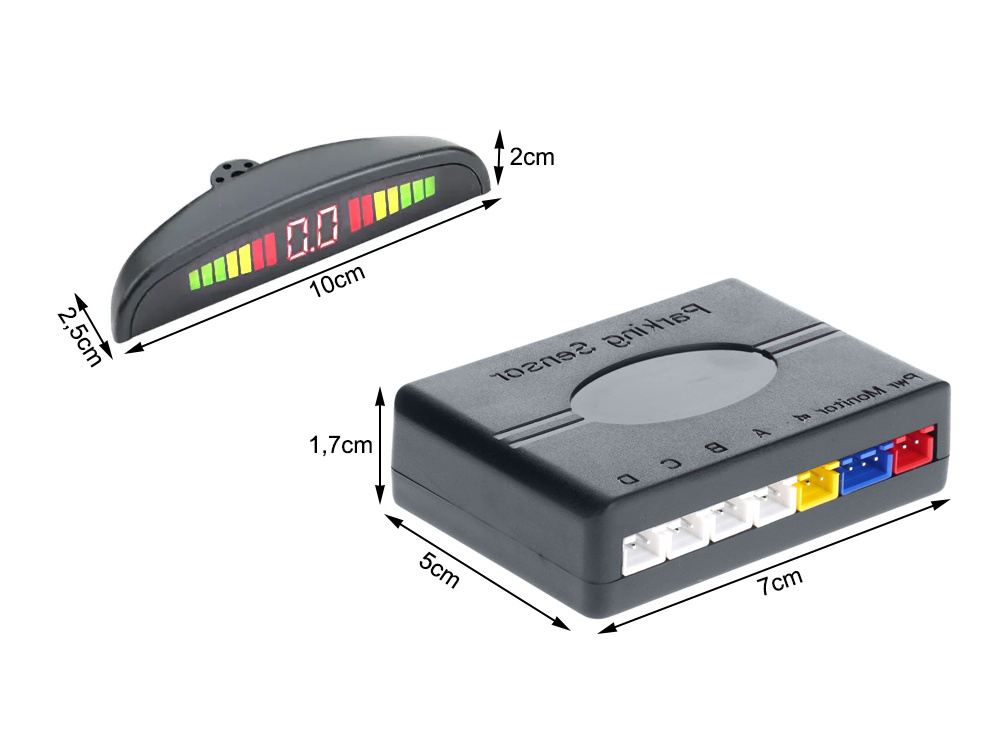

DIMENSIONS:

✅ Display dimensions: 10cm x 2.5cm x 2cm

✅ Dimensions of power supply: 7cm x 5cm x 1.7cm

✅ Sensor cable length: approx. 2.3 m

✅ Length of LED display cable: approx. 4.9cm

✅ Length of power supply cable: approx. 75 cm

SET INCLUDES:

☑️ Factory new parking sensor set

☑️ Sensors 4 pcs

☑️ LED display

☑️ Control unit

☑️ Drill with hole saw

☑️ Power cable

☑️ Self-adhesive elements 2pcs
