Motorised ball valve DN25, 220 V, brass body
Hismart
Price: 51.10 €
| Products ID: | 197459 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000260102 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 02.11.–09.11.
Parcel-machine delivery
Free
Estimated: 04.11.–11.11.
Courier delivery
4.90 €
Estimated: 04.11.–11.11.

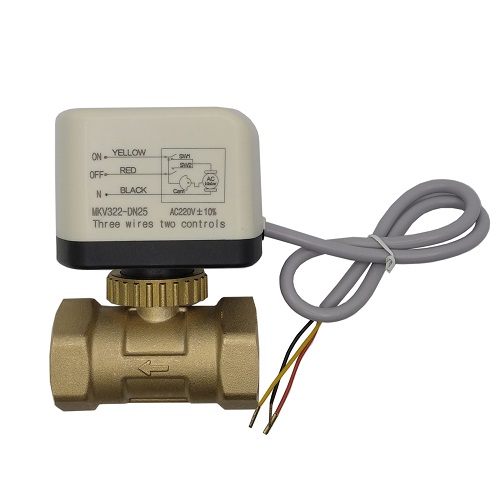

This motorised ball valve switches water flow on and off in heating, ventilation and air conditioning (HVAC) systems. The DN25 version combines a brass valve body with a thermal actuator powered by 220 V AC.
Opening and closing each take up to 15 seconds. The actuator consumes 4 W only during movement; its power is cut off when the valve reaches the fully open or fully closed position.
Suitable media include cold and hot water and water-glycol mixtures. The nominal pressure is 2.5 MPa, and the specified inner diameter is 1 inch.
| Application | Water systems |
|---|---|
| Operating voltage | AC 220 V ± 10%, 50/60 Hz |
| Actuation time | Opening: up to 15 s; closing: up to 15 s |
| Nominal pressure | 2.5 MPa |
| Power consumption | 4 W |
| Connection diameter | DN 25 mm |
| Inner diameter | 1 inch |
| Working media | Cold and hot water, water-glycol mixtures |
| Valve body material | Brass |
| Actuator type | Thermal |
| Energy consumption mode | Consumes power only during opening and closing; power is cut off in the fully open or fully closed position |
| Control | Dual control |
Does the valve consume power while fully open?
No. The actuator's power is cut off when the valve is fully open or fully closed. The specified 4 W consumption applies only during opening and closing.
