4-zone audio amplifier, 8 channels, 400 W, Bluetooth 5.3
Lumi Legend Corporation
| Products ID: | 197425 |
|---|---|
| Manufactured by: | Lumi Legend Corporation |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000330591 |
Delivery options to:
Latvia

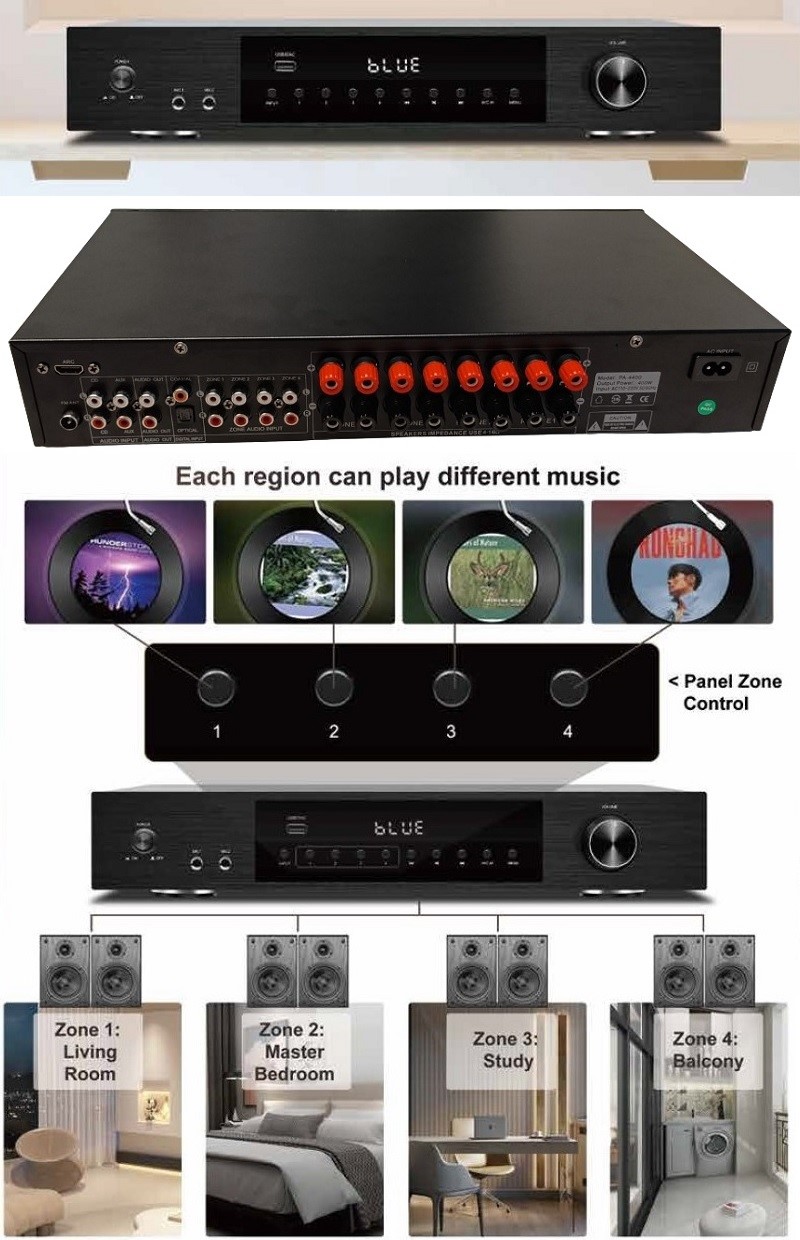

This 8-channel audio amplifier provides separate control of 4 zones in homes, offices or commercial spaces. Rated RMS power is 400 W (8 × 50 W), with dedicated analogue stereo inputs allowing different content to play in each zone.
Audio sources and sound adjustment
All zones support USB, Bluetooth, CD, AUX, optical, coaxial, ARC and FM radio via the antenna input. Built-in DSP adjusts bass, treble and overall volume. Supported speaker impedance is 4–16 ohms.
- USB audio: play APE, FLAC, WMA and MP3 files using the built-in DAC, or use the remote control to record other audio sources onto a USB 2.0 flash drive.
- Karaoke: noise reduction, microphone echo adjustment and microphone priority.
- Microphone connections: two 6.5 mm sockets accept wired microphones or wireless microphone receivers.
- Expansion: an audio output connects additional equipment.
Controls and power

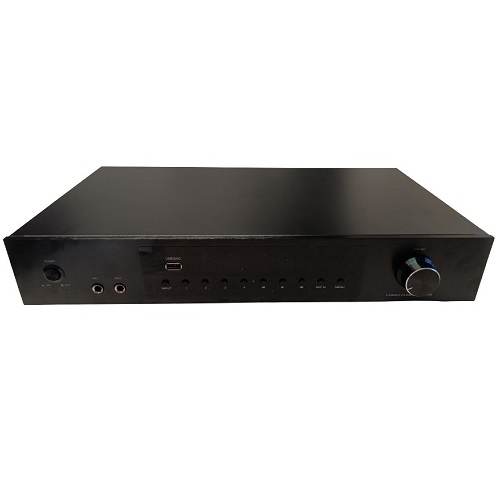

The remote control adjusts volume, selects sources and controls individual zones. The aluminium housing has an LED display, 11 control buttons and a volume knob. The amplifier uses 110–220 V AC, 50/60 Hz power and includes short-circuit and overload protection.
| Input voltage | 110–220 V AC, 50/60 Hz |
|---|---|
| Rated power (RMS) | 400 W (8 × 50 W) |
| Frequency range | 20 Hz – 20 kHz |
| Output impedance | 4–16 ohms |
| Signal-to-noise ratio | > 80 dB |
| Total harmonic distortion (THD) | < 0.1% |
| Bluetooth version | BT 5.3 |
| Number of channels | 8 |
| Number of zones | 4 |
| Recording function | Yes |
| Karaoke function | Yes |
| Supported audio formats | APE / FLAC / WMA / MP3 |
| Housing material | Aluminium |
| Dimensions | 430 × 235 × 70 mm |
| Colour | Black |
| Audio sources available to all zones | USB, Bluetooth, CD (L+R), AUX (L+R), optical, coaxial, ARC, FM radio via antenna input |
| Individual zone inputs | Analogue stereo inputs Zone1 (L+R), Zone2 (L+R), Zone3 (L+R), Zone4 (L+R) |
| Digital signal processing (DSP) | Bass, treble and overall volume adjustment |
| USB player and recording | Built-in DAC; recording from other audio sources onto a USB 2.0 flash drive using the remote control |
| Microphone connections | 2 × 6.5 mm (MIC1, MIC2) for wired microphones or wireless microphone receivers |
| Microphone functions | Noise reduction, echo adjustment, microphone priority |
| Additional audio output | For connecting additional equipment |
| Controls and display | Remote control, LED display, 11 control buttons, volume knob |
| Protection | Short circuit and overload |
Can each zone play different content?
Yes. The dedicated analogue stereo inputs Zone1, Zone2, Zone3 and Zone4 allow a different audio feed for each zone.
Can I connect a wireless microphone?
A wireless microphone receiver can connect to either of the two 6.5 mm sockets, MIC1 and MIC2. These sockets also accept wired microphones.
