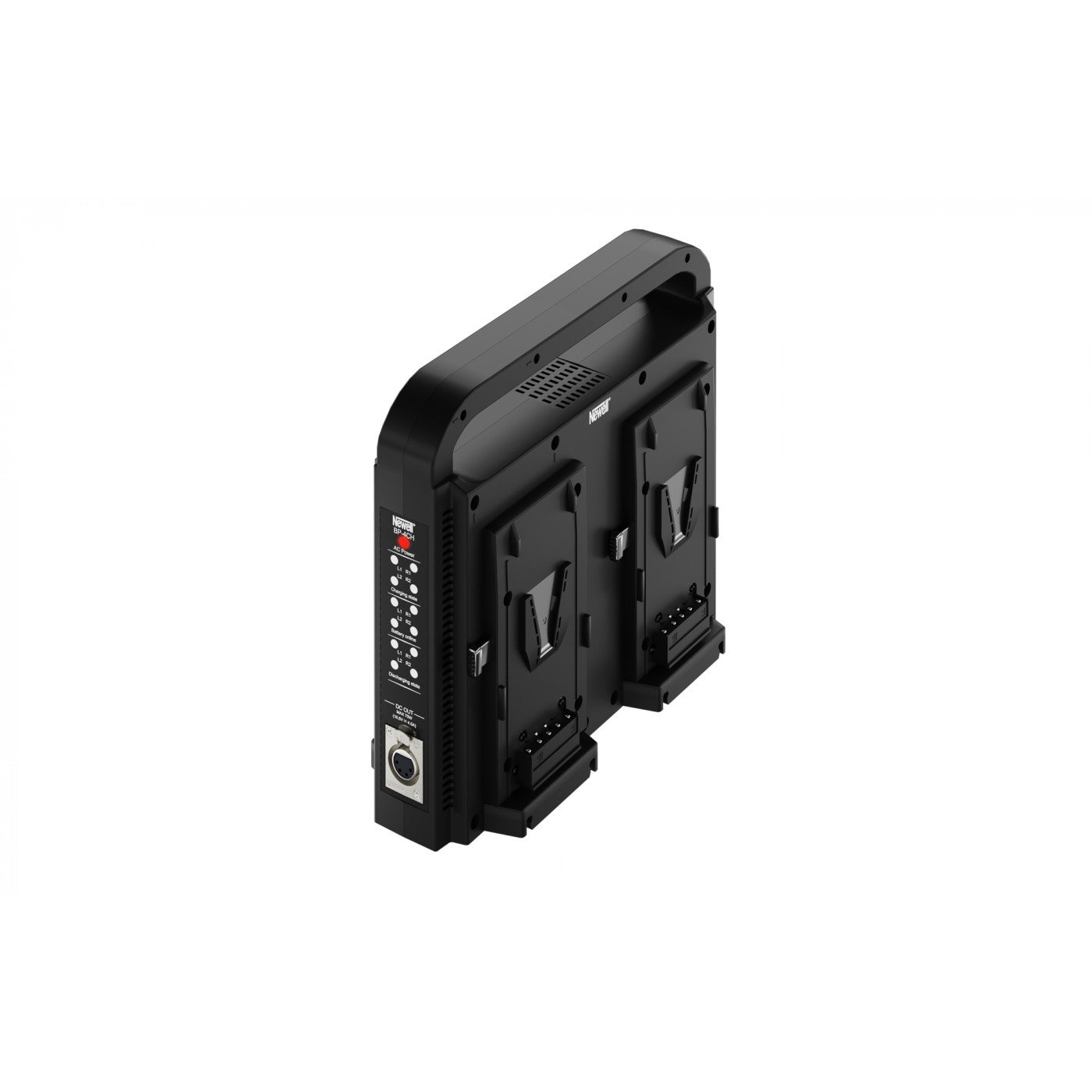

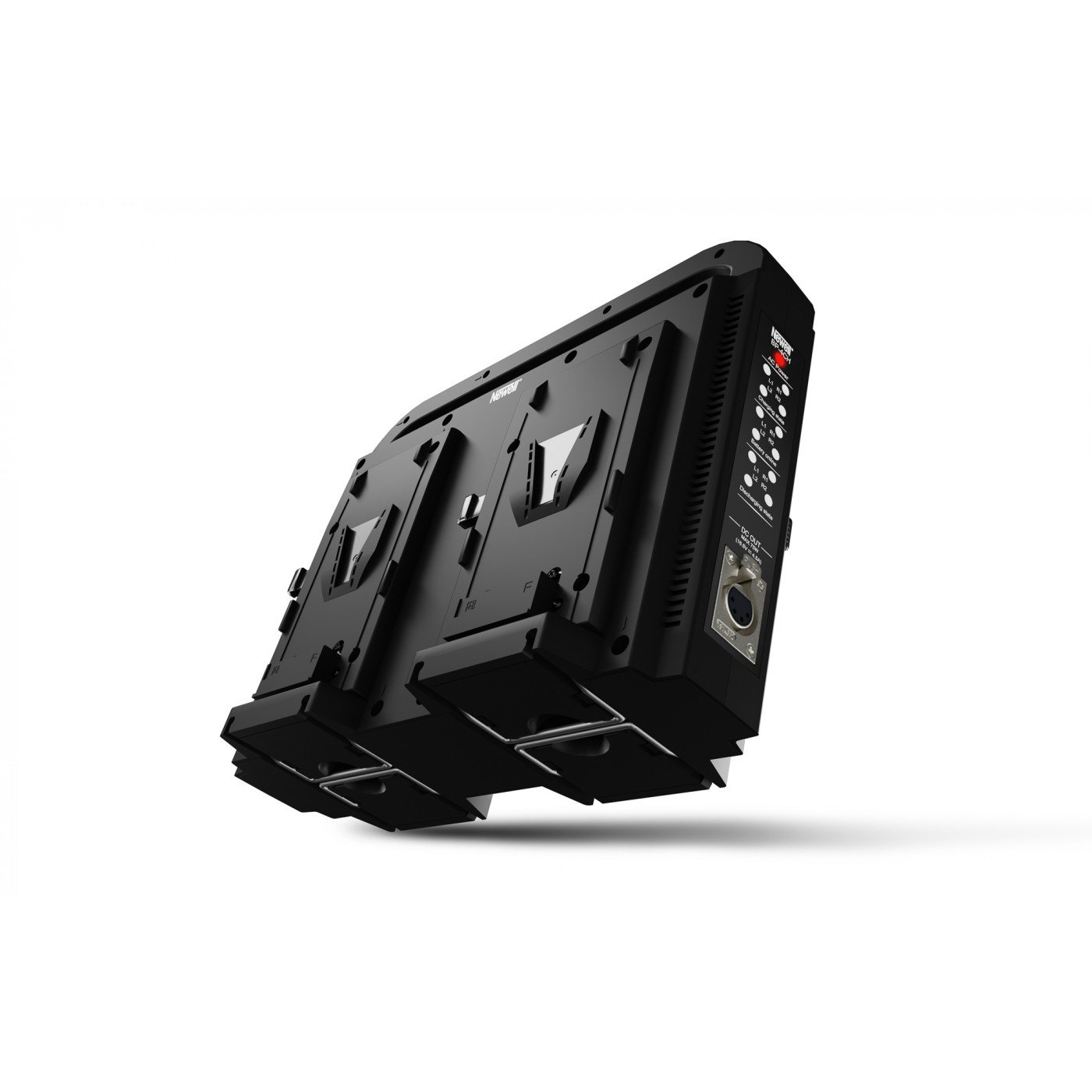

LatviaThe Newell BP-4CH is a 4-channel charger for V-mount, also known as V-Lock, batteries used in film and photography equipment. It can charge up to 4 batteries simultaneously and supply external equipment from installed batteries through its DC output.
Charging and equipment power
When charging 1–2 batteries simultaneously, the charging output is 16.8 V at 3 A per channel; with 3–4 batteries, it is 16.8 V at 2 A per channel. The charger accepts a 100–240 V mains supply. Its DC output provides 16.5 V at 4.5 A, with an included 4-pin XLR cable for connecting equipment with a suitable connection.
Monitoring and handling
- LED indicators: green indicates a fully charged battery, while yellow indicates 85% charge. Indicators are also provided for battery discharge and powering external equipment.
- Protection: systems protect batteries against overcharging and overheating.
- Stable placement: folding feet and rubber pads support positioning.
- Transport: a built-in handle makes the charger easier to carry.
The package includes the charger, a 150 cm power cable and a 300 cm XLR cable.
| Model | Newell BP-4CH for V-mount batteries |
|---|---|
| Input | 100–240 V, 50/60 Hz, max. 3 A |
| DC output | 16.5 V, 4.5 A |
| Charging 1–2 batteries simultaneously | 16.8 V, 3 A × 1–2 |
| Charging 3–4 batteries simultaneously | 16.8 V, 2 A × 3–4 |
| Recommended ambient temperature | 0–40 °C |
| Recommended ambient humidity | 20–90 % RH |
| Power cable length | 150 cm |
| XLR cable length | 300 cm |
| Colour | Black |
| Dimensions | 265 × 103 × 223 mm |
| Weight | 3300 g |
| Compatibility | V-Mount (V-Lock) batteries |
| EAN | 5907489643894 |
|---|
Can it charge 4 batteries at once?
Yes, it has 4 V-mount slots. When charging 3–4 batteries simultaneously, the charging output is 16.8 V at 2 A per channel; for 1–2 batteries, it is 16.8 V at 3 A per channel.
Can it power a camera?
Yes. Installed V-mount batteries can supply compatible equipment through the DC output using the included 4-pin XLR cable. The output is rated at 16.5 V and 4.5 A.
