KNIPEX 97 90 14 Crimping Assortment with PreciStrip16 and Twistor16
| Products ID: | 184406 |
|---|---|
| Manufactured by: | Knipex |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4003773084884 |
Delivery options to:
Latvia

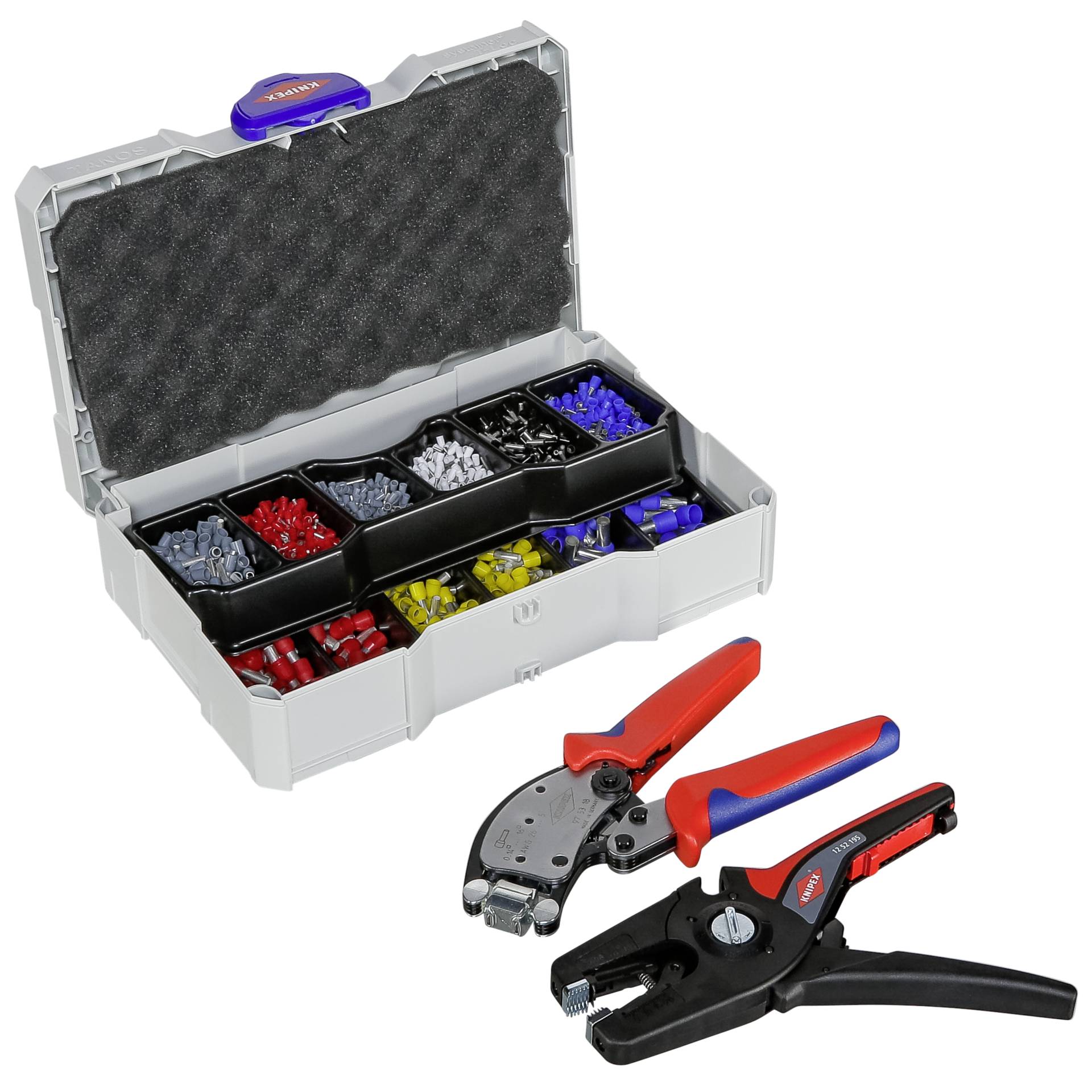

KNIPEX wire end ferrule crimping assortment designed for electrical engineering applications, combining self-adjusting crimping pliers, an automatic wire stripper, and a selection of ferrules in a partitioned plastic box.
Key Features and Inclusions

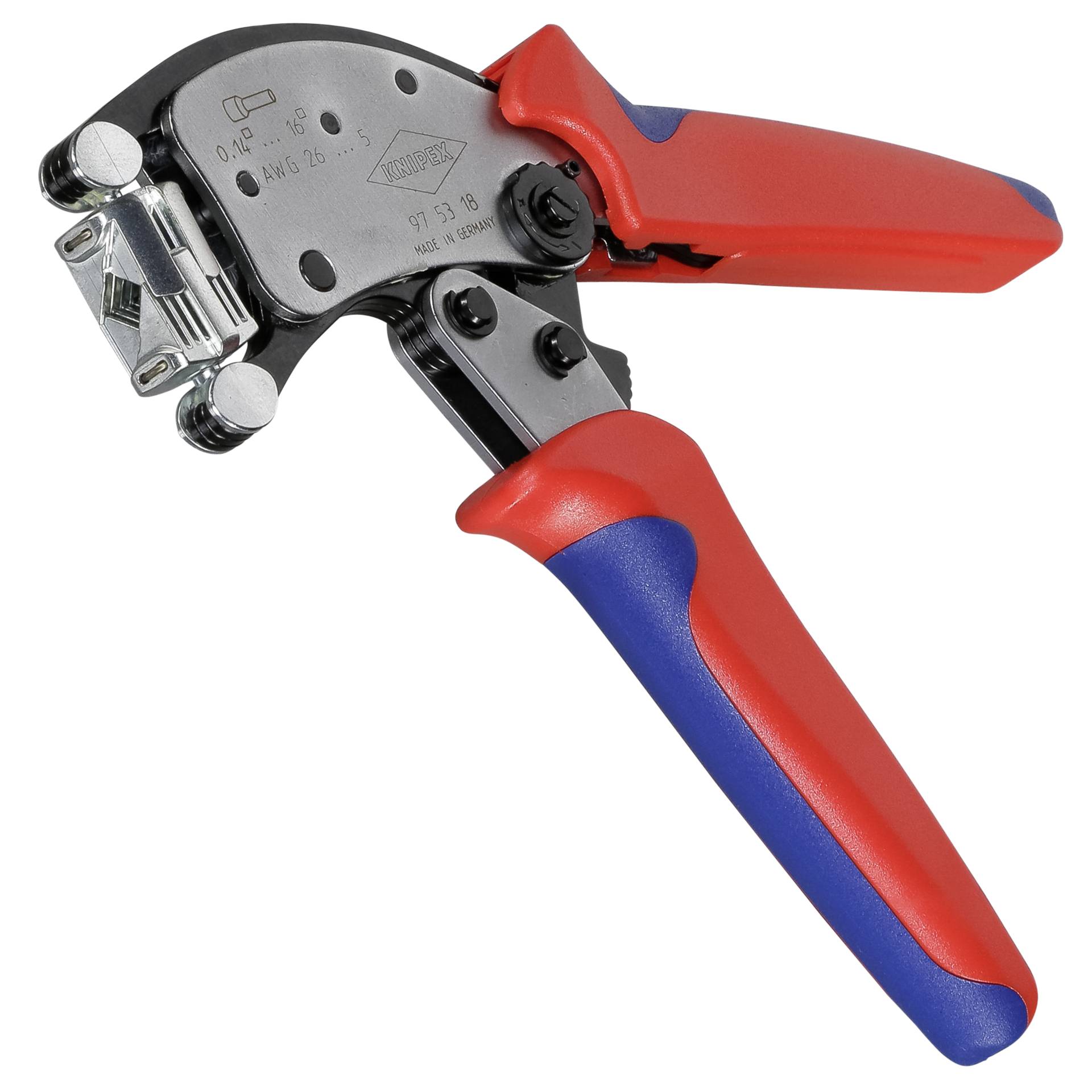

- KNIPEX Twistor16 self-adjusting crimping pliers with 360° rotating head and 8 locking positions
- Twistor16 crimping capacity from 0.14 to 16 mm² and twin ferrules up to 2 x 6 mm²

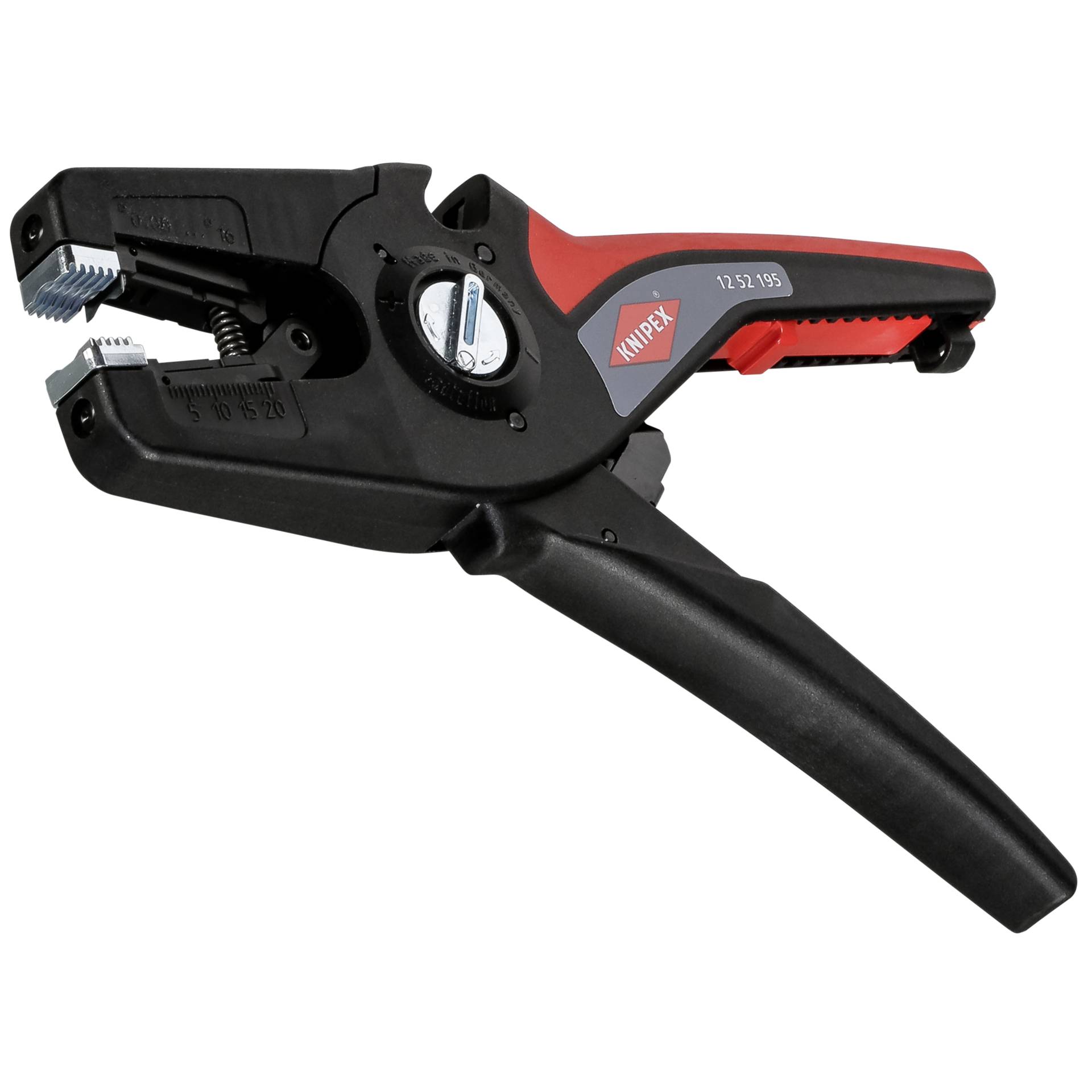

- KNIPEX PreciStrip16 automatic wire stripper covering 0.08 to 16 mm² with fine adjustment and adjustable length stop

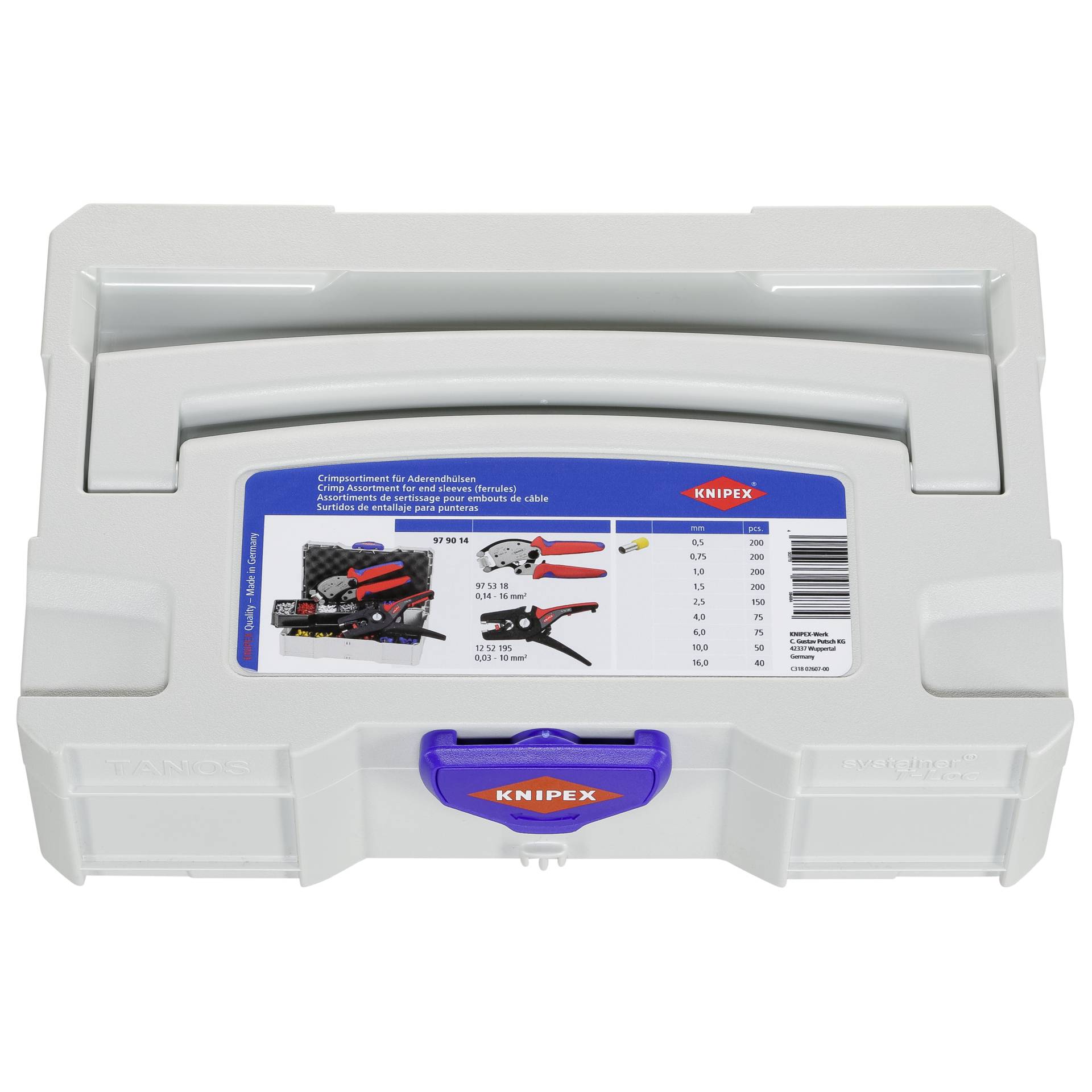

- Partitioned plastic box containing plastic collar wire end ferrules from 0.5 to 16 mm²
| Set Type | Crimping and Wire Stripping Assortment |
|---|---|
| Twistor16 Crimping Capacity | 0.14 - 16 mm² |
| Twistor16 Twin Ferrule Capacity | up to 2 x 6 mm² |
| Twistor16 Head Rotation | 360° (8 locking positions) |
| Twistor16 Dimensions | 240 x 80 x 26 mm |
| Twistor16 Weight | 486 g |
| PreciStrip16 Stripping Capacity | 0.08 - 16 mm² |
| PreciStrip16 Length | 195 mm |
| PreciStrip16 Weight | 200 g |
| Field of Application | Electrical Engineering |
| Colour | Multi-Colour |
What tools are included in this KNIPEX assortment?
The set includes the KNIPEX Twistor16 self-adjusting crimping pliers (975318), the KNIPEX PreciStrip16 automatic wire stripper (1252195), and a partitioned plastic case with wire end ferrules.
Which wire end ferrules are included in the box?
The box contains ferrules with plastic collars in sizes: 0.5 mm (200 pcs), 0.75 mm (200 pcs), 1.0 mm (200 pcs), 1.5 mm (200 pcs), 2.5 mm (150 pcs), 4.0 mm (75 pcs), 6.0 mm (75 pcs), 10.0 mm (50 pcs), and 16.0 mm (40 pcs).
What is the working capacity of the PreciStrip16 stripper?
The PreciStrip16 automatic wire stripper has a capacity range of 0.08 to 16 mm² and includes an adjustable length stop and fine adjustment.
