KNIPEX 97 49 06 Crimping Die for Insulated Terminals and Connectors 0.5 - 6 mm²
Price: 66.90 €
| Products ID: | 182770 |
|---|---|
| Manufactured by: | Knipex |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4003773030836 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 29.09.–09.10.
Parcel-machine delivery
Free
Estimated: 01.10.–13.10.
Courier delivery
4.90 €
Estimated: 01.10.–13.10.

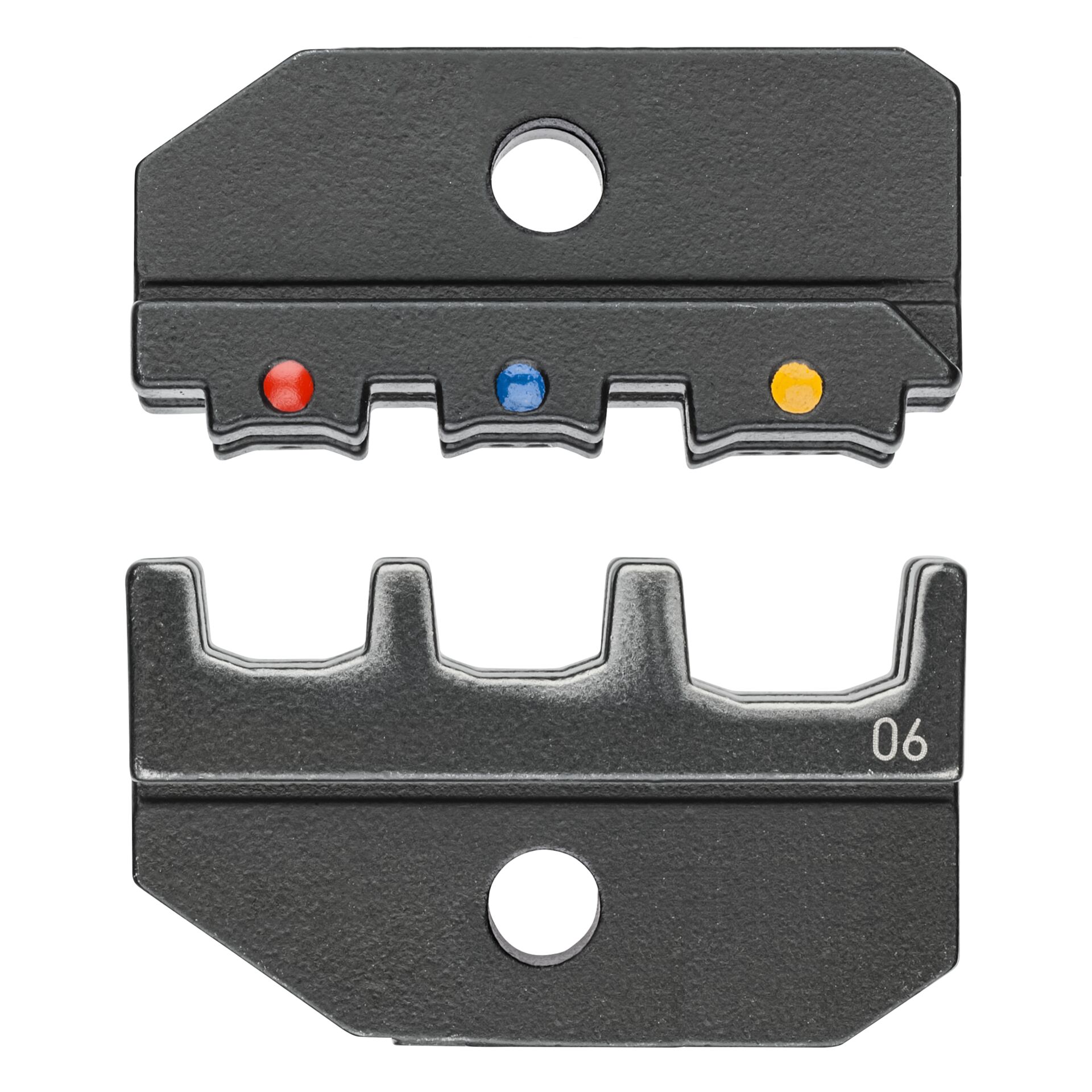

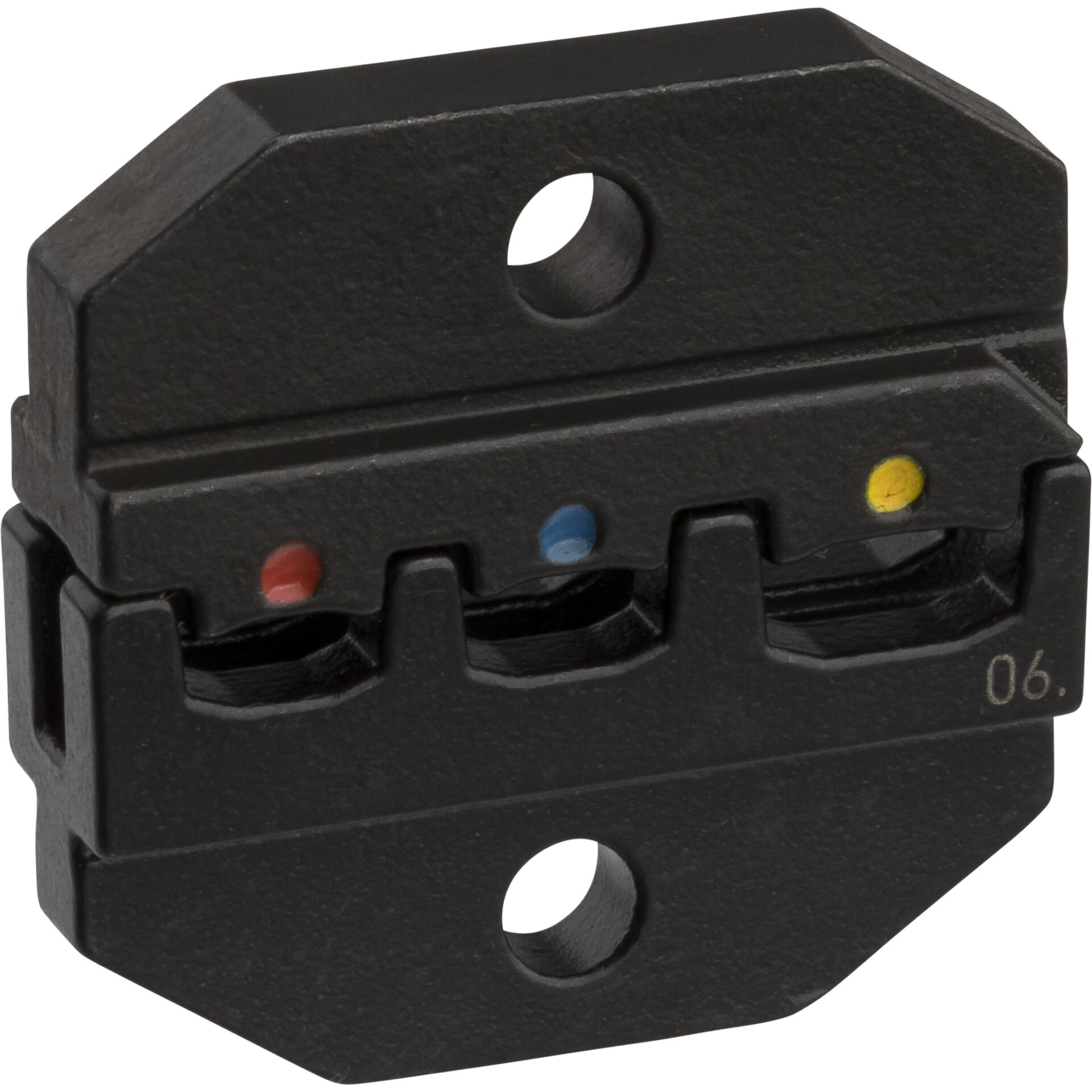

The KNIPEX 97 49 06 crimping die is designed for use with KNIPEX crimping system pliers with exchangeable crimping dies in electrical engineering applications.
Key Features
- Application range: insulated connectors, cable lugs, and butt connectors 0.5 - 6 mm²
- 3 crimping nests
- Compatible with KNIPEX crimping system pliers (pliers not included)
- Dimensions: 50 x 10 mm, weight: 45 g
| Application range | Insulated connectors, cable lugs and butt connectors 0.5 - 6 mm² |
|---|---|
| Number of nests | 3 |
| Dimensions | 50 x 10 mm |
| Weight | 45 g |
| Set | No |
| Colour | Black |
| Field of Application | Electrical Engineering |
What terminals can be used with the KNIPEX 97 49 06 crimping die?
It is designed for insulated connectors, cable lugs, and butt connectors with a cross-section of 0.5 to 6 mm².
Are crimping pliers included with this die?
No, the KNIPEX crimping system pliers are not included.
