Knipex

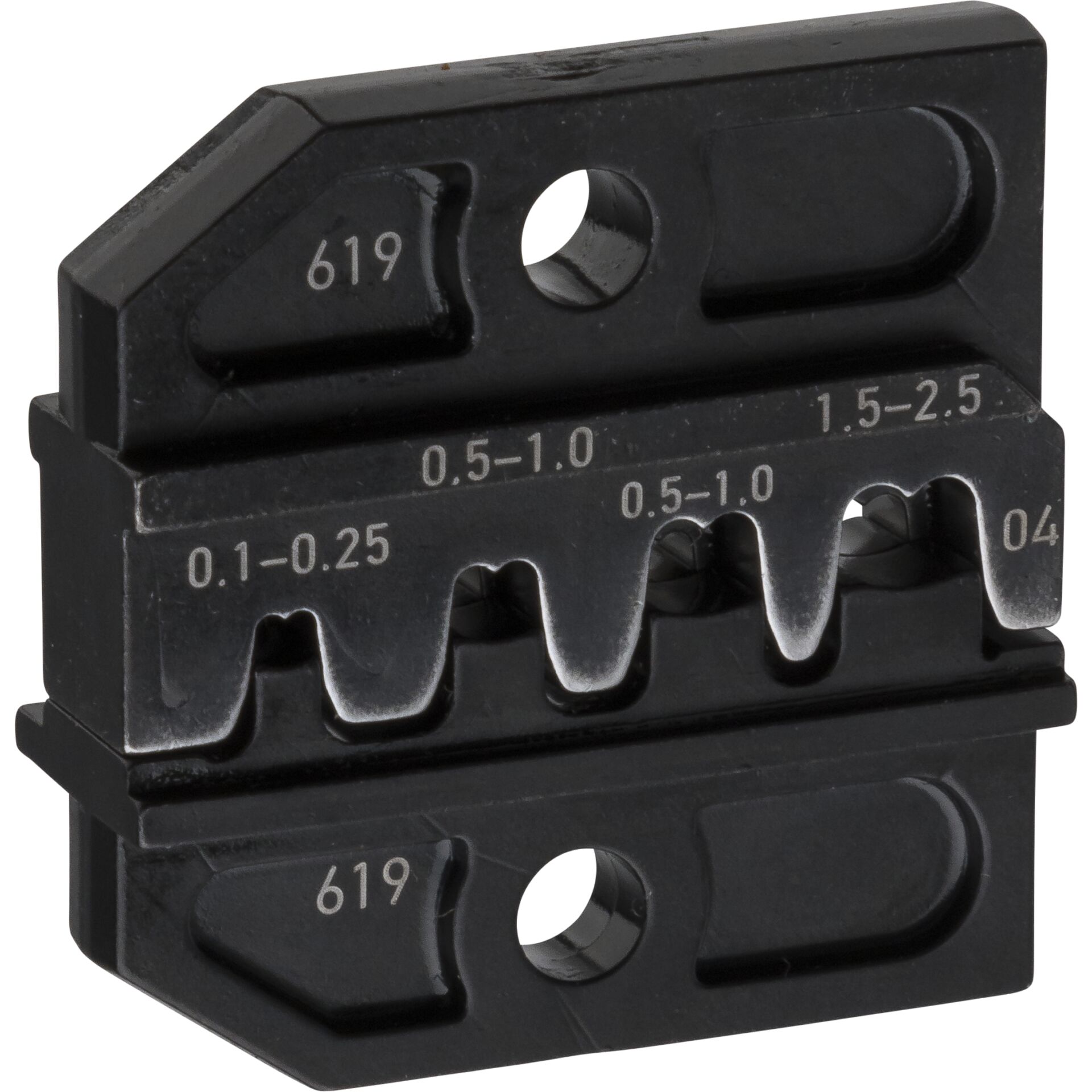

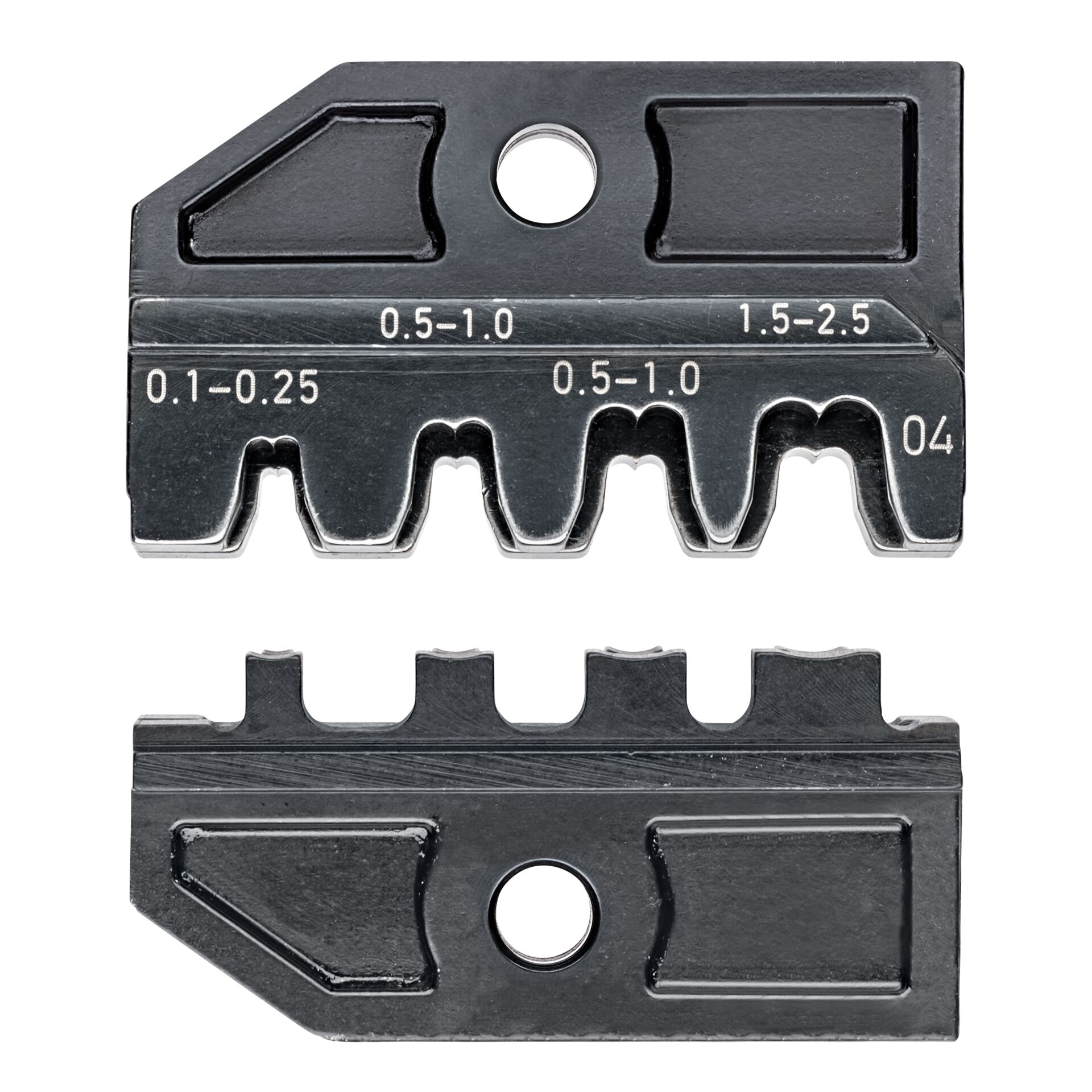

KNIPEX 97 49 04 Crimping Die for Non-Insulated Plug Connectors

81.60 € incl. VAT
In supplier warehouse · 4 pcs. Delivery Time: 6–12 business days

In your cart: 0

Delivery options to:

Latvia
Store pickup Estimated: 30.11.–08.12.
Free
Parcel locker delivery Estimated: 02.12.–10.12.
Free
Courier delivery Estimated: 02.12.–10.12.
from 4.90 €

The KNIPEX 97 49 04 crimping die is an interchangeable insert for KNIPEX crimping system pliers, designed for electrical engineering applications with uninsulated open plug connectors.

Key Features

  • Insert for KNIPEX crimping system pliers with exchangeable dies
  • Capacity for non-insulated open connectors with 2.8 and 4.8 mm width
  • Wire cross-section range of 0.1 - 2.5 mm²
  • Engineered with 4 crimping nests

Field of ApplicationElectrical Engineering
Application rangeUninsulated open connectors (2.8 + 4.8 mm connector width) 0.1 - 2.5 mm²
Number of nests4
Dimensions50 x 10 mm
ColourBlack
SetNo
Weight42 g
EAN4003773030850
Which connectors is the KNIPEX 97 49 04 crimping die designed for?

It is designed for uninsulated open plug connectors with a width of 2.8 mm and 4.8 mm and wire cross-sections from 0.1 to 2.5 mm².

Are the crimping system pliers included?

No, the pliers are not included; this product is an interchangeable crimping die insert.
