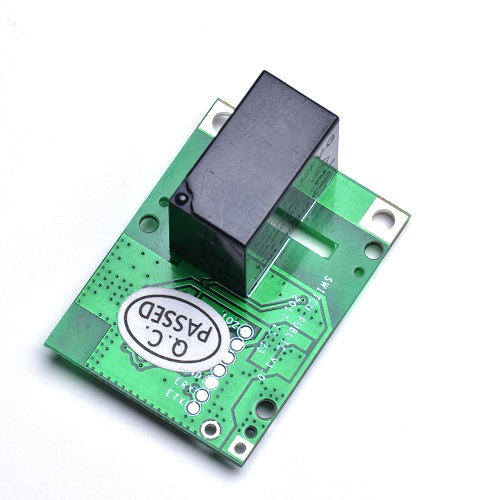

Smart Relay Module SONOFF RE5V1C, 5V DC, Wi-Fi

Smart Relay Module SONOFF RE5V1C, 5V DC, Wi-Fi — image 3

Price: 10.10 €

Products ID:	187170
Manufactured by:	Sonoff
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6920075775839

Delivery options to:

Latvia

Office pickup

Free

Estimated: 16.10.–23.10.

Parcel-machine delivery

from 1.90 €

Estimated: 20.10.–27.10.

Courier delivery

4.90 €

Estimated: 20.10.–27.10.

Smart Relay Module SONOFF RE5V1C, 5V DC, Wi-Fi

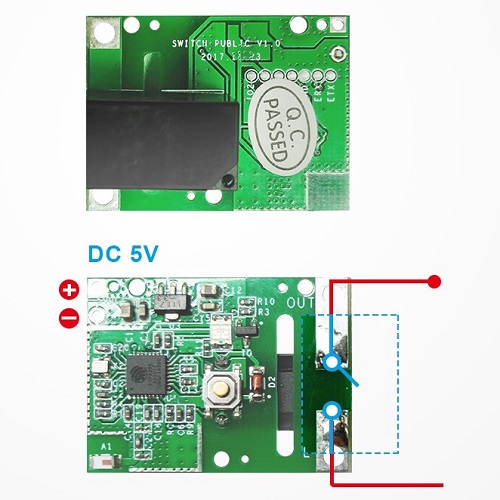

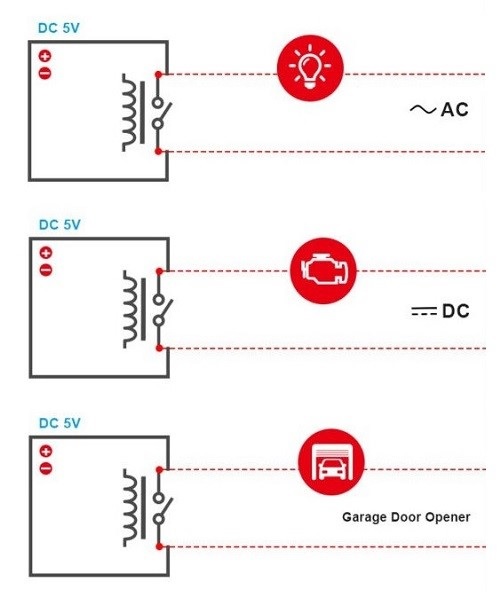

The SONOFF RE5V1C is a nano-sized low-voltage 5V DC smart relay module featuring dry contact output, designed for wireless control of electrical appliances via Wi-Fi.

Key Features and Operating Modes

Operating Modes: Supports self-lock mode for instant on/off switching and inching mode with a configurable duration of 1 to 16 seconds.
Connectivity: Connects over 2.4 GHz Wi-Fi networks (5G is not supported) with local LAN mode support for server-independent operation.
Smart Home Ecosystem: Fully managed via the eWeLink app (Android and iOS), compatible with Amazon Alexa, Google Assistant, and IFTTT.
Automation: Supports timers, schedules, smart scenes, device grouping, sunrise/sunset routines, and control sharing.

Voltage	5V DC
Current	max. 10A
Wi-Fi frequency	2.4 GHz
Number of channels	1
Voice assistant compatibility	Amazon Alexa & Google Assistant
App	eWeLink (Android, iOS)
Dimensions	34.5 x 25 x 19 mm
Operating temperature	0°C~+40°C
Operating humidity	5%-90% (non-condensing)
Weight	15g

What operating modes does the SONOFF RE5V1C relay support?

It supports self-locking mode for standard on/off switching and inching mode, which allows turning devices on or off for a set period between 1 and 16 seconds.

What power supply is required for this module?

The module requires a 5V DC power supply.

What is the warranty period?

This product comes with a 24-month warranty.
