Shelly

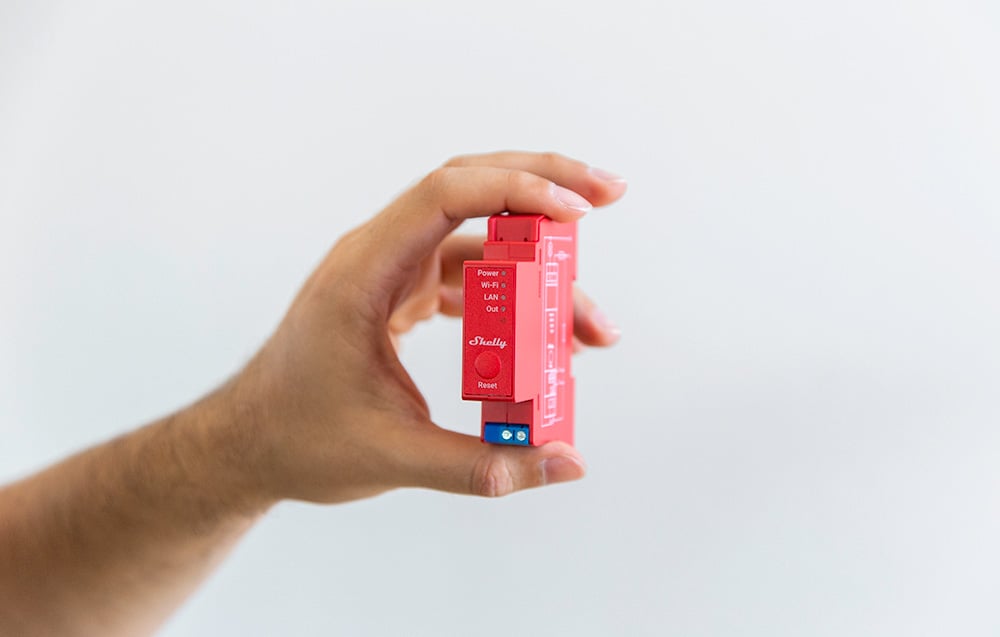

Shelly Pro 1PM DIN Rail Smart Switch with Power Measurement, 1 Channel, Wi-Fi/LAN, 16 A

77.00 € 98.70 € You save 21.70 € incl. VAT
In supplier warehouse · 695 pcs. Delivery Time: 4–10 business days

In your cart: 0

Delivery options to:

Latvia
Store pickup Estimated: 26.11.–04.12.
Free
Parcel locker delivery Estimated: 30.11.–08.12.
Free
Courier delivery Estimated: 30.11.–08.12.
from 4.90 €

Shelly Pro 1PM is a 1-channel DIN rail smart relay designed to control electrical circuits with loads up to 16 A, equipped with integrated power monitoring for precise energy tracking.

Key Features

  • Multiple Connectivity Modes: Supports Wi-Fi, wired LAN, and Bluetooth for reliable home and building automation.
  • Energy Monitoring: Built-in AC voltmeter and ammeter enable real-time power consumption tracking.

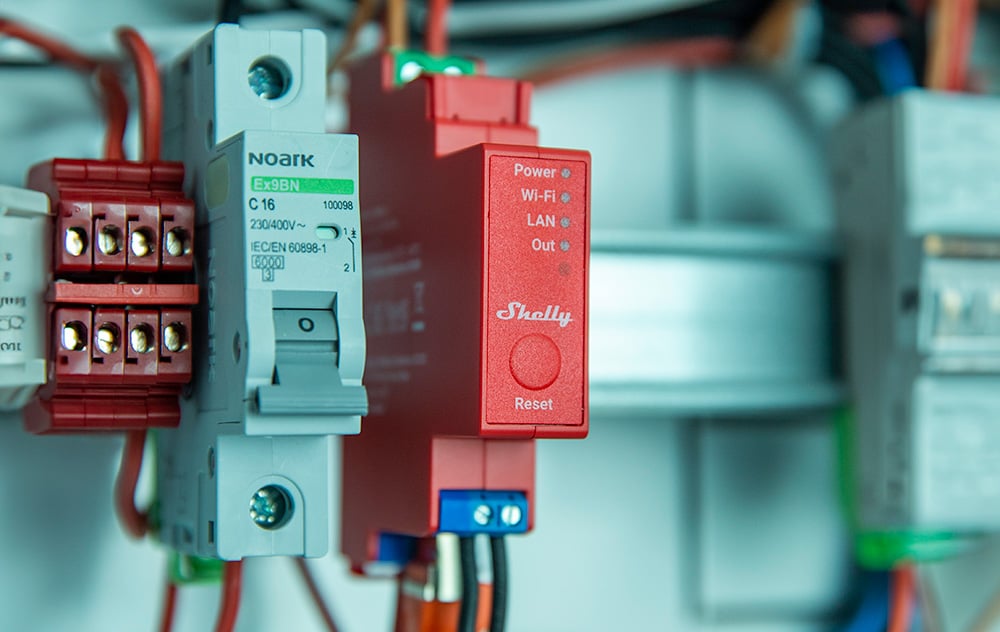

  • DIN Rail Mounted: Compact modular design built for installation directly in distribution boxes.
  • Smart Integrations: Compatible with Google Assistant, Samsung SmartThings, Amazon Alexa, and custom script automations.

ManufacturerShelly
ModelSPSW-201PE16EU
AC Power Supply Voltage110 - 240 V
Power Consumption< 3 W
Max AC Switching Voltage240 V
Max AC Switching Current16 A
AC VoltmeterYes
AC AmmeterYes
Internal Temperature SensorYes
Wi-Fi Protocol802.11 b/g/n
Wi-Fi RangeUp to 30 m indoors and up to 50 m outdoors
Bluetooth Protocol4.2
Bluetooth RangeUp to 10 m indoors and up to 30 m outdoors
CPUESP32-D0WDQ6
Flash Memory8 MB
Dimensions94 x 19 x 69 mm ±0.5 mm
MountingDIN Rail
Housing MaterialPlastic
Ambient Operating TemperatureFrom -20°C to 40°C
HumidityFrom 30% to 70% RH
Maximum Altitude2000 m
EAN3800235268018
What is the maximum switching capacity of the Shelly Pro 1PM?

The switch supports a maximum AC switching current of 16 A at up to 240 V.

Which communication interfaces does the Shelly Pro 1PM offer?

It features Wi-Fi (802.11 b/g/n), an RJ45 LAN port for wired networking, and Bluetooth 4.2.
