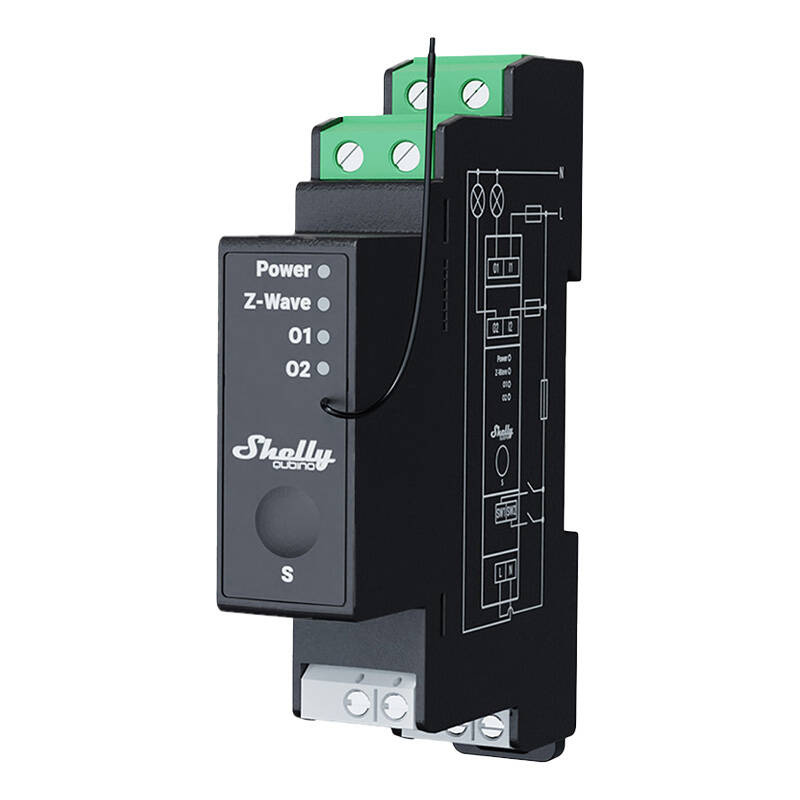

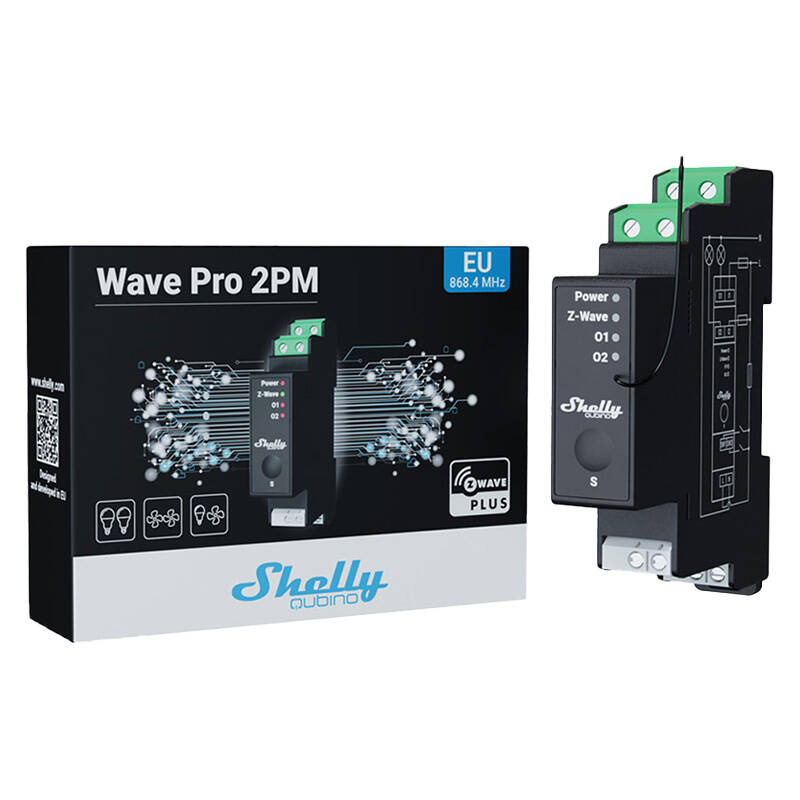

Shelly Wave Pro 2PM 2-Channel DIN Rail Relay with Z-Wave
-27%
SOLDOUT!
Price: 114.80 €83.50 €
| Products ID: | 106334 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | SOLDOUT! |
| EAN: | 3800235269121 |
The Shelly Wave Pro 2PM is a professional-grade two-channel smart relay designed for DIN rail mounting. Utilizing Z-Wave technology, it provides precise control over lighting and electrical appliances within your smart home ecosystem.
Advanced Home Automation
This relay is perfect for automating lighting, heating, ventilation, and other electrical systems. With its integrated power measurement functionality, you can track the energy consumption of each connected device, helping you manage energy use and reduce costs.
Key Features
- Two-Channel Control: Independently manage two separate electrical circuits with one device.
- Energy Monitoring: Accurate real-time power measurement for each channel.
- Z-Wave Technology: Ensures a stable, secure, and long-range wireless connection to your smart home hub.
- High Capacity: Supports loads up to 16 A per channel (25 A total).
- DIN Rail Mountable: Standard form factor for easy installation in electrical distribution boxes.
- Built-in Protection: Features overheating, overload, and overvoltage protection for maximum safety.
Technical Specifications
| Brand | Shelly |
|---|---|
| Model | Wave Pro 2PM |
| Power Supply | 110 - 240 V AC, 50/60 Hz |
| Max Current | 16 A per channel (25 A total) |
| CPU | Z-Wave S800 |
| Range | Up to 40 m indoors |
| Dimensions | 94 x 19 x 69 mm |
Frequently Asked Questions
Does this relay require a Z-Wave hub?
Yes, the Shelly Wave Pro 2PM uses the Z-Wave protocol and requires a compatible Z-Wave gateway or controller to function.What is the maximum load capacity?
The device supports up to 16 A on a single channel, but the combined load of both channels must not exceed 25 A.Can I monitor electricity consumption?
Yes, this model includes Power Measurement (PM) features, allowing you to track energy usage via your smart home interface.Where should this device be installed?
It is designed for professional installation on a standard DIN rail, typically found inside electrical panels.Frequently bought together
