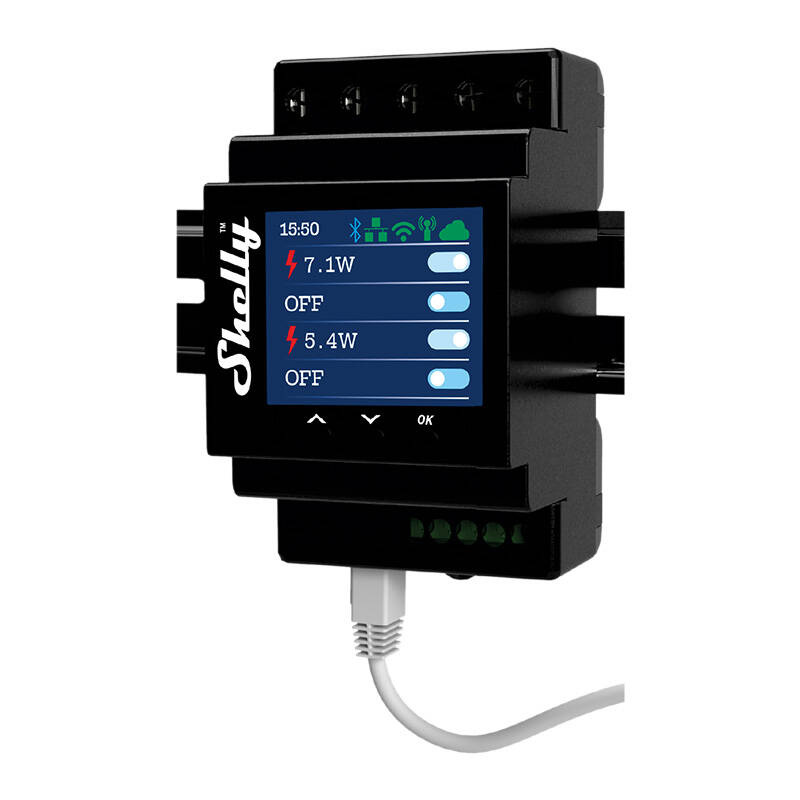

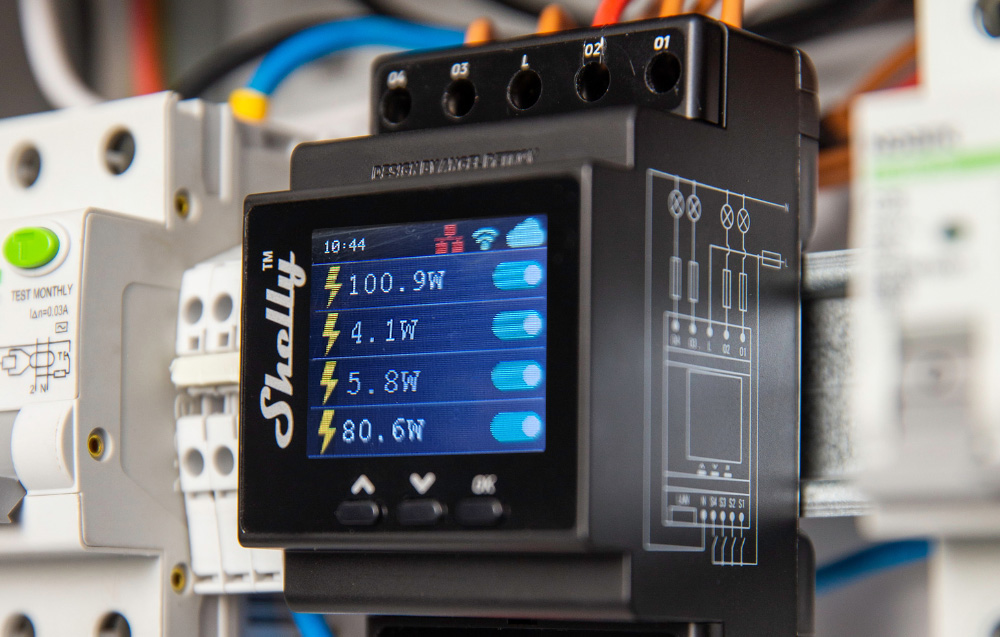

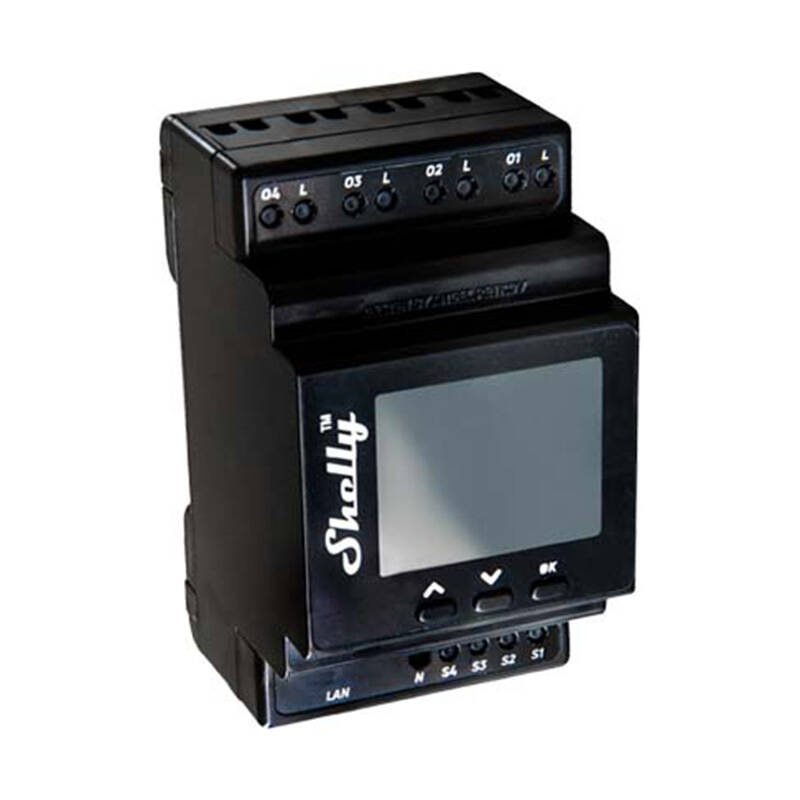

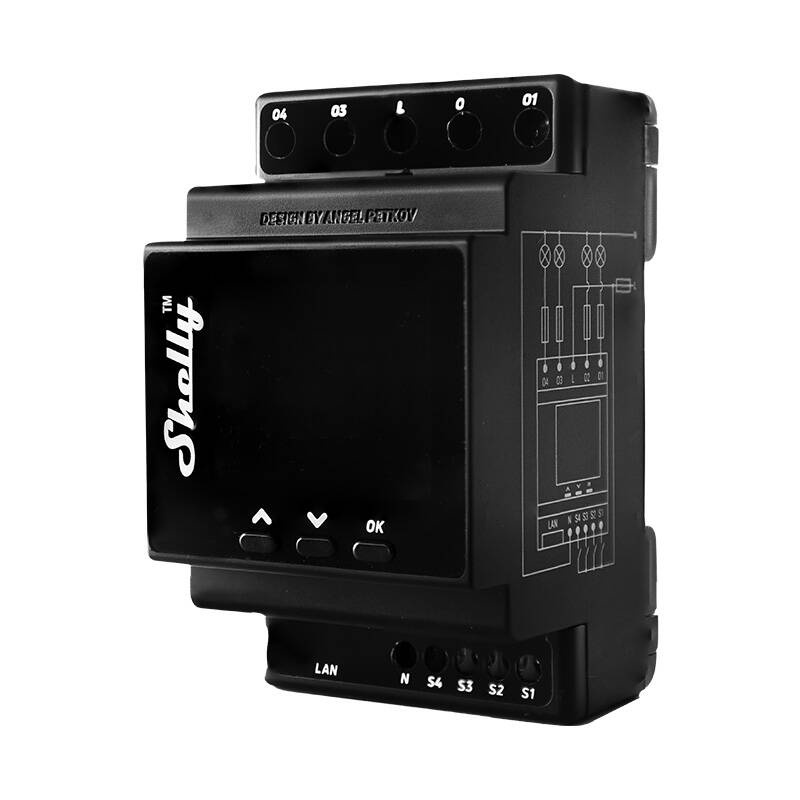

Shelly Pro 4PM 4-channel DIN Rail Relay with Power Measurement
-37%
| Products ID: | 101663 |
|---|---|
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 3800235268049 |
The Shelly Pro 4PM is a professional 4-channel relay designed for mounting on a standard DIN rail in a switchboard, providing advanced automation and energy monitoring for any building.
Practical Automation with Shelly Pro 4PM
This relay is ideal for controlling four independent 230V circuits. With built-in power meters, you can monitor the energy consumption of each connected device in real-time, helping you identify energy-hungry appliances and optimize your utility costs.
Key Features
- 4-Channel Control: Manage up to four separate electrical circuits or appliances with a single device.
- Power Measurement: Integrated voltmeter and ammeter for each channel to track energy usage accurately.
- High Load Capacity: Supports up to 16 A per channel with a total device capacity of 40 A.
- Connectivity Options: Features WiFi, Bluetooth, and LAN support for reliable remote access and integration.
- Enhanced Safety: Includes an internal temperature sensor to prevent overheating during operation.
- Professional Design: Specifically built for DIN rail mounting in electrical cabinets.
Technical Specifications
| Manufacturer | Shelly |
|---|---|
| Model | Pro 4PM (SPSW-004PE16EU) |
| Supply Voltage | 110 - 240 V AC |
| Max Current | 16 A per channel, 40 A total |
| Processor | ESP32-D0WDQ6 |
| Dimensions | 96 x 53 x 59 mm |
| Mounting | DIN rail |
Frequently Asked Questions
Can I monitor the power consumption of each channel separately?
Yes, the Shelly Pro 4PM features individual power measurement for each of its four channels.What is the maximum total load for the device?
