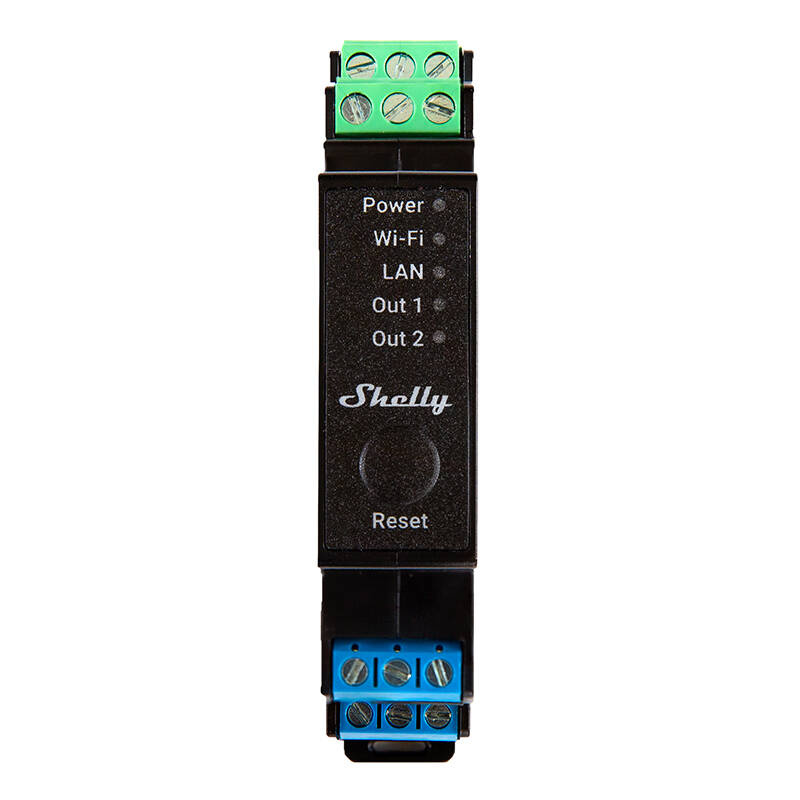

Shelly Pro 2PM 2-Channel DIN Rail Relay with Power Measurement

Name: Shelly Pro 2PM Smart Relay with WiFi/LAN and Power Monitoring
Brand: Shelly
SKU: Pro2PM
Price: 84.90 EUR
Availability: BackOrder

-38%

Shelly Pro 2PM 2-Channel DIN Rail Relay with Power Measurement — primary image

Shelly Pro 2PM 2-Channel DIN Rail Relay with Power Measurement — image 2

Price: 136.40 €84.90 €

Products ID:	101660
Manufactured by:	Shelly
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	3800235268032

Delivery options to:

Latvia

Office pickup

Free

Estimated: 31.08.–07.09.

Parcel-machine delivery

Free

Estimated: 02.09.–09.09.

Courier delivery

4.90 €

Estimated: 02.09.–09.09.

Shelly Pro 2PM 2-Channel DIN Rail Relay with Power Measurement

Description
Ask Us

Shelly Pro 2PM is a professional-grade 2-channel smart relay designed for DIN rail mounting, offering precise power monitoring and control for loads up to 16 A per channel.

Advanced Automation Capabilities

This relay is perfectly suited for both home and commercial building automation. With WiFi, LAN, and Bluetooth connectivity, it provides stable remote control for lighting, underfloor heating, or other appliances while helping to optimize energy usage.

Key Features

Two Channels: Independent control of two separate electrical circuits.
Power Measurement: Built-in voltmeter and ammeter for precise energy consumption tracking.
Triple Connectivity: Supports WiFi, LAN, and Bluetooth for flexible and reliable networking.
Smart Integration: Works with Google Assistant, Samsung SmartThings, and Amazon Alexa.
Scripting Support: Enable custom automation scenes based on weather forecasts or other events.

Technical Specifications

Manufacturer	Shelly
Model	Pro 2PM / SPSW-202PE16EU
Max Current	16 A per channel, 25 A total
Mounting	DIN Rail
Connectivity	Wi-Fi, LAN, Bluetooth 4.2
Operating Temp	-20°C to 40°C

Frequently Asked Questions

What is the maximum load for this relay?

Shelly Pro 2PM supports up to 16 A per individual channel, with a total combined limit of 25 A for the entire device.

Does this device track energy consumption?

Yes, it features integrated power metering, allowing you to monitor the real-time energy usage of each connected channel.

Why is the LAN connection useful?

The LAN (Ethernet) port provides a more stable and secure wired connection, which is ideal for professional installations where wireless interference might occur.

Is it compatible with voice assistants?

Yes, it integrates seamlessly with Google Assistant, Amazon Alexa, and Samsung SmartThings for convenient voice control.
