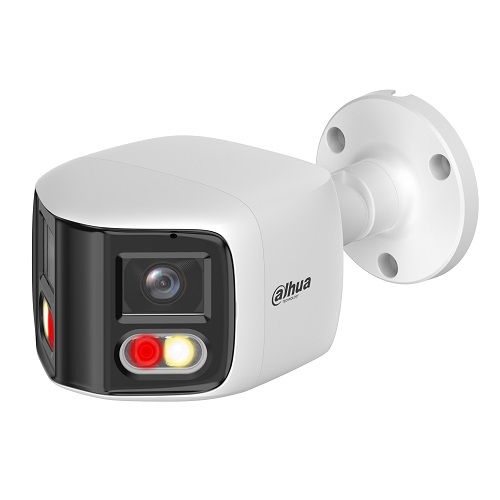

IP Network Camera 8MP PFW2849S-A180-S-PV, 180° Panoramic 2.8 mm, PoE, IP67

Price: 183.80 €

Products ID:	178217
Manufactured by:	Dahua Technology Co., Ltd
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6937552431843

Delivery options to:

Latvia

Office pickup

Free

Estimated: 25.09.–02.10.

Parcel-machine delivery

Free

Estimated: 29.09.–06.10.

Courier delivery

4.90 €

Estimated: 29.09.–06.10.

The PFW2849S-A180-S-PV is an 8 MP panoramic network IP camera equipped with dual 1/2.7-inch CMOS sensors delivering a seamless 180-degree horizontal field of view.

Key Features

High 8 MP resolution (4096 x 1860) with fixed 2.8 mm focal length
Smart Dual Light technology with IR up to 25 m and warm light up to 20 m
Built-in dual microphone and speaker for active deterrence and audio alarms
Perimeter protection (IVS) and vehicle/human detection (SMD 3.0)
Micro SD card storage support up to 512 GB
Rugged metal housing rated IP67 for weather resistance

Image Sensor	1/2.7" CMOS (x2)
Max. Resolution	4096 (H) x 1860 (V)
ROM	128 MB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100 000 s
Min. Illumination	0.005 lux@F1.4 (Color, 30 IRE); 0.0005 lux@F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	2.8 mm: Up to 25 m (IR); Up to 20 m (Warm light)
Illuminator On/Off Control	Auto; Manual
Illuminator Number	2 (IR LED); 2 (Warm light)
Angle Adjustment	Pan: 0° to 360°; Tilt: –20° to 90°; Rotation: 0° to 360°
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm
Max. Aperture	F1.4
Field of View	2.8 mm: H: 180°; V: 86°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 0.8 m
DORI Distance	Detect: 50.6 m; Observe: 20.2 m; Recognize: 10.1 m; Identify: 5.1 m
EPTZ	Enlarge and track the targets of intelligent alarms
IVS (Perimeter Protection)	Intrusion, tripwire (supports classification of vehicle and human)
SMD	SMD 3.0
Smart Search	Works with Smart NVR for intelligent search and event extraction
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec	Smart H.265+; Smart H.264+
Video Frame Rate	Main stream: 4096 x 1860@(1–20 fps); Sub stream: 1200 x 536@(1–20 fps); Third stream: 1920 x 860@(1–20 fps)
Streaming Capability	3 streams
Resolution	8M (4096 x 1860); 6M (3632 x 1632); 4M (3040 x 1368); 1200 x 536; 1920 x 860; 960 x 432; D1 (704 x 576/704 x 480)
Bit Rate Control	VBR; CBR
Video Bit Rate	H.264: 6 kbps–16384 kbps; H.265: 6 kbps–16384 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC / HLC	Yes / Yes
WDR	120 dB
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Built-in MIC	Yes, built-in dual Mic
Built-in Speaker	Yes, max power 2 W; max sound level at 10 cm: 110 dB
Audio Compression	G.711a; G.711Mu; G.726; PCM
Network Port	RJ-45 (10/100 Base-T)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
Storage	FTP; SFTP; Micro SD card (max. 512 GB); NAS
Mobile Client	iOS; Android
Light Warning	Warm light warning (flash/solid 5 s–30 s)
Sound Warning	11 sound alarms and supports importing 10 custom sound alarms
Power Supply	12 VDC (±30%); PoE (802.3af)
Power Consumption	Basic: 4.7 W (12 VDC); 6.2 W (PoE); Max.: 9.8 W (12 VDC); 11.9 W (PoE)
Operating Temperature	–40 °C to +60 °C
Protection Rating	IP67
Casing Material	Metal
