Holzmann TKS500S Construction and Table Saw 400V

Holzmann TKS500S Construction and Table Saw 400V — image 3

Holzmann TKS500S Construction and Table Saw 400V — image 4

Price: 1440.70 €

Products ID:	185104
Manufactured by:	Holzmann Maschinen
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	9120058378188

Delivery options to:

Latvia

Office pickup

Free

Estimated: 29.09.–09.10.

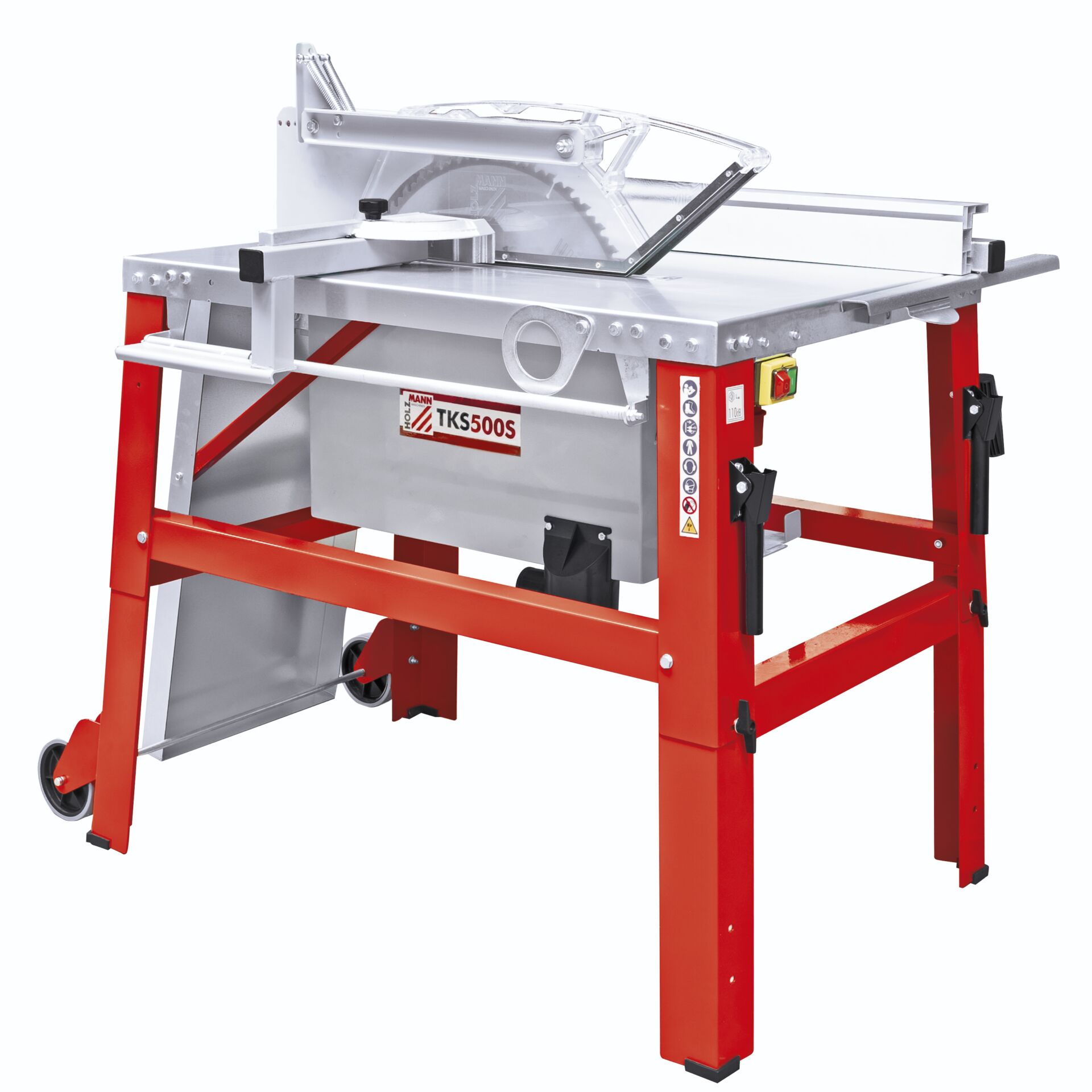

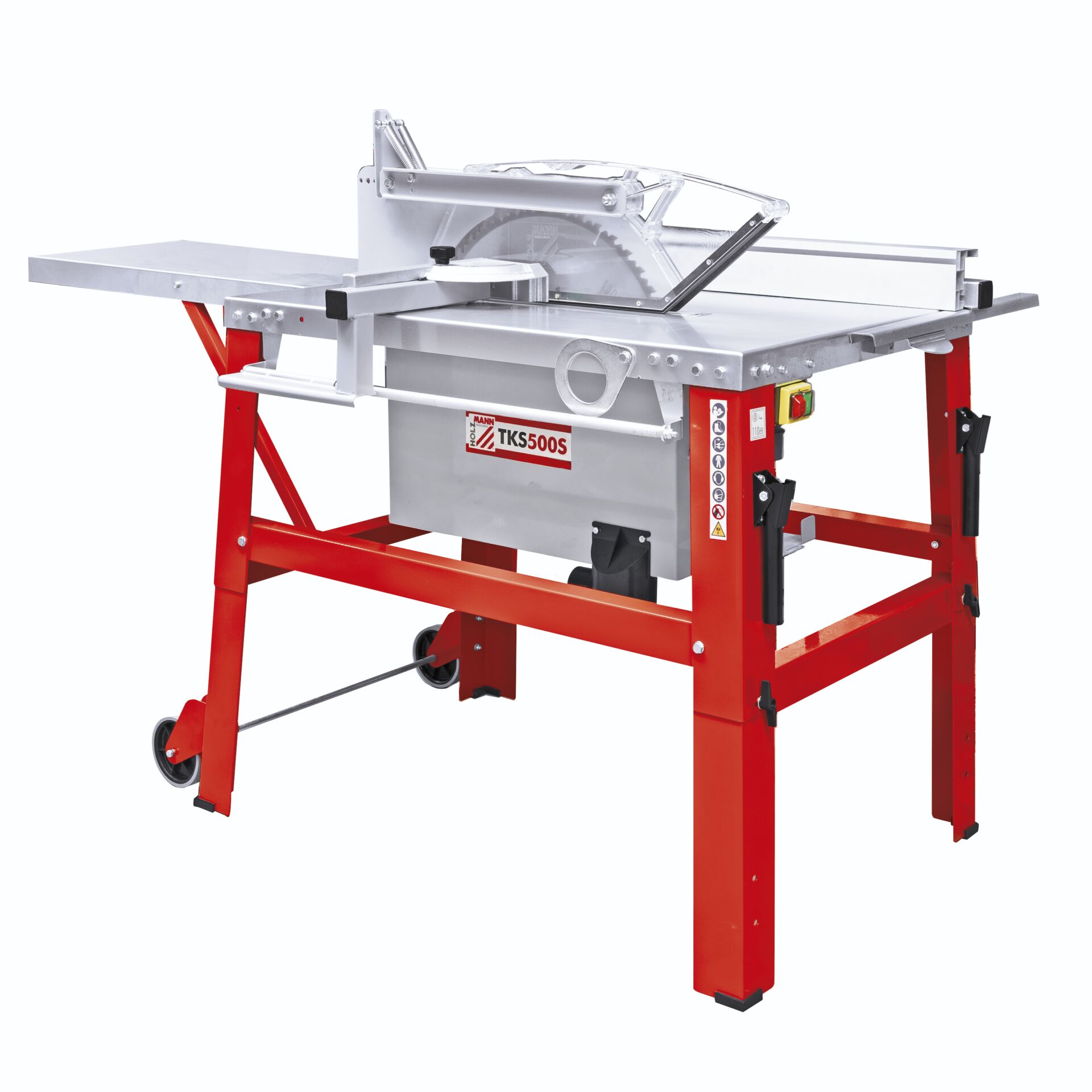

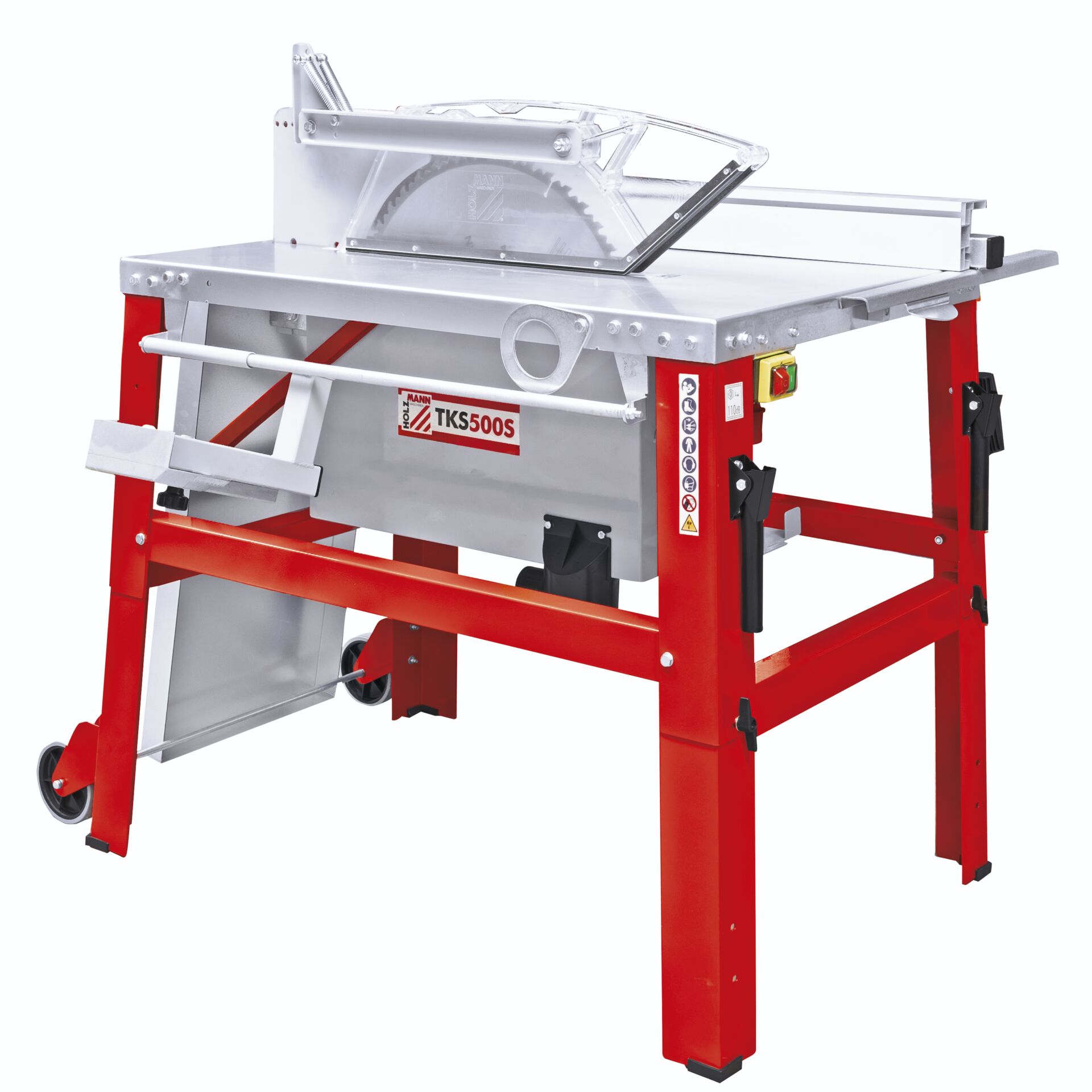

Holzmann TKS500S Construction and Table Saw 400V

The Holzmann TKS500S is a robust circular table saw powered by 400 V, engineered for construction sites and heavy-duty cutting operations.

Key Features

Large 150 mm cutting height at 90° using a 500 mm carbide saw blade
Powerful 4200 W S6 motor with 2800 rpm blade speed
Sturdy base frame equipped with a foldable table extension

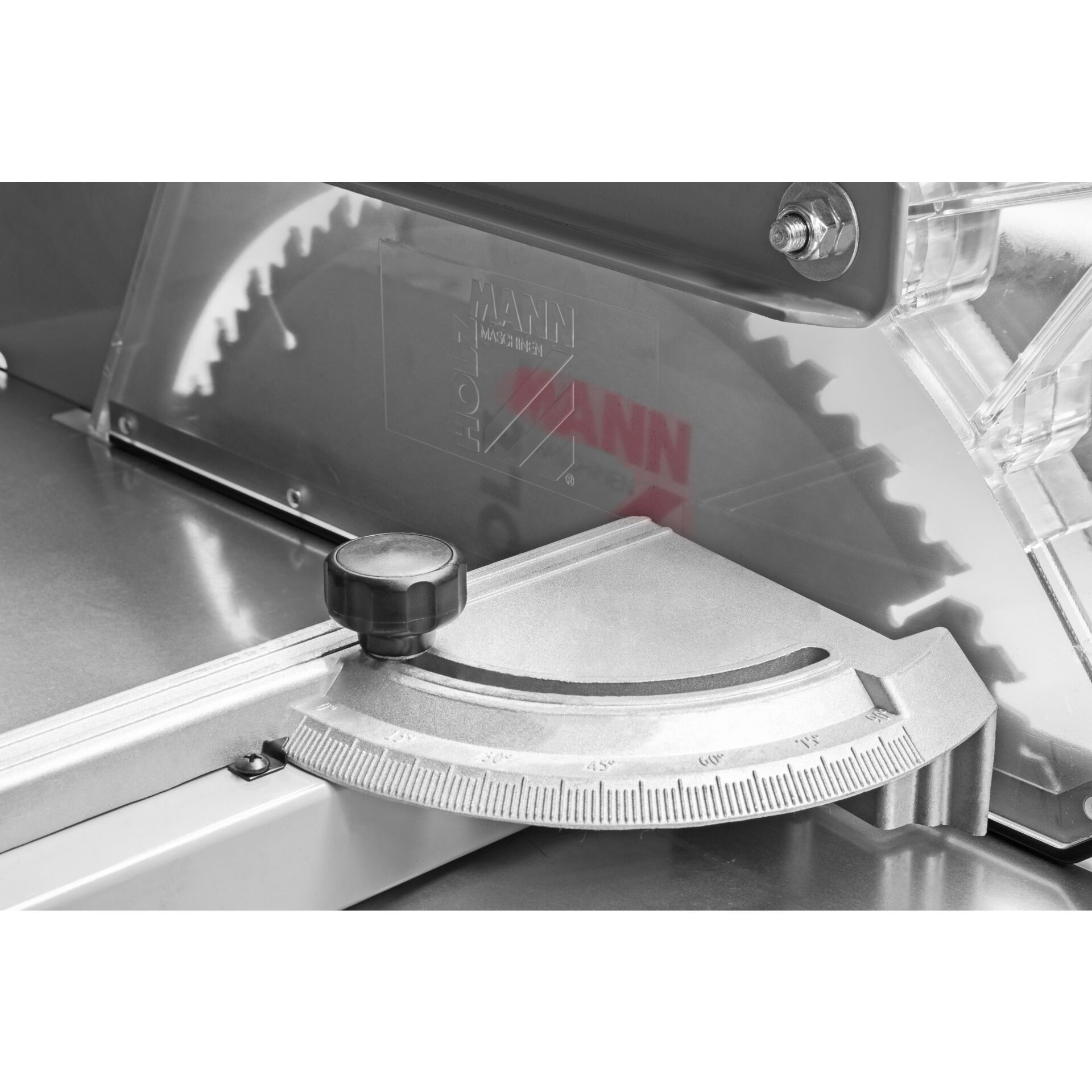

Rip fence and cross-cutting gauge with integrated wedge cutting gauge
Integrated wheels and transport handles for moving short distances
100 mm dust extraction port

Motor power S6	4200 W
Voltage	400 V / (50Hz)
Table size	1000 x 660 mm
Table height	850 mm
Table extension	800 x 400 mm
Installation dimensions	1075 x 790 x 1035 mm
Suction connection	ø 100 mm
Max. cutting height 90°	150 mm
Cutting width at rip fence	310 mm
Saw blade diameter	500 mm
Bore	30 mm
Saw blade speed	2800 min-1
Sound power level	110 dB(A)
Net weight	96 kg

What is the maximum cutting height of this saw?

The maximum cutting height at 90° is 150 mm when using the included 500 mm saw blade.

What items are included in the package?

The scope of delivery includes one carbide saw blade ø 500 x 30 x 4 (44T), a push stick, a tool for changing the saw blade, and a CEE plug with phase inverter.
