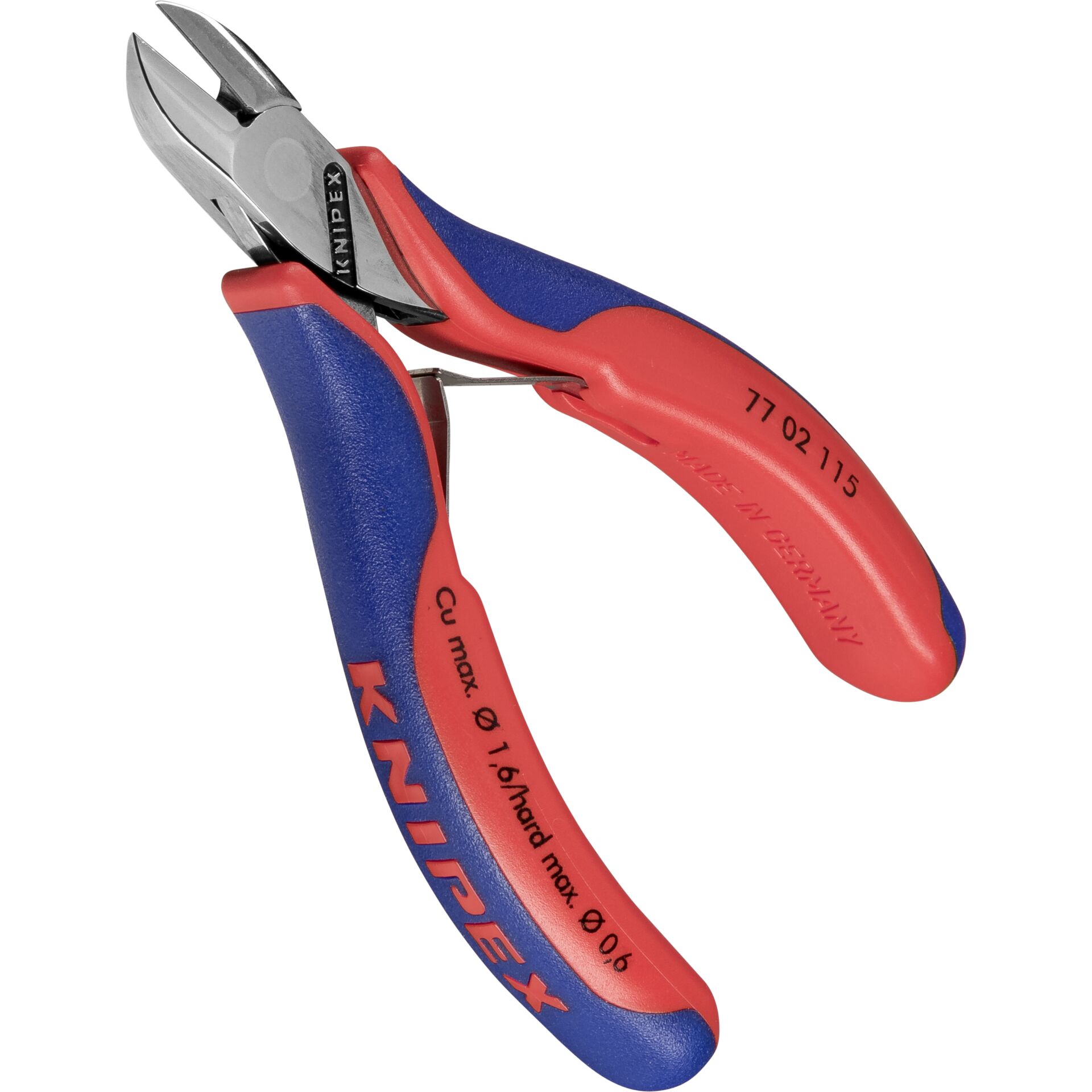

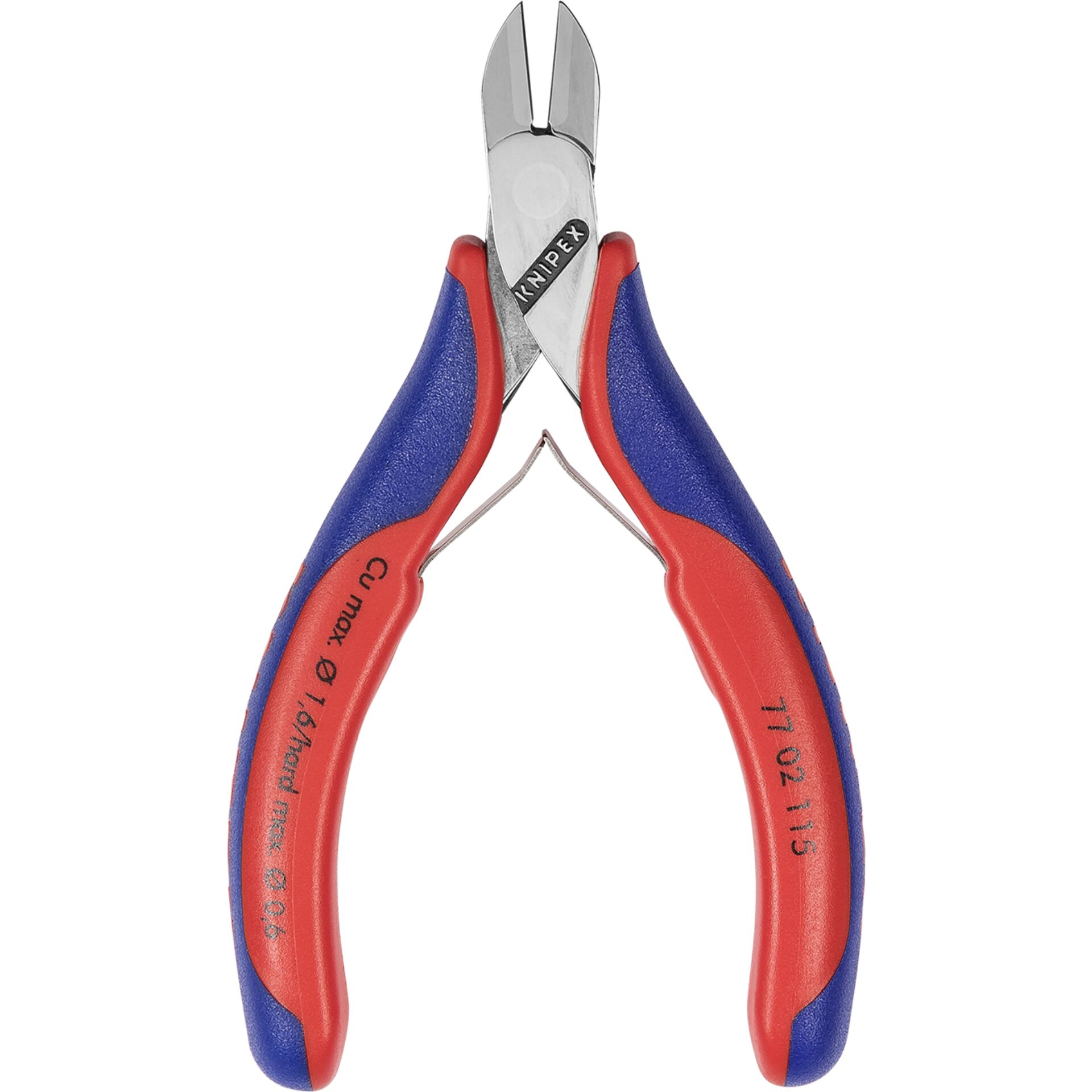

KNIPEX 77 02 115 Electronics Diagonal Cutter, 115 mm
Price: 44.60 €
| Products ID: | 184682 |
|---|---|
| Manufactured by: | Knipex |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4003773039334 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 29.09.–09.10.
Parcel-machine delivery
Free
Estimated: 01.10.–13.10.
Courier delivery
4.90 €
Estimated: 01.10.–13.10.

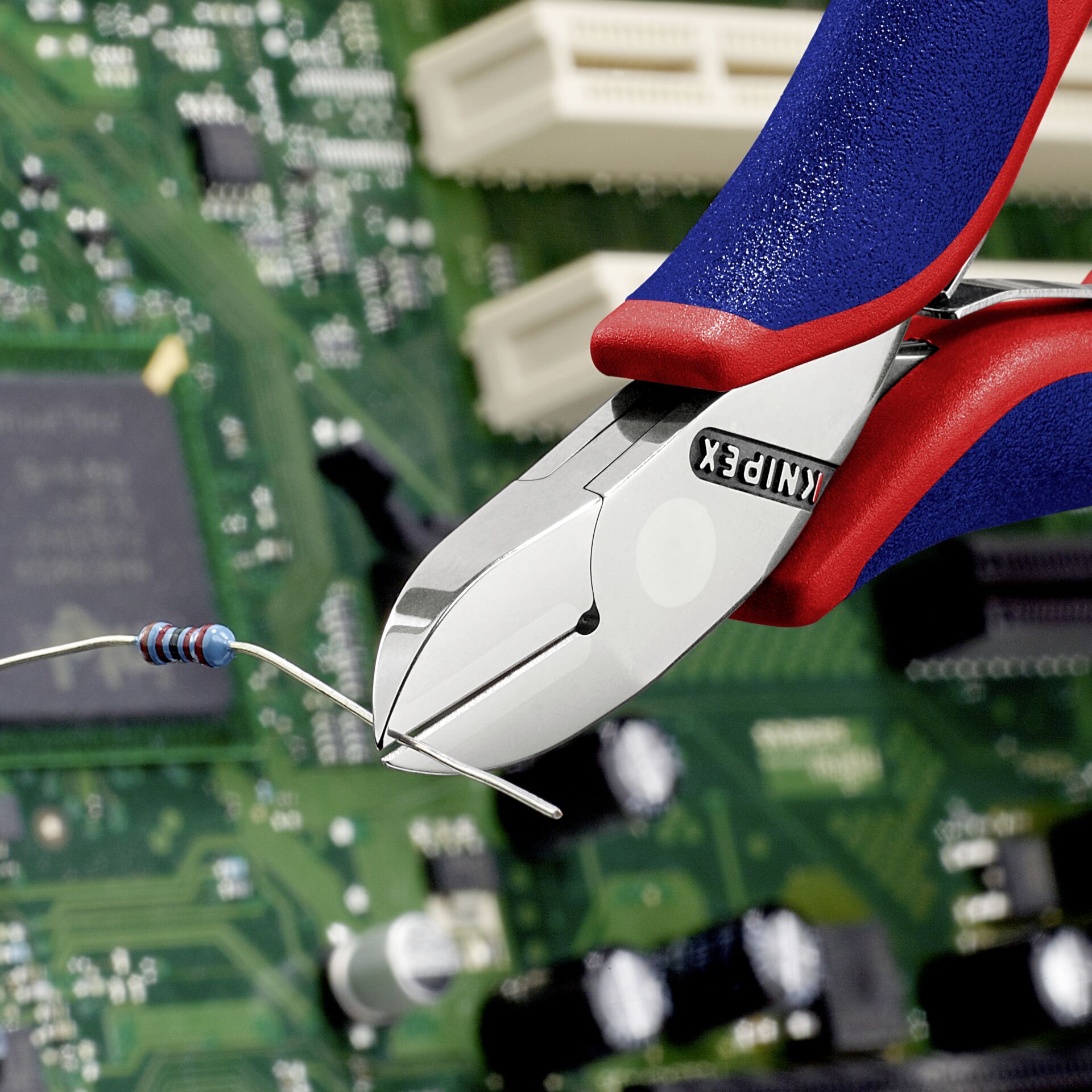

The KNIPEX 77 02 115 electronics diagonal cutter is engineered for precision assembly and delicate cutting tasks in electronics and precision engineering.
Key Features

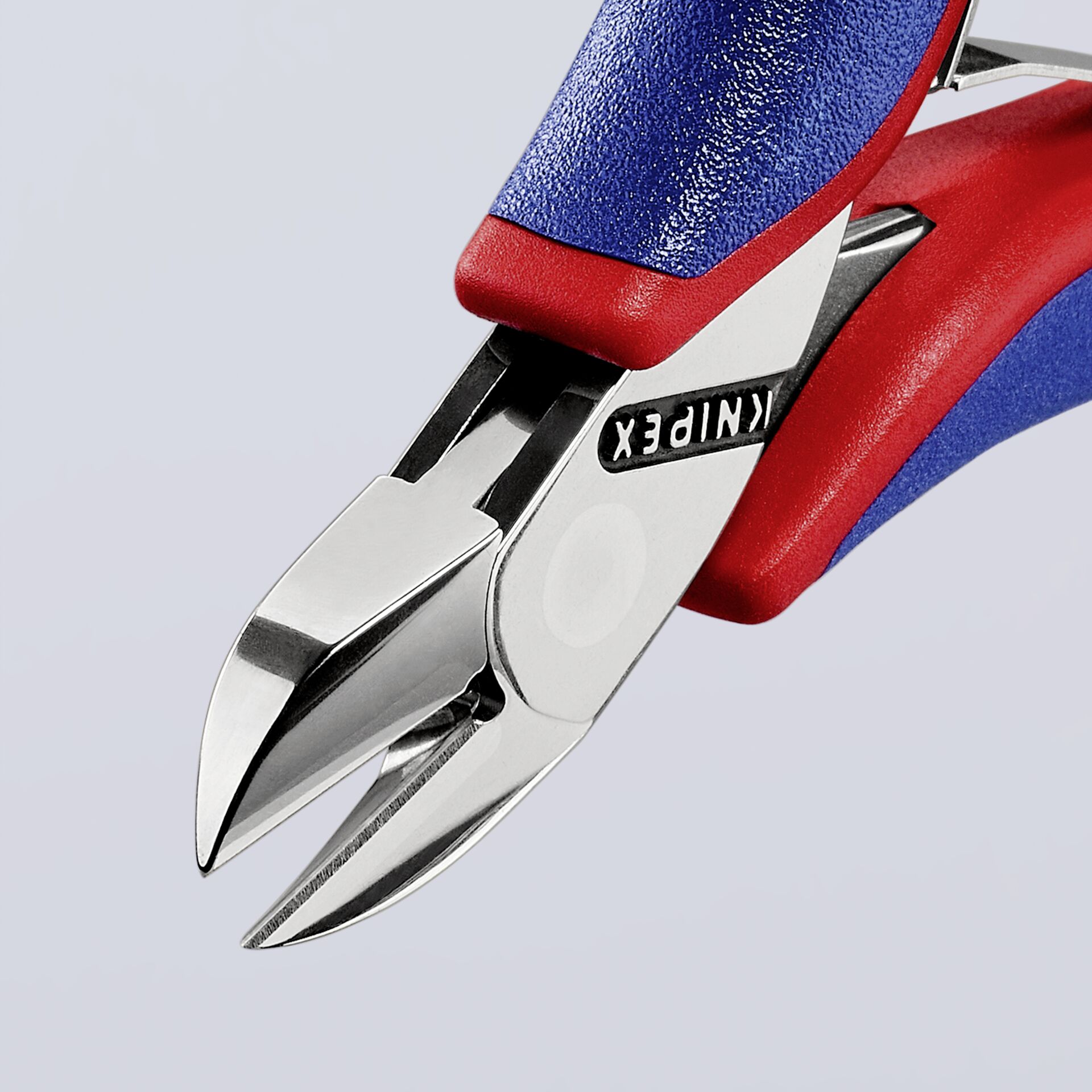

- Round head without bevel, mirror-polished finish
- Laser-hardened cutting edges with approx. 60 HRC hardness
- Sturdy, play-free box joint and smooth low-friction double spring
- Multi-component handle grips for reliable handling

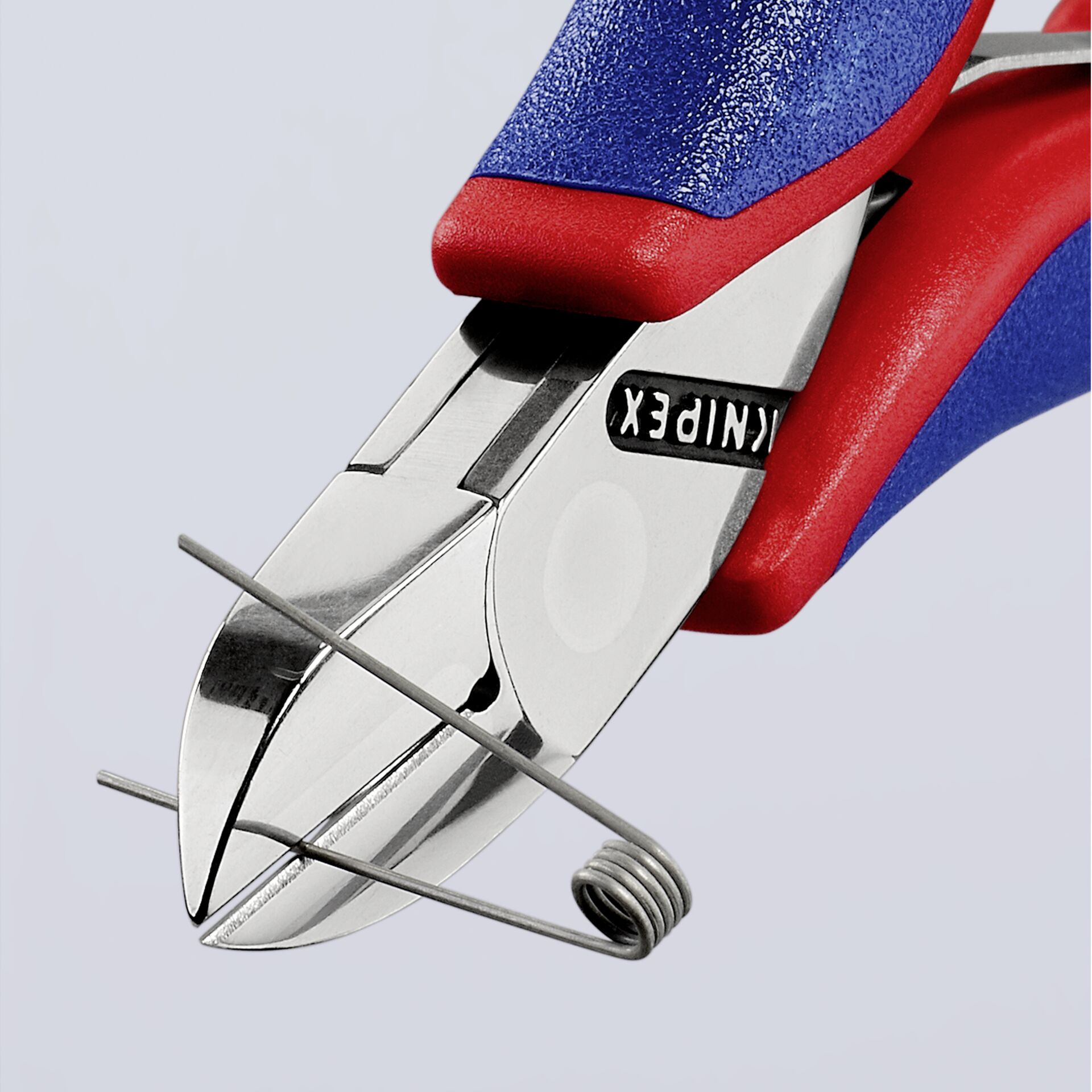

- Cuts soft wire from Ø 0.3 to 1.6 mm, medium-hard up to Ø 1.2 mm, and hard wire up to Ø 0.6 mm
| Product Type | Diagonal Cutter |
|---|---|
| Model | 77 02 115 |
| Shape | 0 |
| Head Shape | Round, without bevel |
| Head Finish | Mirror polished |
| Cutting Edge Hardness | approx. 60 HRC |
| Material | Steel / Plastic (ball bearing chrome steel, oil-hardened) |
| Handle Type | Multi-component covers |
| Colour | Red / Blue |
| Cutting Capacities (Soft Wire) | Ø 0.3 - 1.6 mm |
| Cutting Capacities (Medium Hard Wire) | Ø 1.2 mm |
| Cutting Capacities (Hard Wire) | Ø 0.6 mm |
| Jaw Length | 14 mm |
| Jaw Thickness at Joint | 7.5 mm |
| Head Width | 11 mm |
| Overall Length | 115 mm |
| Dimensions | 115 x 70 x 17 mm |
| Weight | 70 g |
| Collecting Container | No |
| Adjusting Screw | No |
What wire diameters can the KNIPEX 77 02 115 cut?
It is rated to cut soft wire between Ø 0.3 and 1.6 mm, medium-hard wire up to Ø 1.2 mm, and hard wire up to Ø 0.6 mm.
What are the dimensions and weight of this cutter?
The cutter measures 115 x 70 x 17 mm, has an overall length of 115 mm, and weighs 70 g.
