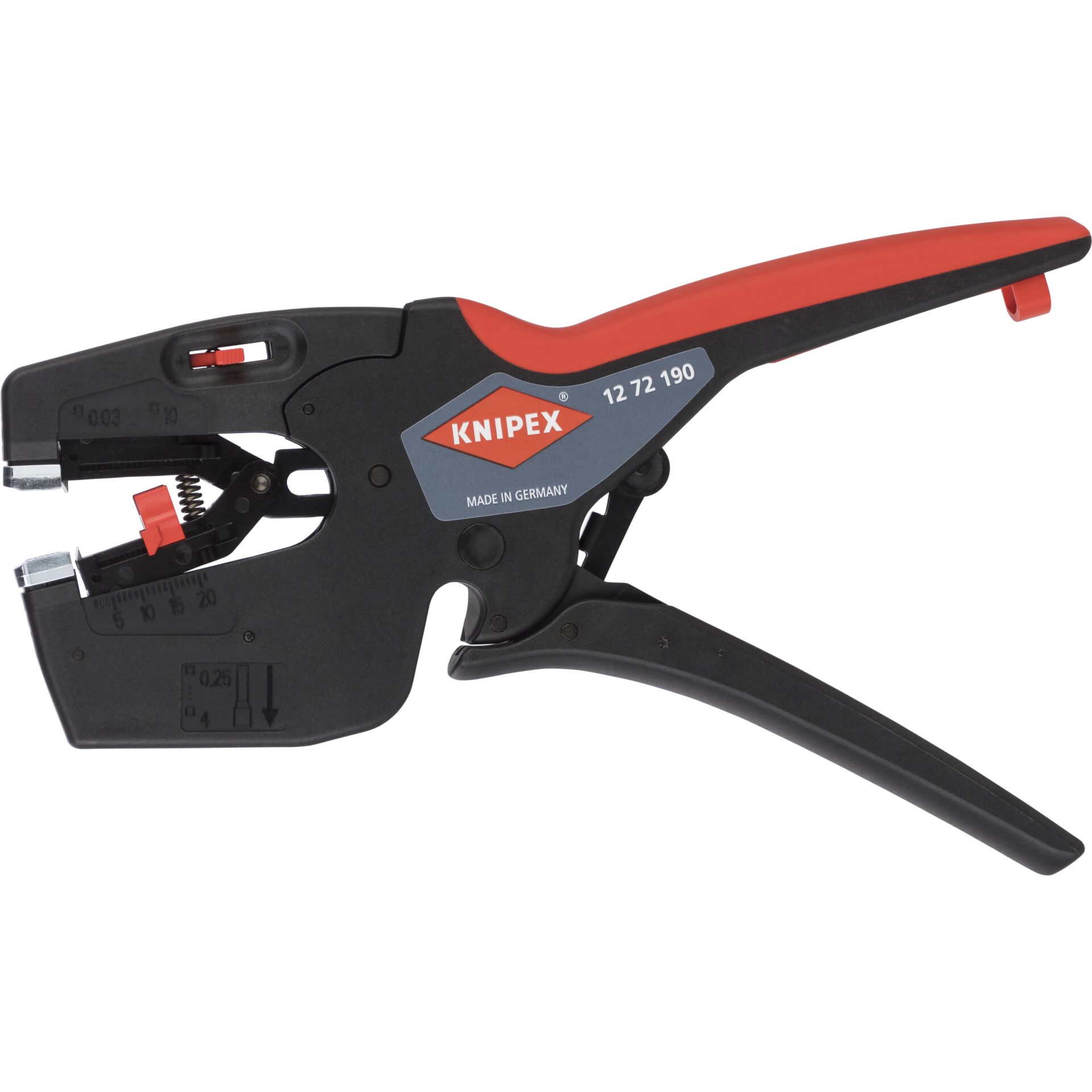

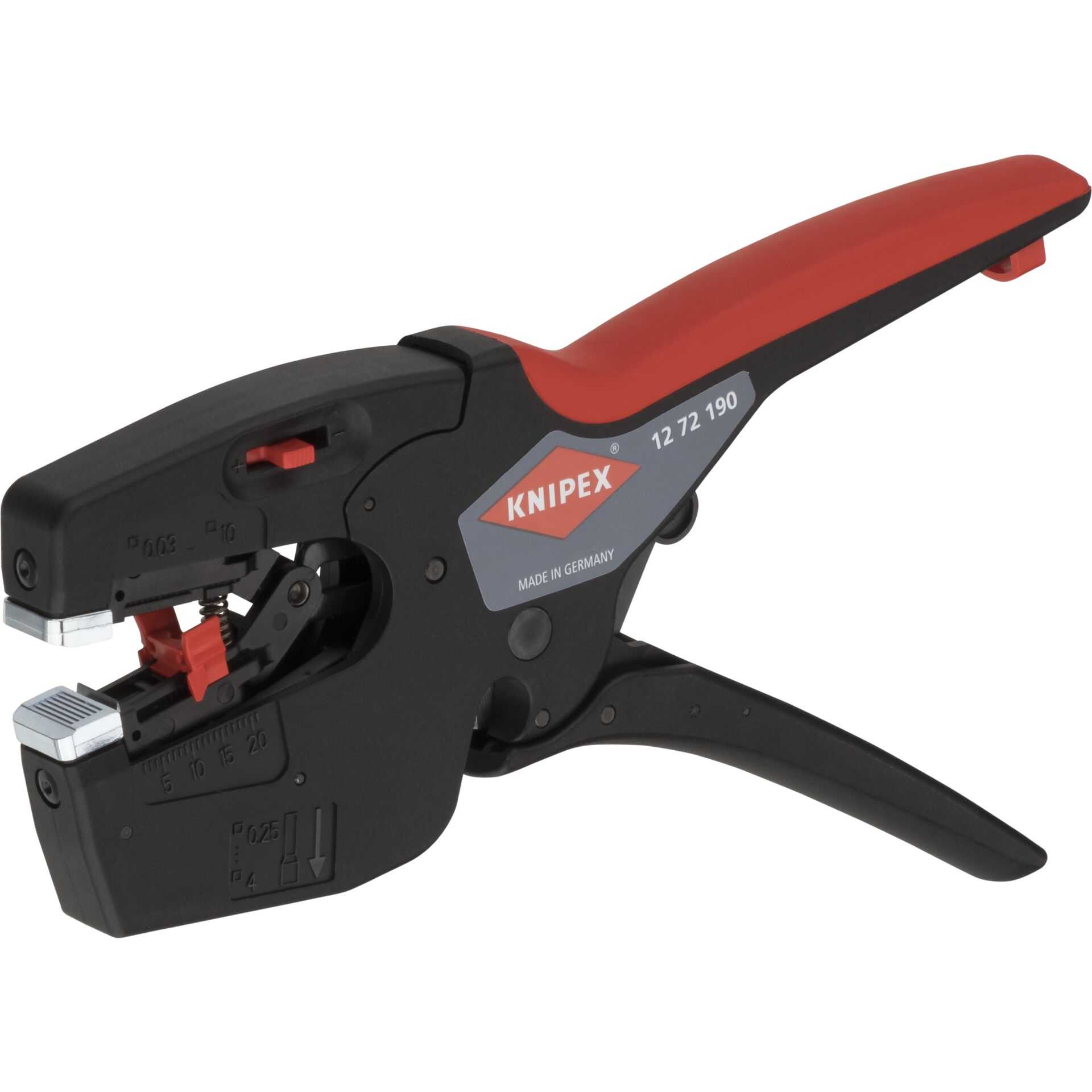

KNIPEX NexStrip 12 72 190 SB electrician's multi-tool
In your cart: 0
Delivery options to:
LatviaThe KNIPEX NexStrip 12 72 190 SB combines wire stripping, ferrule crimping and conductor cutting in one tool. It is designed for electrical work with solid and flexible conductors.
Three functions for wiring work

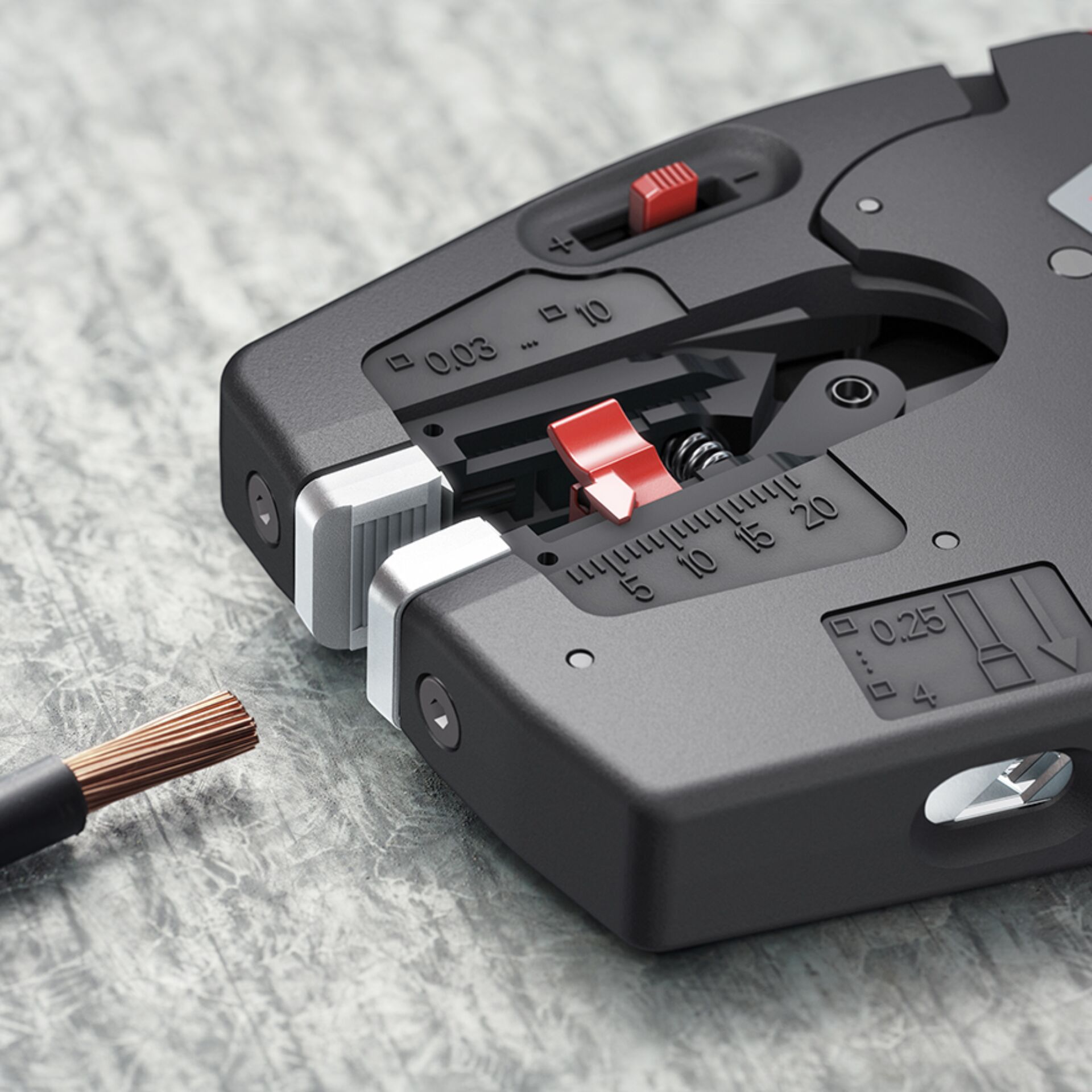

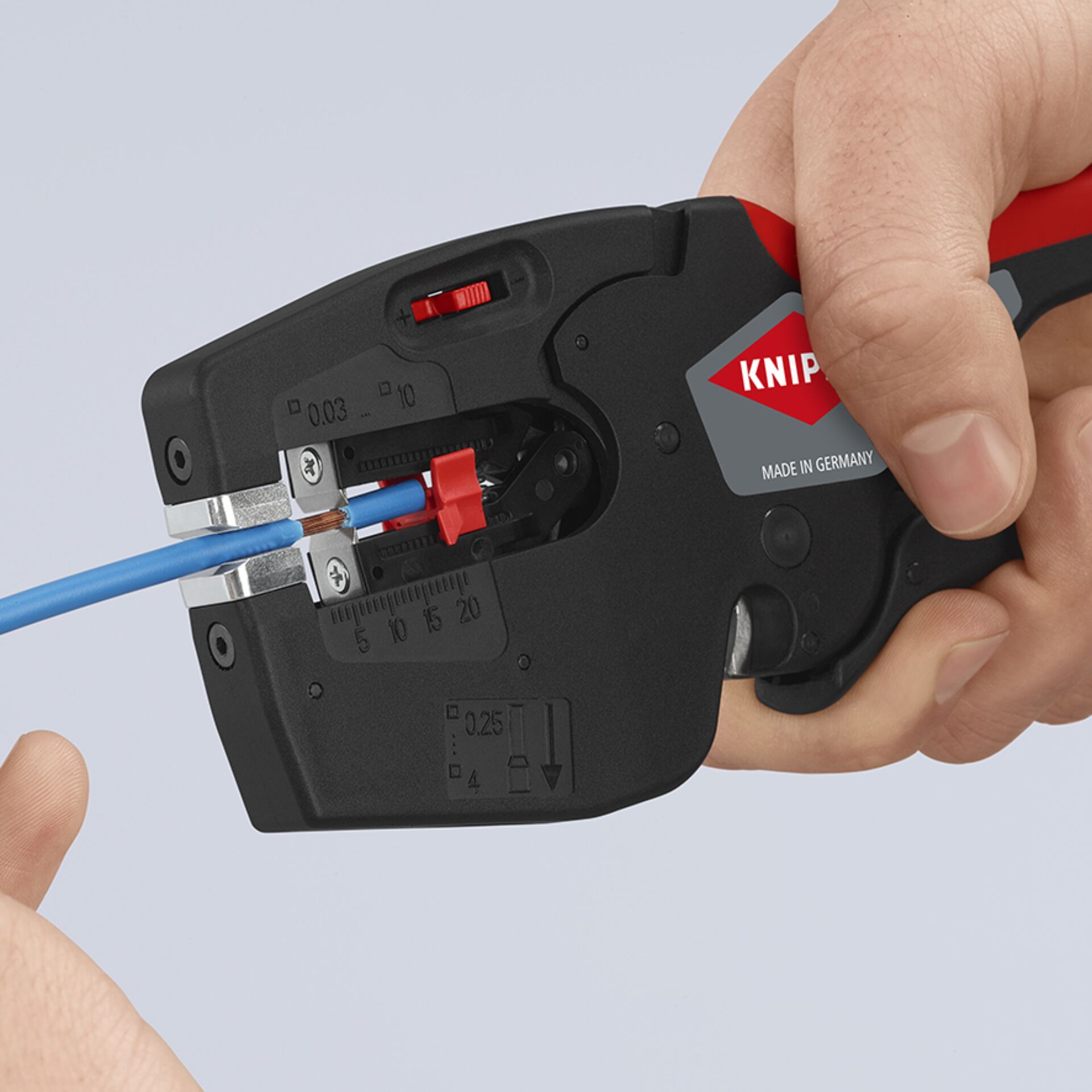

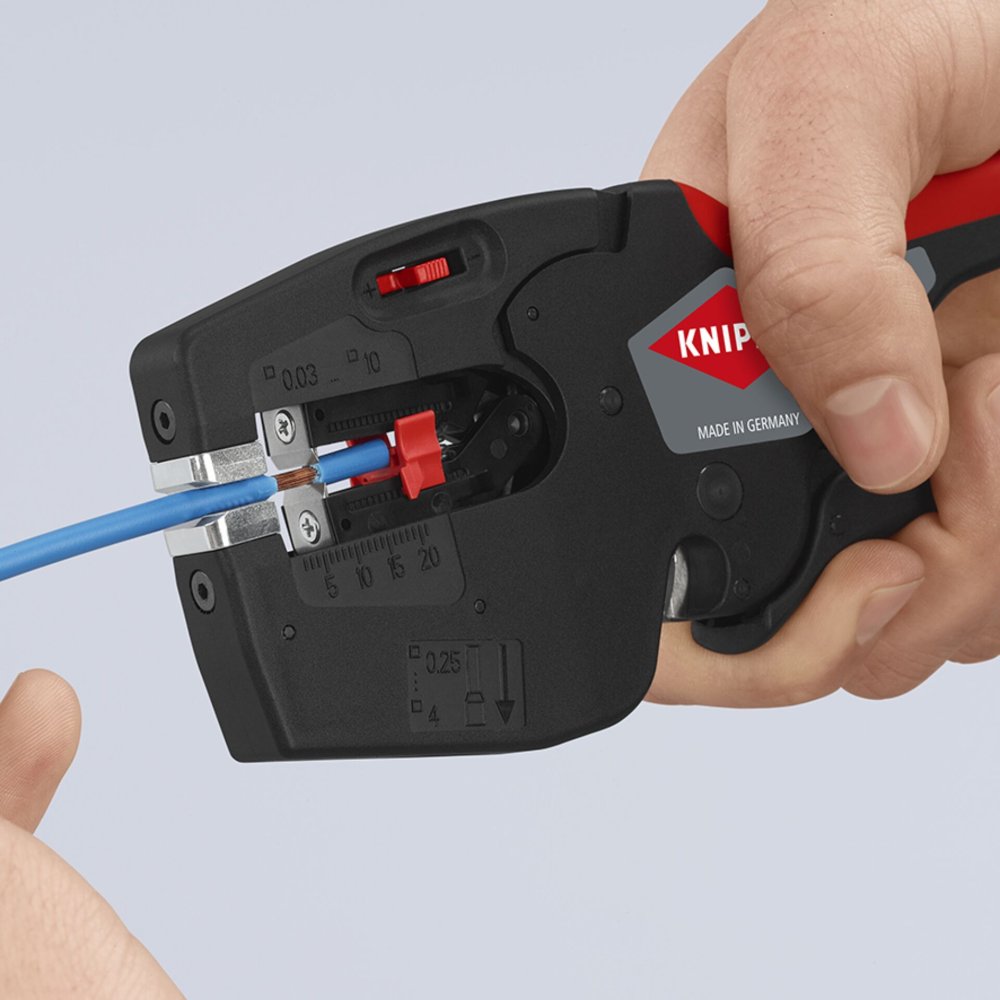

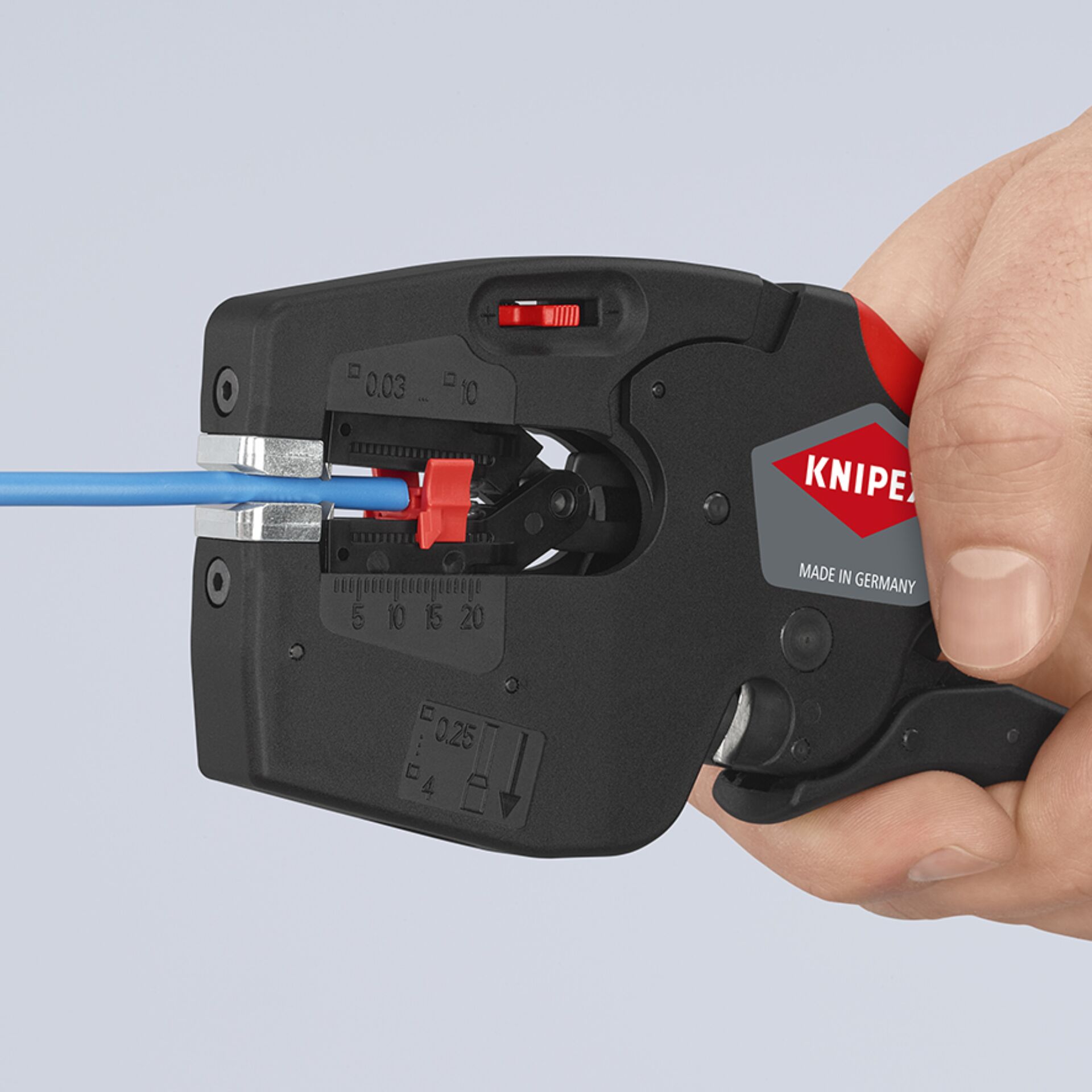

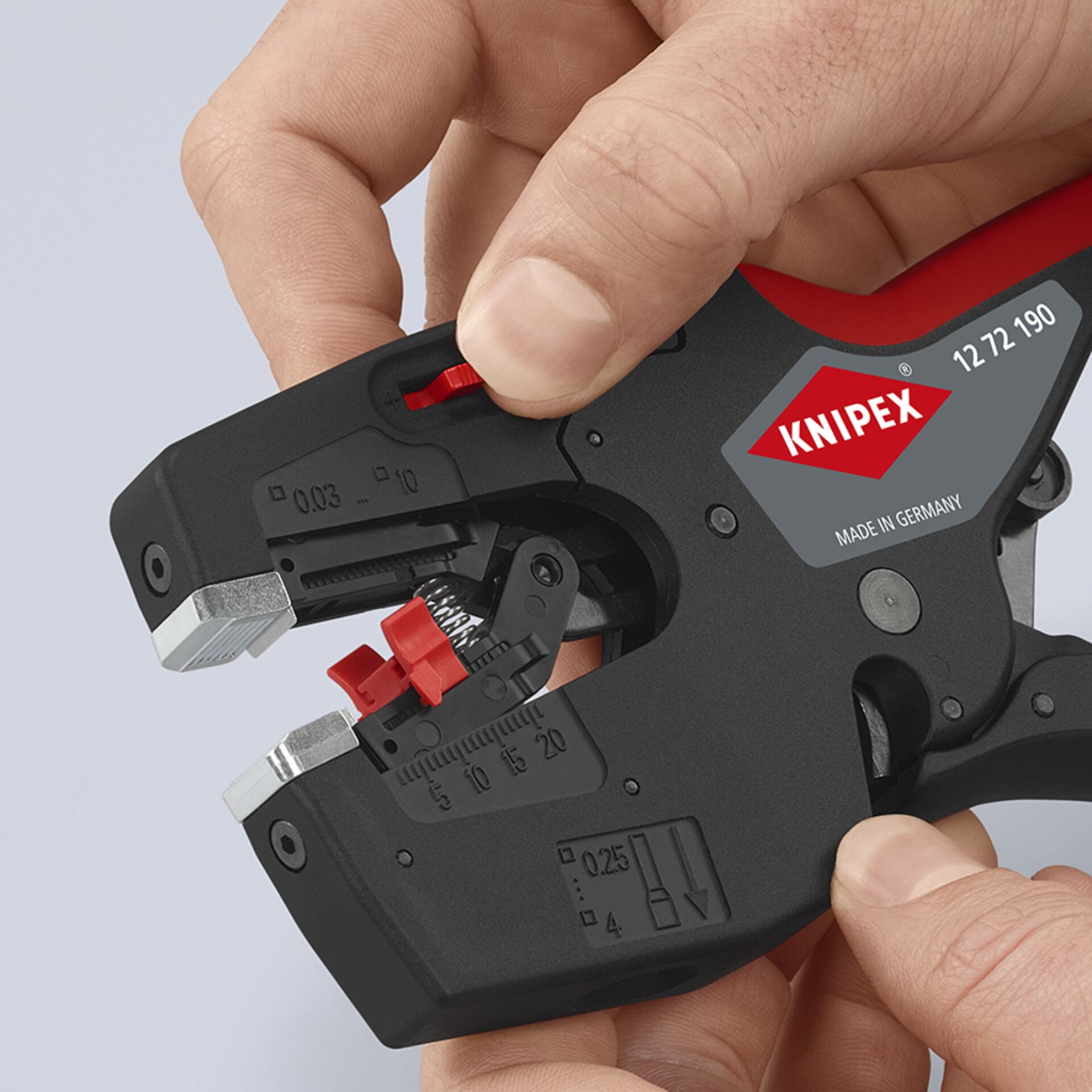

- Stripping: handles conductor cross-sections of 0.03–10 mm², with fine adjustment for special materials or temperature conditions.
- Crimping: produces square crimps on individual wire end ferrules, with automatic adjustment between 0.25–4 mm².

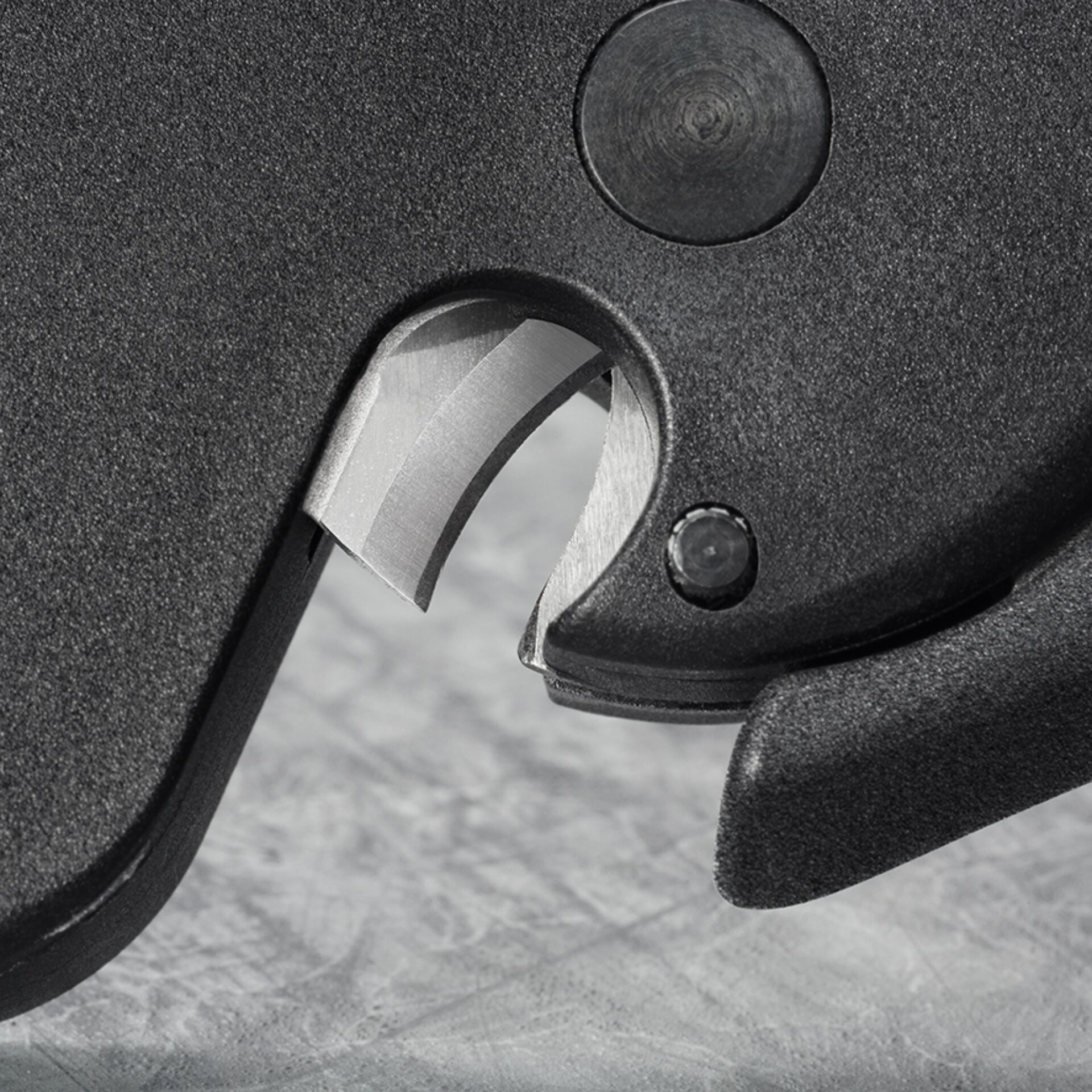

- Cutting: integrated cable shears cut conductors up to 10 mm².

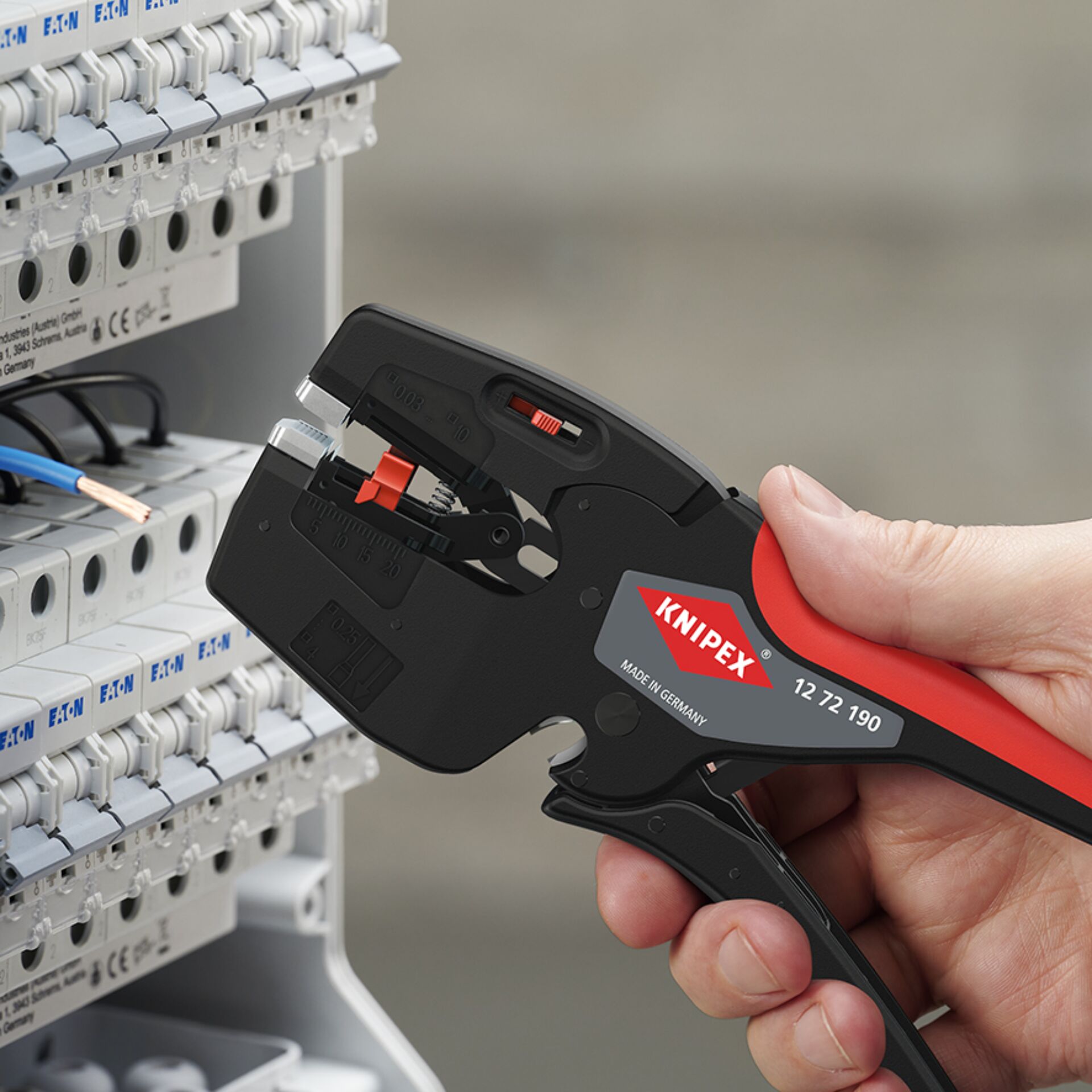

The 190 mm tool has a glass-fibre-reinforced plastic housing and anti-slip plastic handle covers. It is intended for electrical professionals wiring electronic devices such as programmable logic controllers, as well as working on domestic installations and motorhomes.
| Length | 190 mm |
|---|---|
| Weight | 170 g |
| Handles | Anti-slip plastic covers |
| Housing material | Glass-fibre-reinforced plastic |
| Material | Plastic / metal |
| Number of functions | 3 |
| Colour | Black / red |
| Type | Multi-tool pliers |
| Field of application | Electrical engineering |
| Stripping range | 0.03–10 mm²; solid and flexible conductors |
| Ferrule crimping range | 0.25–4 mm²; self-adjusting |
| Crimp profile | Square; for individual wire end ferrules |
| Maximum conductor cutting cross-section | 10 mm² |
| Fine adjustment | For adaptation to special materials or temperature conditions |
| EAN | 4003773088592 |
|---|
Are the stripping and crimping ranges the same?
No. The stripping range is 0.03–10 mm² for solid and flexible conductors, while individual wire end ferrules can be crimped in the 0.25–4 mm² range.
Can this tool also cut conductors?
Yes. The integrated cable shears cut conductors with cross-sections up to 10 mm².
