Wiha Rotating Field Direction Indicator 100-700 V AC, CAT IV (45221)
Price: 80.40 €
| Products ID: | 180526 |
|---|---|
| Manufactured by: | Wiha |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4010995452216 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 29.09.–09.10.
Parcel-machine delivery
Free
Estimated: 01.10.–13.10.
Courier delivery
4.90 €
Estimated: 01.10.–13.10.

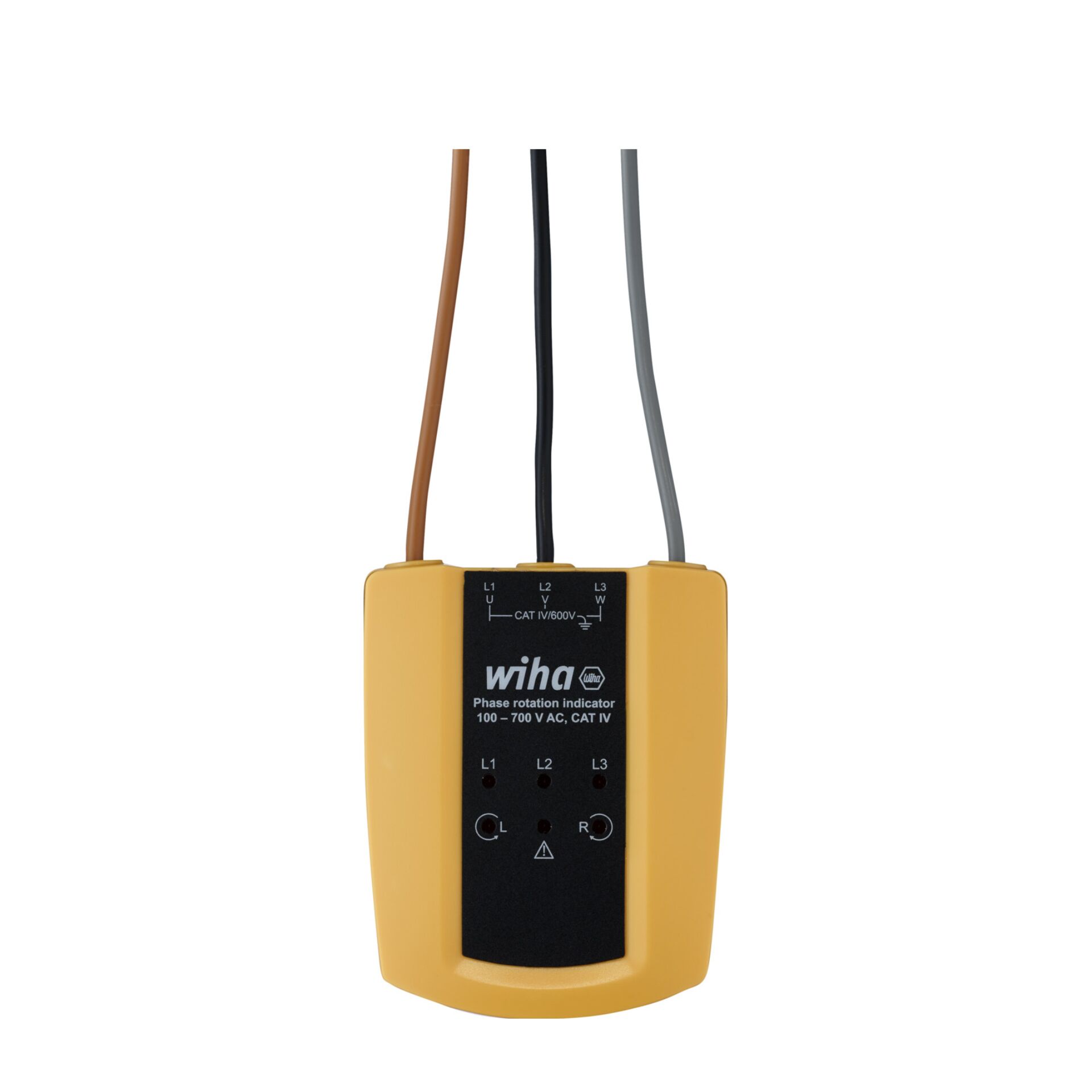

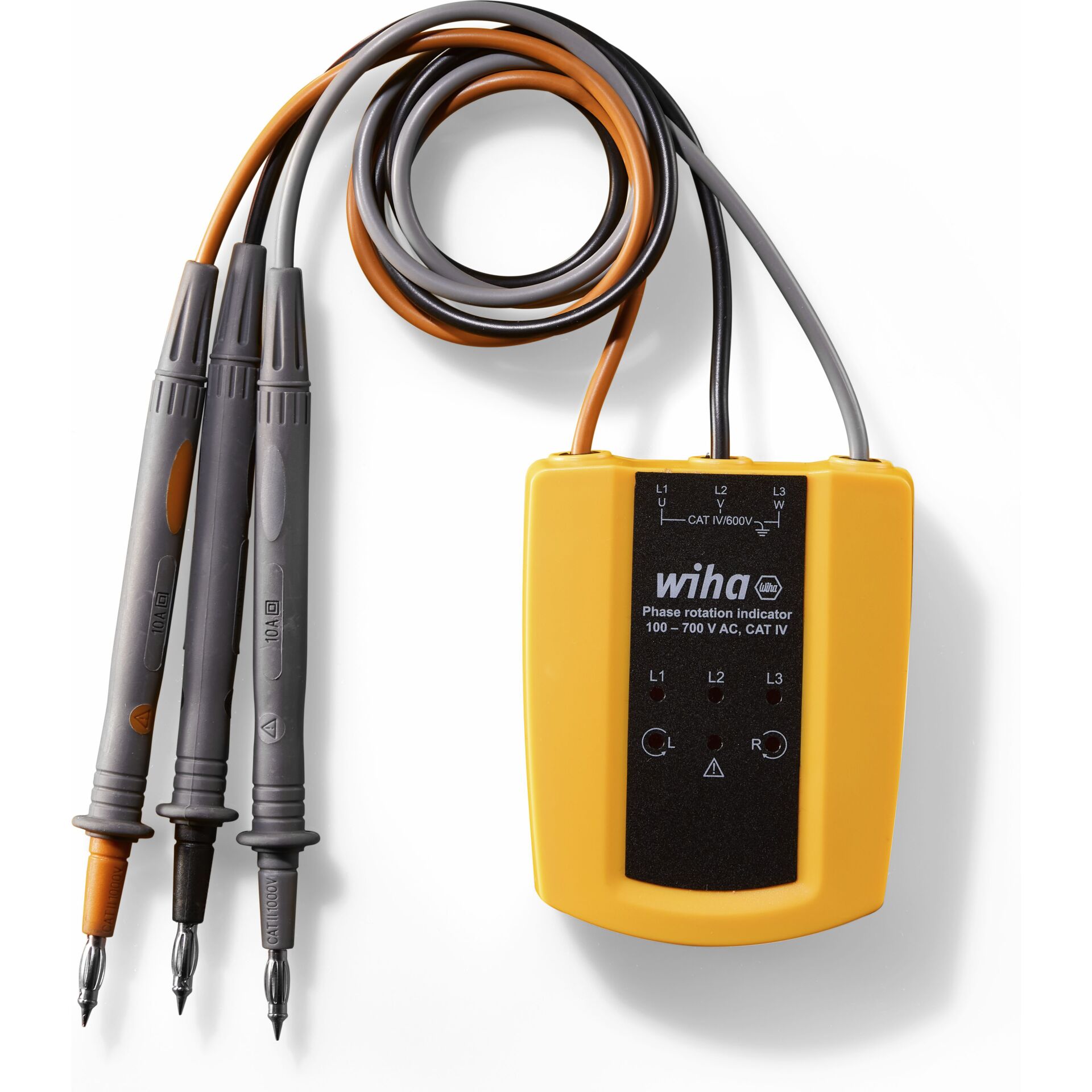

The Wiha rotating field direction indicator is designed to determine the direction of phase rotation and inspect voltage-carrying phases in three-phase electrical systems.
Key Features
- Determines direction of rotation with integrated phase status display

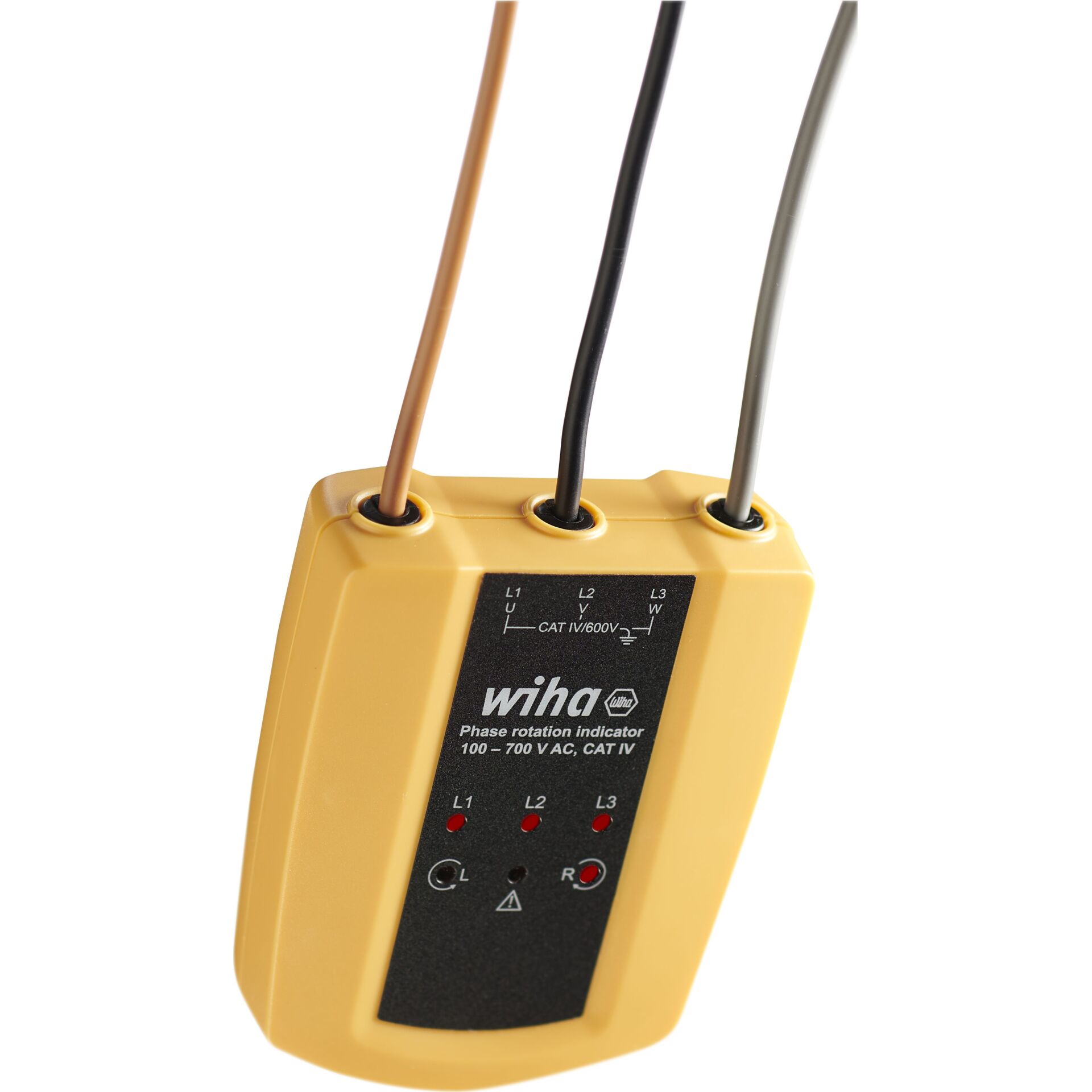

- LED indicators for rotation direction (L, R) and active phases (L1, L2, L3)
- Dedicated LED warning indicator for enhanced user safety
- Operates directly from mains voltage without requiring batteries
- Certified for CAT IV up to 600 V and CAT III up to 1,000 V environments
- Equipped with three flexible test leads for versatile application
| Measurement Category | CAT IV 600 V / CAT III 1 000 V |
|---|---|
| Voltage Range (Phase to Phase) | 100 V – 700 V AC |
| Maximum Input Voltage (Phase to Neutral) | 400 V |
| Current Consumption | 3.5 mA |
| Power Supply | Mains voltage (no batteries required) |
| Display Type | LED (L, R, L1, L2, L3, Warning) |
| Degree of Protection | IP40 |
| Surge Protection | 600 V |
| Number of Test Leads | 3 |
| Degree of Contamination | 2 |
| Standards | IEC/EN 61010-1, IEC/EN 61577-7, IEC/EN 611010-031 |
| Dimensions | 93 x 75 x 31 mm |
| Weight | 115 g |
| Colour | Yellow / Black |
Are batteries required to operate this indicator?
No, the device does not require batteries as it draws operating power directly from the mains voltage.
What is the operating voltage range for this tester?
The phase-to-phase voltage range is 100 V to 700 V AC, with a maximum phase-to-neutral input voltage of 400 V.
