Thermal Master P2 USB-C Mini Thermal Camera (TM-P2)
THERMAL MASTER
Price: 204.50 €
| Products ID: | 176723 |
|---|---|
| Manufactured by: | THERMAL MASTER |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6977658980012 |
Delivery options to:
LatviaOffice pickup
Free
Estimated: 02.10.–13.10.
Parcel-machine delivery
Free
Estimated: 06.10.–15.10.
Courier delivery
4.90 €
Estimated: 06.10.–15.10.

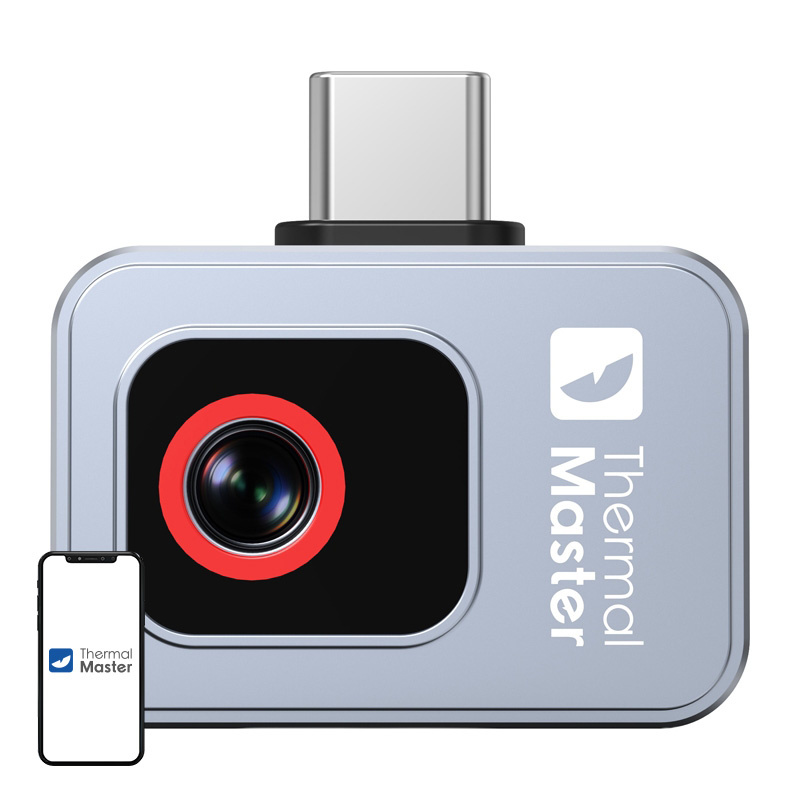

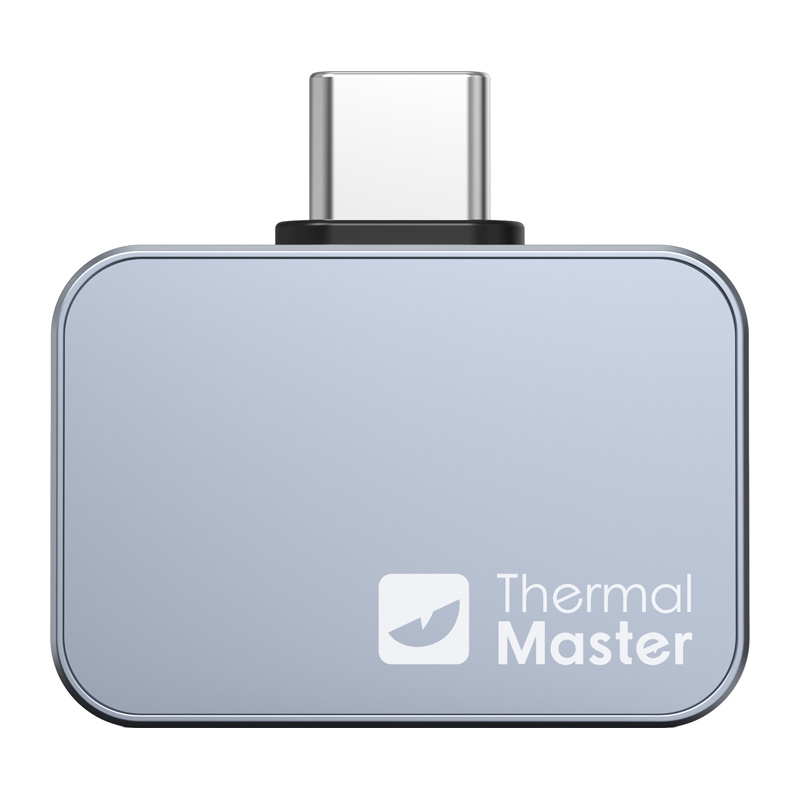

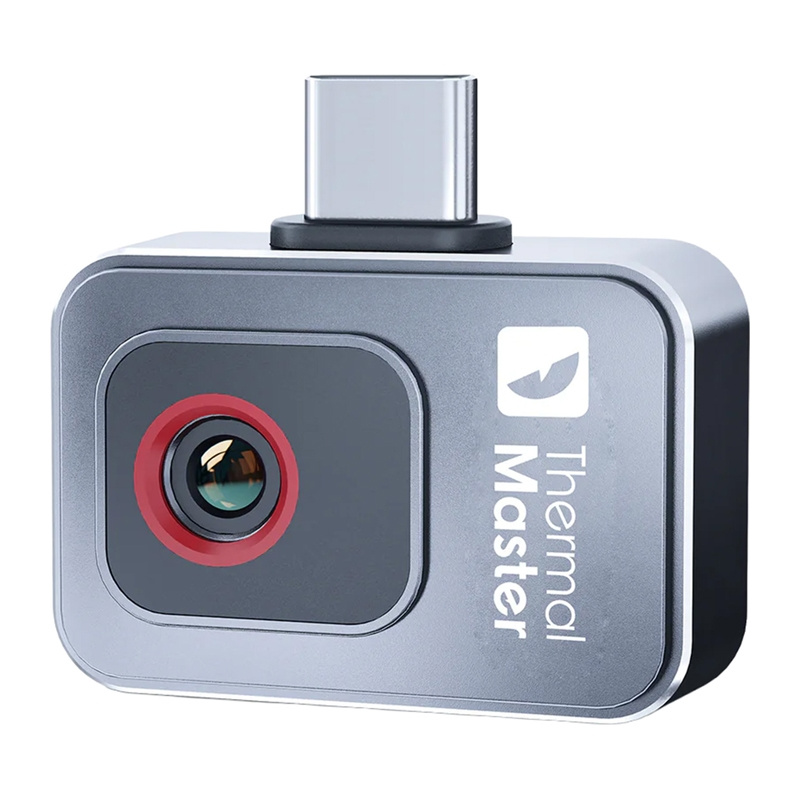

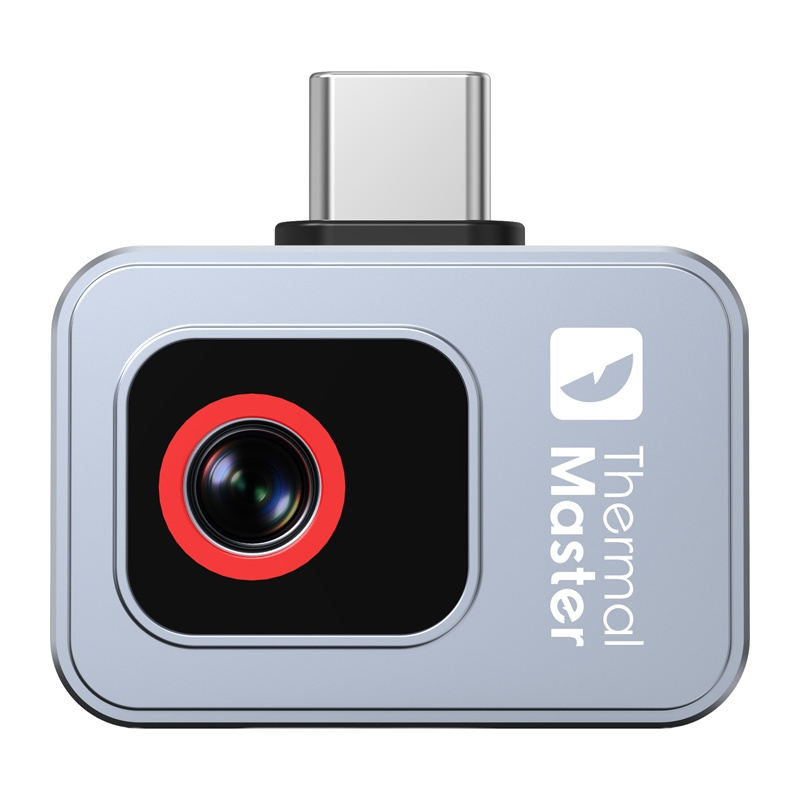

The Thermal Master P2 is a compact mini thermal camera for Android smartphones, tablets, and computers, offering precise diagnostics and temperature monitoring.
Key Features
- Infrared resolution of 256 × 192 pixels with Razor X™ algorithm and X³IR technology.
- Temperature measurement range from -20°C to 600°C with ±1.5°C accuracy.
- Ultra-lightweight 10 g design with compact dimensions of 31 × 23 × 10 mm.
- Low power consumption of 0.3 W powered directly via USB-C.
- Temp Master companion app offering 12 color palettes and spot, line, and area analysis.
- Ideal for electrical inspections, HVAC, plumbing, building diagnostics, and automotive repairs.
| Manufacturer | THERMAL MASTER |
|---|---|
| Model | TM-P2 |
| Infrared (IR) resolution | 256 × 192 pixels (12 μm) |
| Temperature measurement range | From -20°C to 600°C |
| Temperature measurement accuracy | ±1.5°C (PCB-grade accuracy, IQ+ Precision Temperature Measurement technology) |
| Estimated operating time | 300 to 480 minutes (e.g., Samsung Galaxy S23+ with a 4700 mAh battery – approximately 367 minutes of operation) |
| Power consumption | 0.3 W |
| Zoom | 15× digital zoom |
| Thermal sensitivity (NETD) | ≤ 40 mK at 25°C, F#1.0 |
| Refresh rate | 25 Hz |
| Colorbar technology | Highlighting objects at a specific temperature |
| Free professional analysis | Point, line, and surface analysis |
| Color palettes | 12 palettes (White Hot, Black Hot, Iron Red, Red Hot, and 8 others) |
| Temperature correction | Adjustment for emissivity, distance, and ambient temperature |
| Adaptation method | Smartphone / tablet / computer |
| Application scenarios | Electrical inspections, HVAC, piping, residential, and automotive |
| Image algorithm | Razor X™ Ultra Clear Image Algorithm |
| Infrared core | Thermal Master High-Sensitivity Core |
| Focus mode | Athermalized prime lens |
| Field of view (FOV) | 56.0° (horizontal) × 42.2° (vertical) |
| Weight | 10 g |
| Video and Photo Recording | Capable of saving photos and videos |
| Dimensions | 31 × 23 × 10 mm |
| Operating Temperature | -15°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| App Name | Temp Master |
| Supported OS | Android 6.0 and later |
What is included in the package?

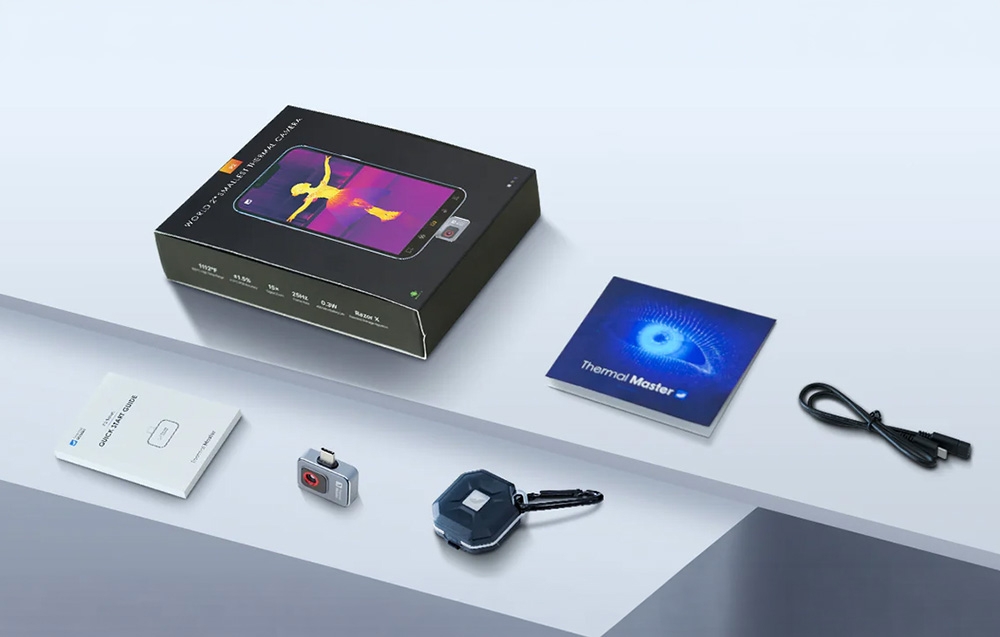

The package includes the Thermal Master P2 thermal imaging camera, a protective case with a carabiner, a 50 cm USB-C extension cable, and a quick start guide.
What operating systems are supported?
The camera supports Android 6.0 and newer versions and can also be used with compatible tablets and computers.
