Newell Pure Sine Wave Voltage Inverter - 12 V / 230 V, 500 W
Newell
| Products ID: | 194985 |
|---|---|
| Manufactured by: | Newell |
| Availablity: | SOLDOUT! |
| EAN: | 5907489647878 |
The Newell pure sine wave voltage inverter converts 12 V direct current from a battery or vehicle cigarette lighter socket into 230 V alternating current, providing a dependable power supply wherever standard mains electricity is unavailable.
Pure Sine Wave Output
By delivering a waveform virtually identical to home mains power, this 500 W inverter safely powers sensitive electronics as well as inductive loads, including central heating pumps, compressor fridges, audio equipment, and computers. It achieves up to 94% operating efficiency at 100% load, with a peak pulse power of 1000 W.
Convenient Connections and Monitoring

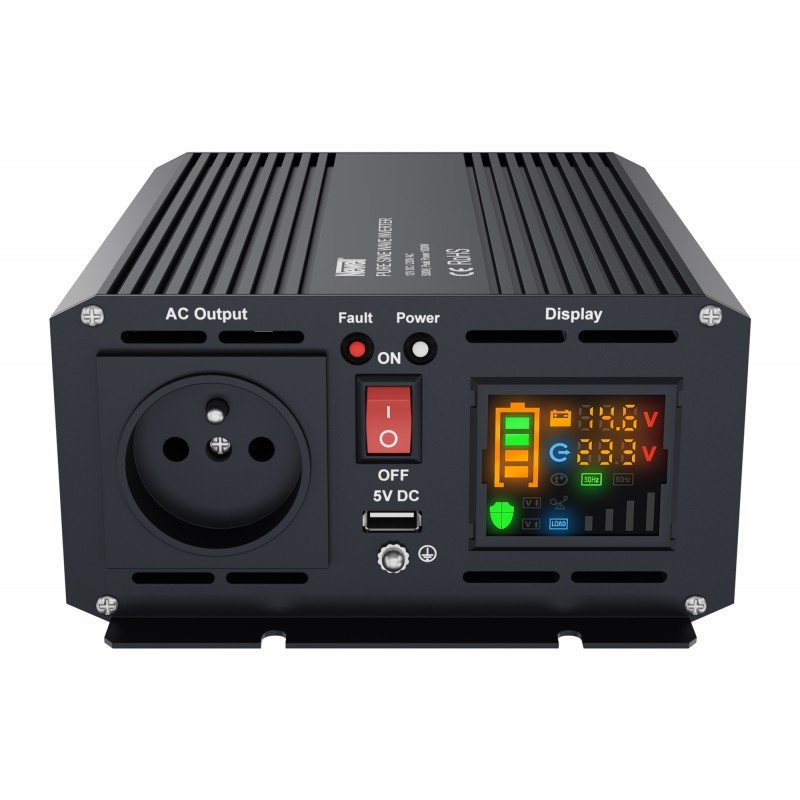

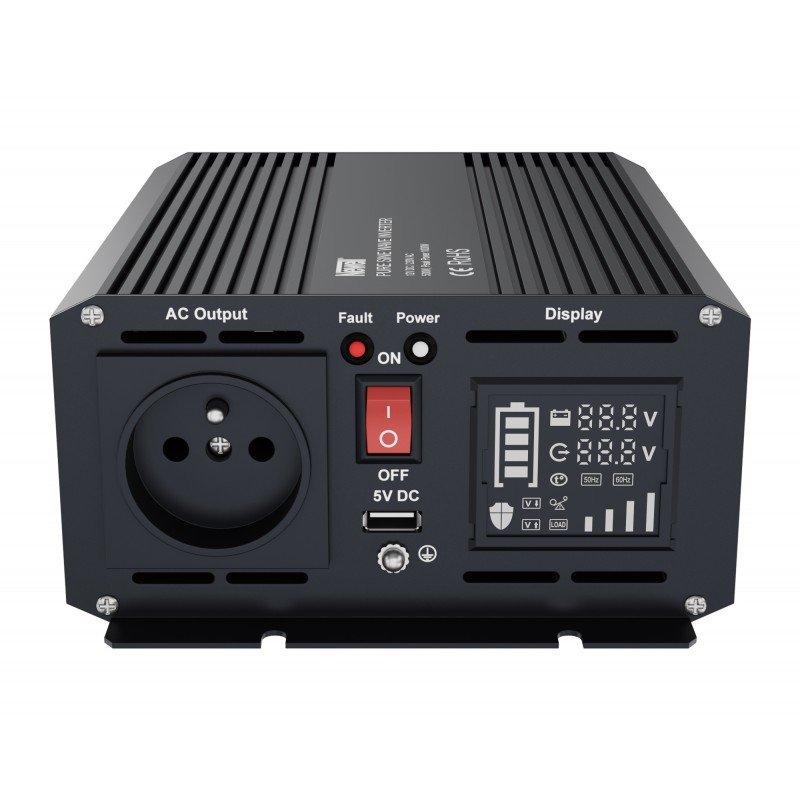

The unit features one standard Type E 230 V AC electrical outlet and a 5 V / 2 A USB-A port for mobile devices. An illuminated display provides real-time information on voltage, frequency, output load, battery level, and diagnostic protection indicators.
Protection and Complete Accessories

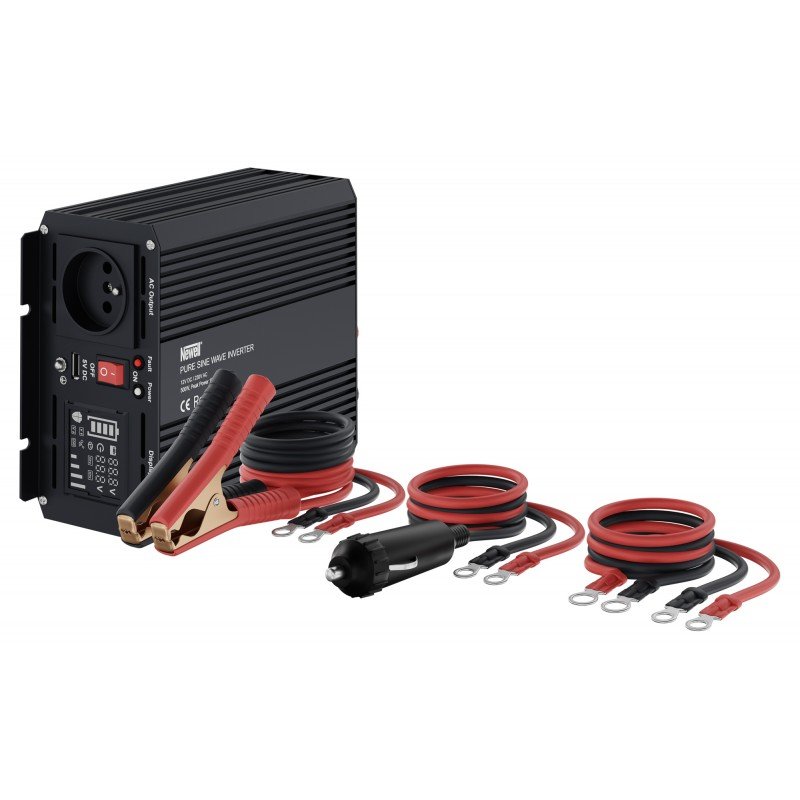

Certified to CE and RoHS standards, the inverter incorporates multi-stage protection against overvoltage, short circuit, overheating, and overcharging. The intelligent cooling fan automatically adjusts to internal temperature. The package includes three connection cable sets: a cigarette lighter plug, battery clamp cables, and eyelet terminal cables.
| Output voltage | 230 V ± 5% |
|---|---|
| Usable power (constant) | 500 W |
| Instantaneous power (pulsed) | 1000 W |
| Operating efficiency | 94% (at 100% load) |
| Nominal input voltage | 12 V DC |
| USB port | 5 V / 2 A |
| Output frequency | 50 / 60 Hz |
| Wave shape | Pure sine wave |
| Cooling | Cooling fans |
| Operating temperature range | -10ºC - 50ºC |
| Dimensions (L x W x H) | 20 x 15 x 8 cm |
| Weight | 1980 g |
What connection cables are included with the inverter?
The package includes a car cigarette lighter cable, battery cables with clamps, and battery cables with eyelet terminals.
What outputs are available on the inverter?
The device includes one Type E 230 V AC power socket and one 5 V / 2 A USB-A charging port.
