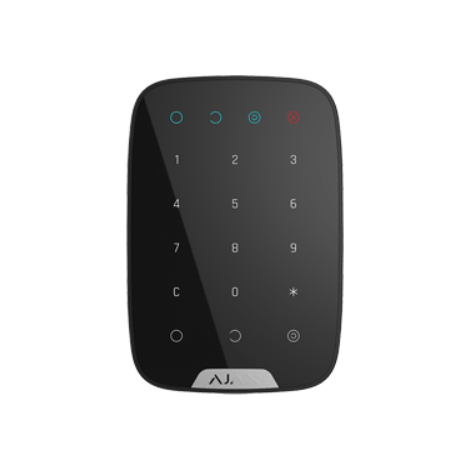

Wireless touch keyboard. Ajax KeyPad helps to manage the Ajax security system. Arm the system with a passcode or with the press of a button. Use a duress code to send a silent alarm to a central monitoring station.

Maximum performance
Works up to 1,700 meters from Ajax Hub in open space or across several floors of a business center. Allows for partial arming of the system. Indication of protection status.

Protection from intruders and failure
Protected with rolling code encryption and authentication. Tampering alarm. Response from the keyboard can be checked every 12-300 seconds (adjustable). Jamming detection, frequency-hopping.

Effortless operation
Through two-way communication with the hub, the keyboard confirms the delivery of any command. Has a battery life of up to 2 years when pinging once per minute. Arm/disarm with a passcode. One button arming.

Simple professional-level installation
No need to disassemble the body when installing using SmartBracket mounts. The signal strength can be tested remotely. Connects to Ajax Hub with a single click.

Technical specification
Device type: Wireless
Use: Indoor
?ompatibility: Works only with Ajax Hub
Keyboard type: Sensor
Number of buttons: 15
Duress code: Available
Protection against password guessing: Available
Tampering alarm: Available
Arm/disarm status indication: Available
Radio signal power: 20 mW
Communication protocol: Jeweller (868.0-868.6 MHz)
Maximum distance between keyboard and central unit: Up to 1,700 m (5,577 ft) (in open area)
Power supply: 4 AAA batteries
Power supply voltage: 3V
Battery life: Up to 2 years
Battery charge indication: Available
Operating temperature range: From 0°C (+14°F) to +50°C (+122°F)
Operating humidity: Up to 80%
Dimensions: 150x102.5x13.2 mm
Weight: 172 g

Components
Wireless touch keyboard
4 AAA batteries (pre-installed)
Manual
