Hismart

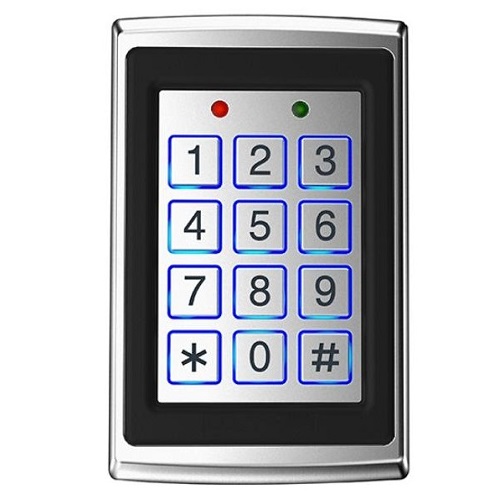

Standalone Access Control Keypad with Mifare Card Reader

41.50 € incl. VAT
In supplier warehouse · 10 pcs. Delivery Time: 5–10 business days

In your cart: 0

Delivery options to:

Latvia
Store pickup Estimated: 27.11.–04.12.
Free
Parcel locker delivery Estimated: 01.12.–08.12.
Free
Courier delivery Estimated: 01.12.–08.12.
from 4.90 €

Compact standalone access control keypad with an integrated Mifare 13.56 MHz proximity card reader. It provides a reliable entry solution supporting PIN codes, cards, or a combination of both.

Key Features:

  • Supports up to 2,000 users.
  • Constructed with a heavy-duty zinc alloy housing and wear-resistant metal buttons.
  • Water and dust-resistant design suitable for both indoor and outdoor use.
  • Operates in standalone, relay toggle, or Wiegand 26/34 reader modes.
  • Backlit numeric keypad and dual-colour LED indicator for easy operation in low-light environments.

Access methodsPIN code, card, PIN code + card
Number of users (cards)2,000
Supported card frequencyMifare 13.56 MHz
Operating voltage12-24 V DC
Relay output loadUp to 3 A
Standby currentUp to 30 mA
Card reading distance2-5 cm
Number of supported doors1
Output protocolWiegand 26/34-bit

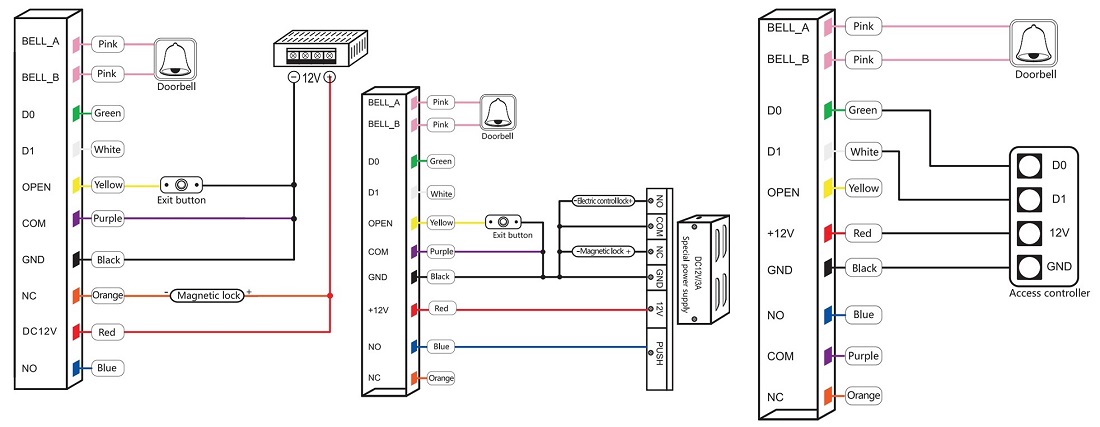

Wire connectionsDC 12-24 V, GND, Wiegand D0/D1, relay output, exit button, doorbell
Adjustable relay time0-99 seconds
Operating temperature-40°C to +60°C
Housing materialZinc alloy
Dimensions20 x 76 x 22 mm
Warranty24 months
EAN9990000993772
Is the keypad suitable for outdoor installation?

Yes, the zinc alloy housing is water and dust-resistant, with an operating temperature range of -40°C to +60°C.
